M40S Subaru BRZ GT300 1/10 Scale Brushless 4WD Car - RTR from Carisma - CIS88968
Version Info: Although fully assembled, decorated, and ready-to-run, this model requires a 7.4V 2S Lipo battery and suitable charger, along with 4 AA alkaline batteries for the transmitter.

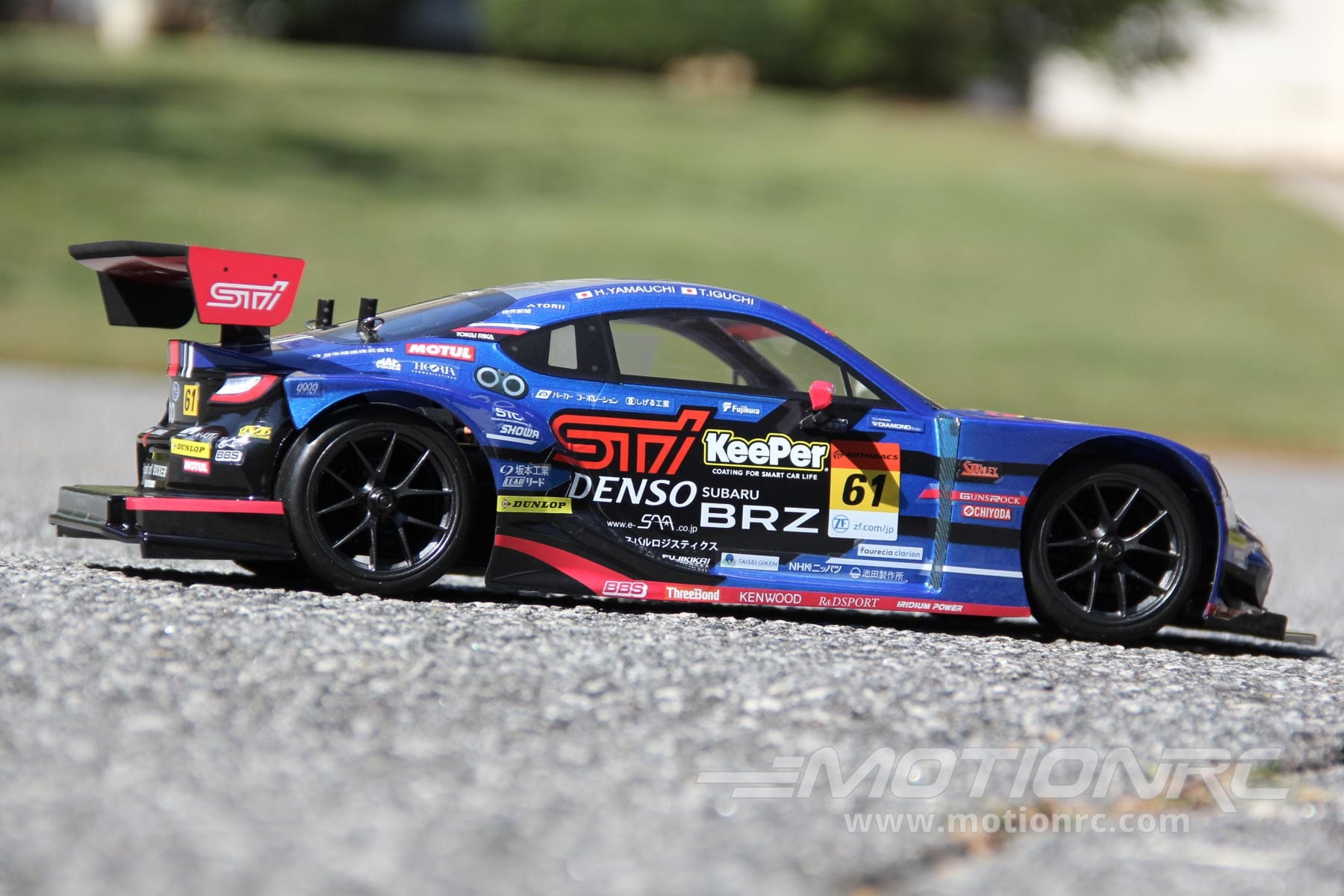

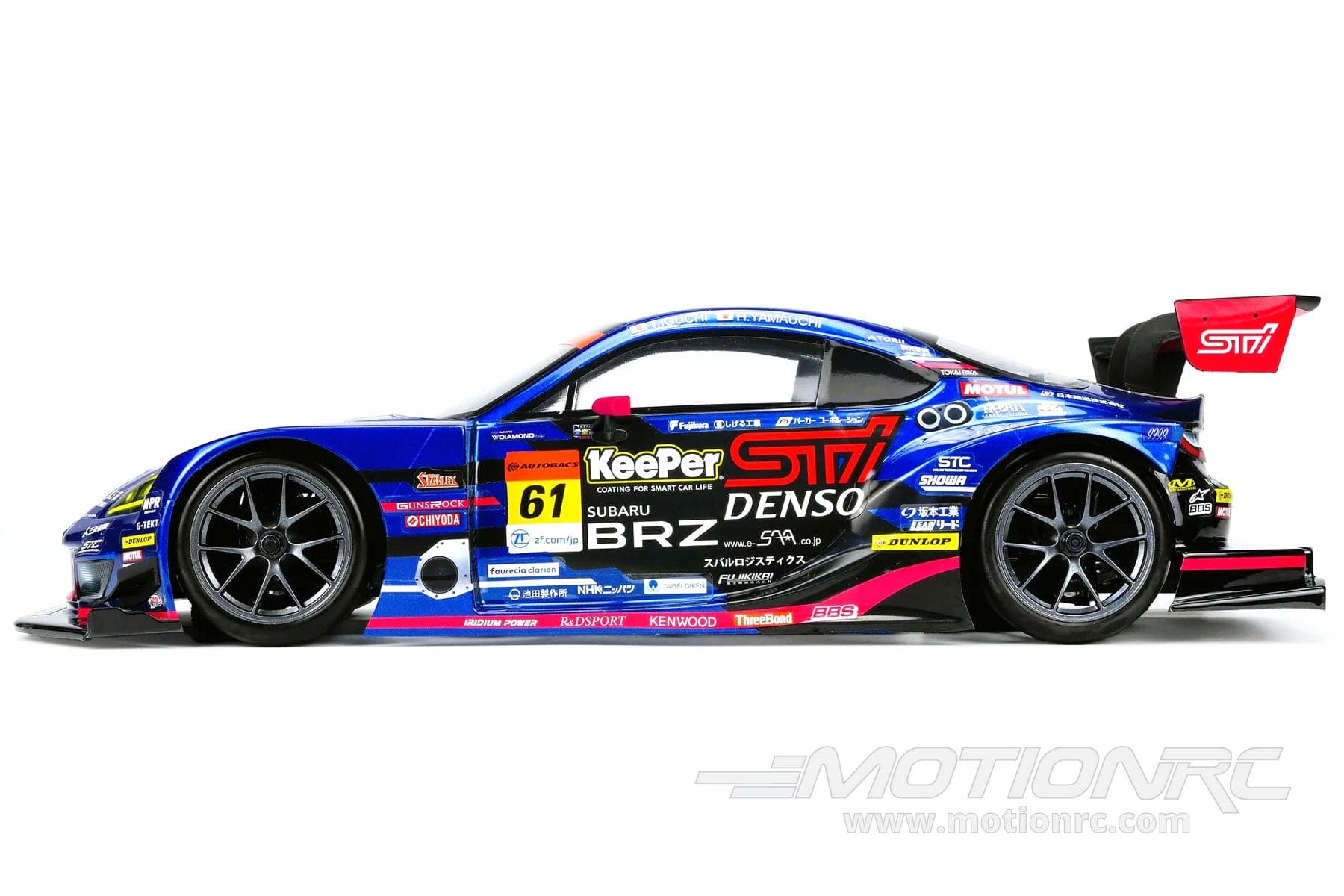

Now available from Motion RC, Carisma’s stunning new 1/10 scale replica of the Subaru BRZ GT300 racer that competes in the Japanese Super GT Series. This impressive 4WD platform is powered by a maintenance-free, 2400kV brushless motor and a versatile, 3S-capable ARC-3 electronic speed control. Although capable of outstanding performance, this model arrives so carefully painted and expertly detailed that you may hesitate to get it dirty and instead consider it as a display model. The officially licensed Subaru BRZ polycarbonate body includes rear wing, diffuser, front splitter, and mirrors as well as all sponsor graphics from the 1:1 scale race car that competed in the 2021 season.

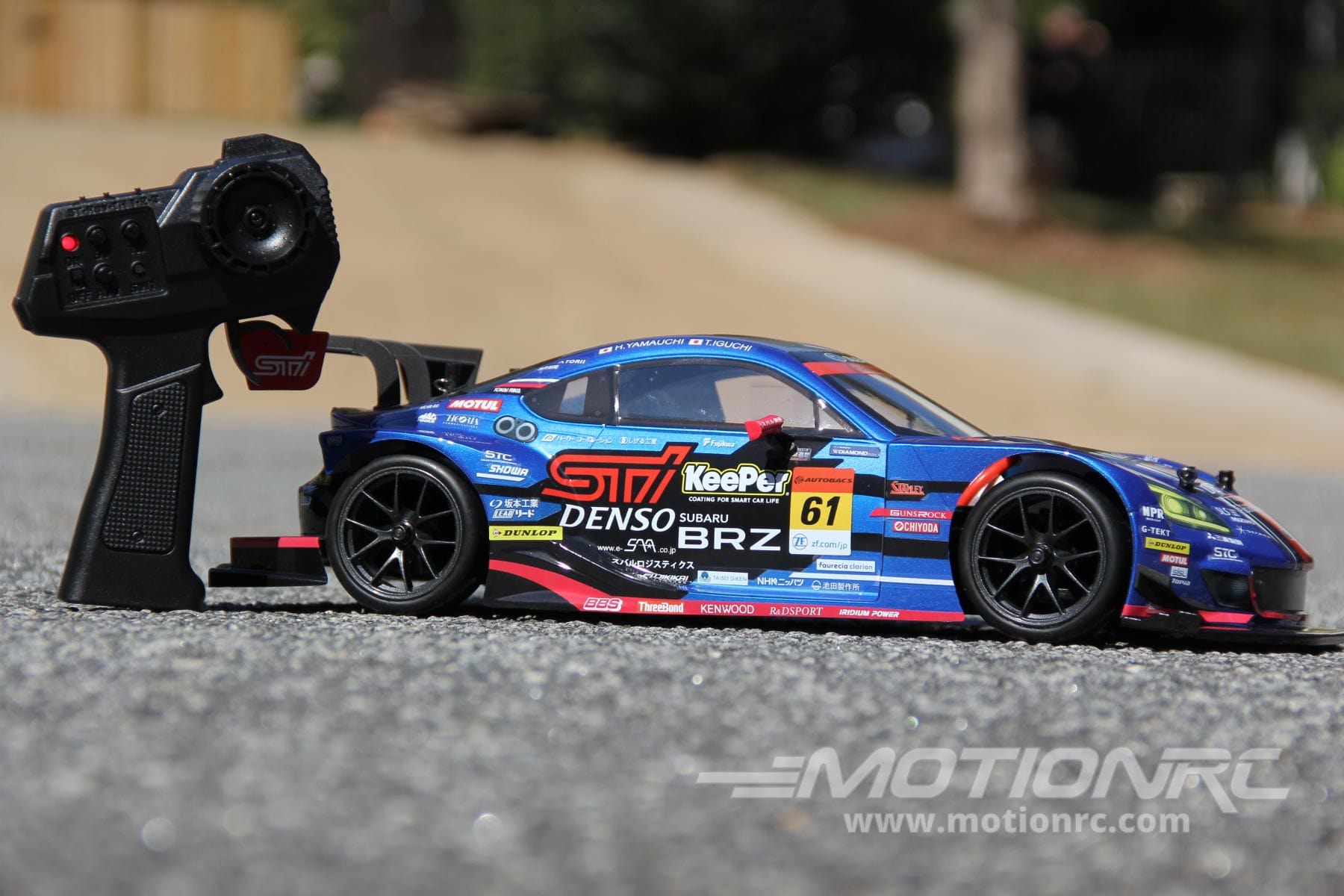

The Carisma CTX-2000 2.4GHz radio system features steering rate adjustment, steering and throttle trims, servo reversing and uses F.H.S.S (Frequency Hopping Spread Spectrum) technology for interference-free control.
Enjoy an impressive driving experience by combining the versatile, on road fun of Carisma’s M40S Subaru BRZ GT300 1/10 Scale Brushless 4WD Car with Motion RC’s industry-leading customer service and product selection for a package that cannot be beat!
Visit the Official Carisma M40S Subaru BRZ GT300 1/10 Scale Brushless 4WD Car Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |

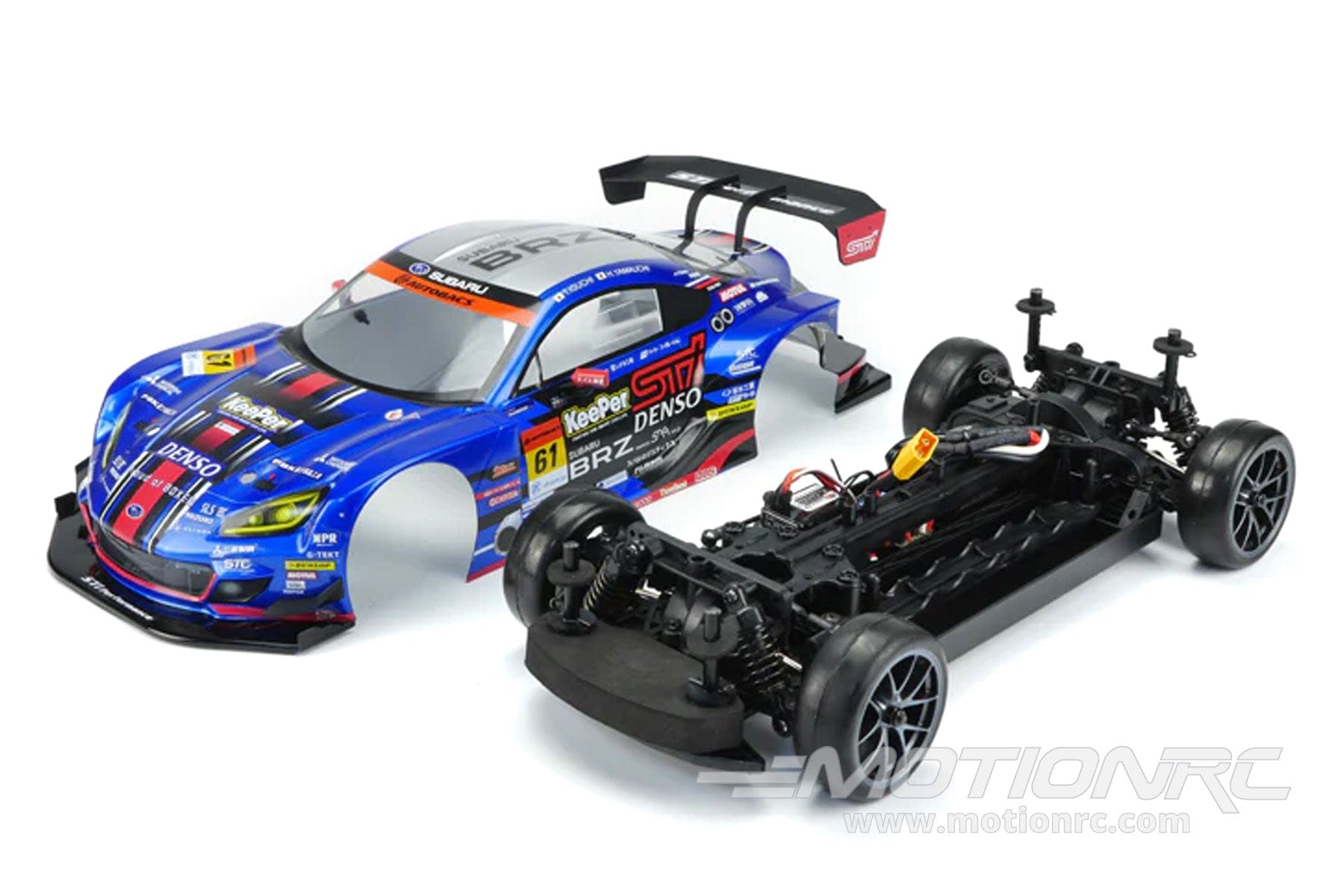

Complete Package The Carisma M40S BRZ arrives assembled, decorated, and ready to run. Install your choice of 2S Lipo or 6-cell NiMH battery power and its race-ready! |
 |

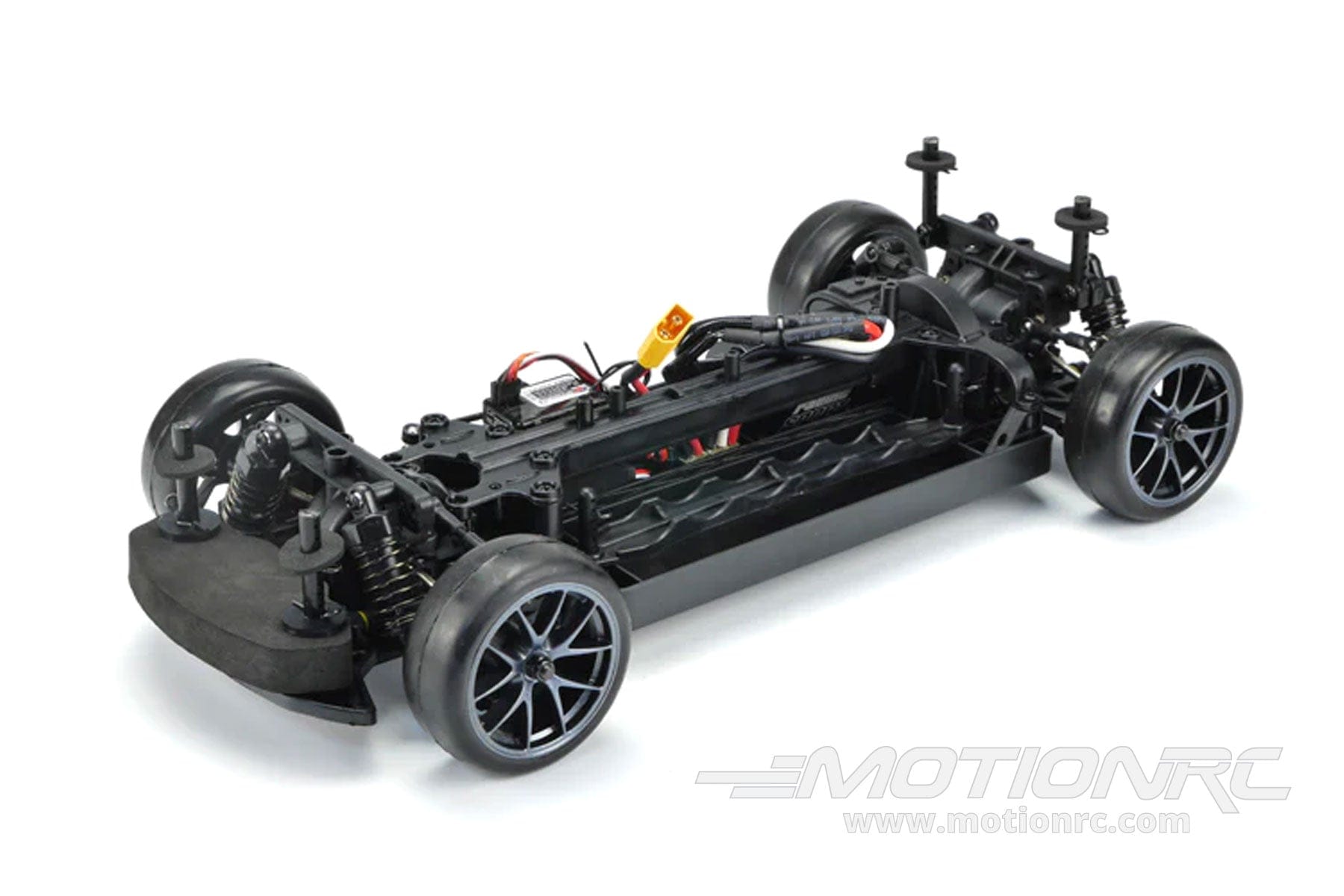

Smooth Operator The smooth underside of the composite chassis allows for minimal ride height without concern for any chassis or suspension component scraping the tarmac. |
 |

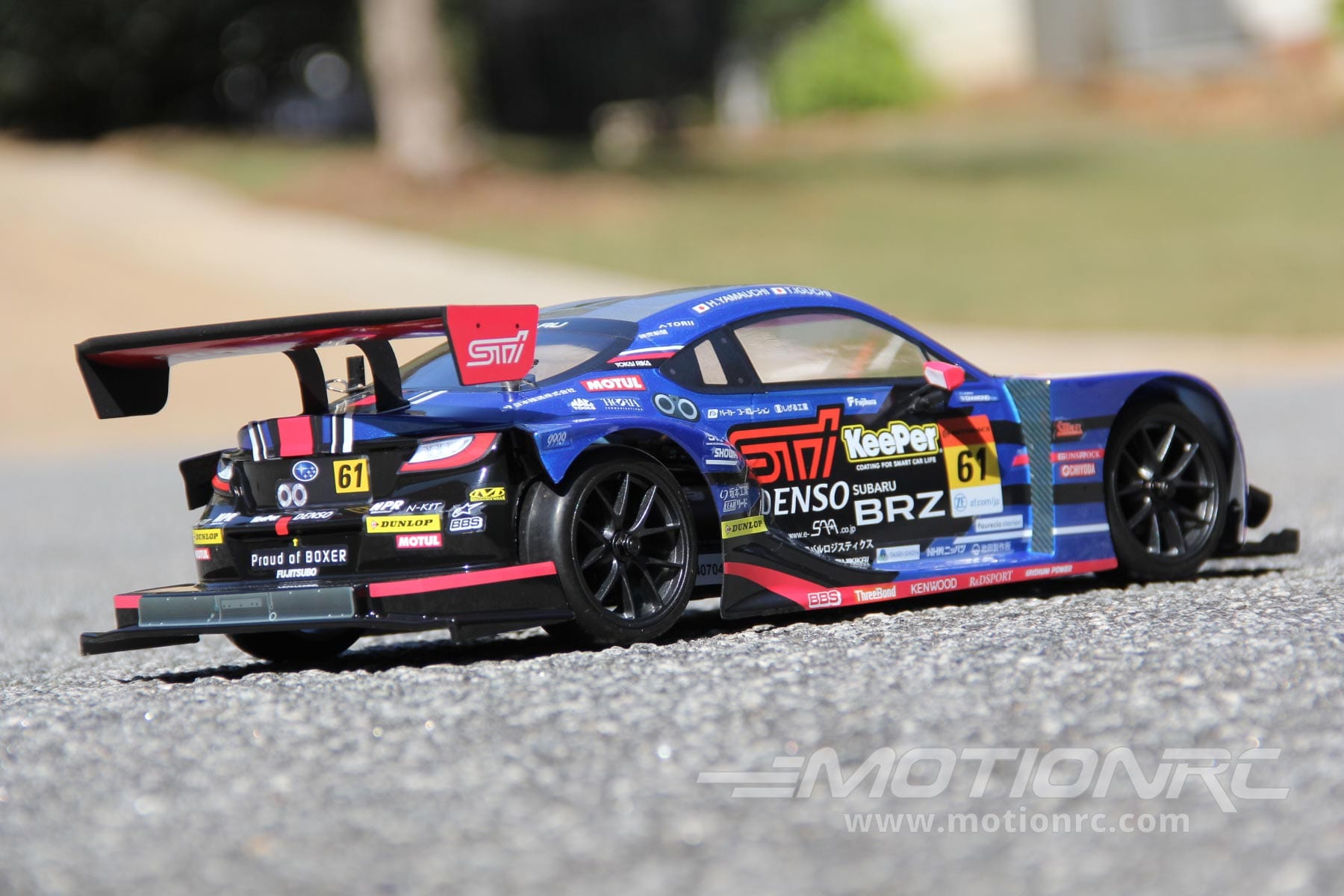

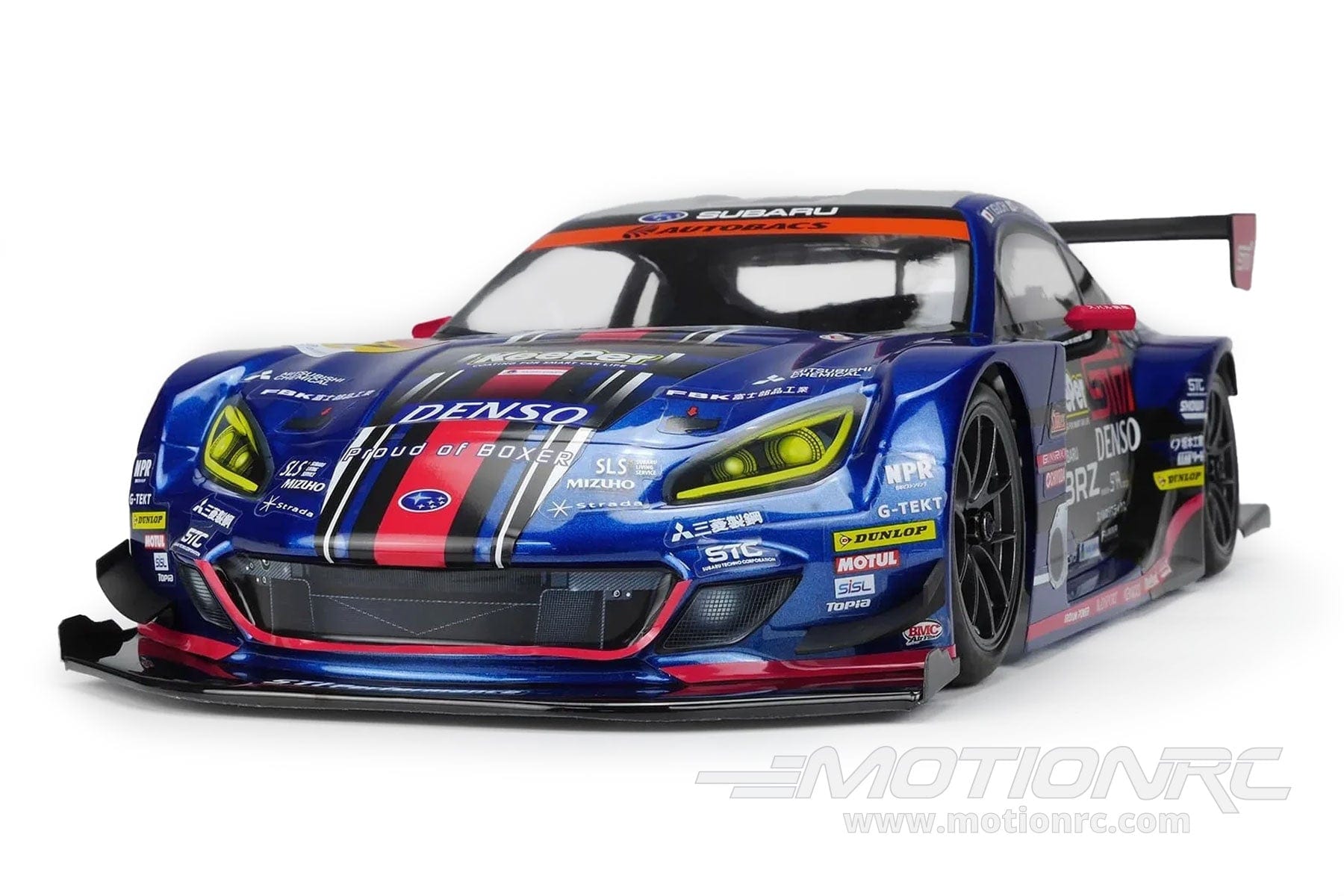

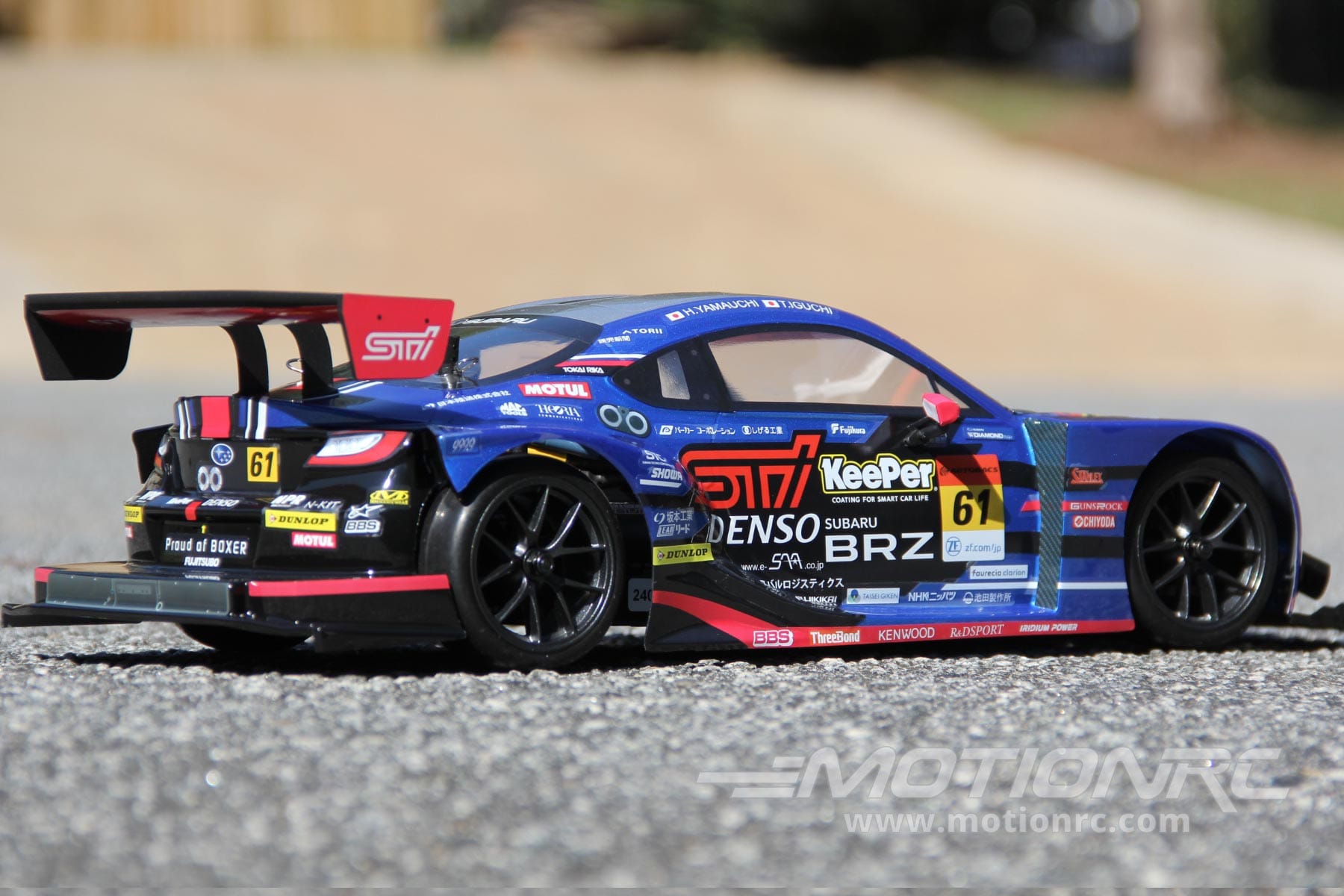

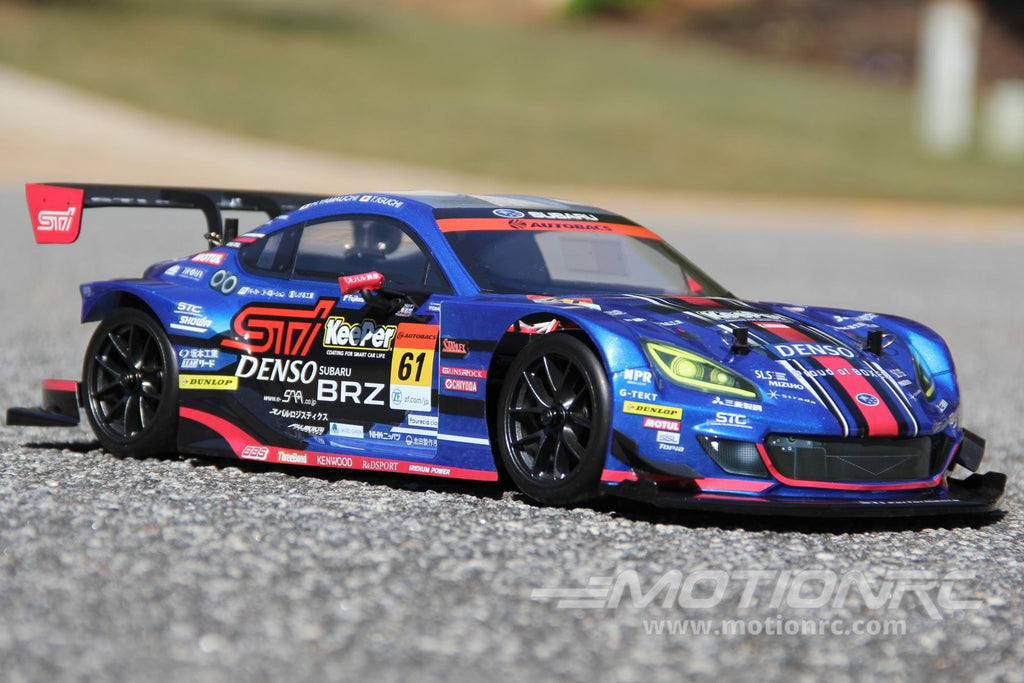

Scale Detail The rear wing and diffuser along with the functional front splitter combine to create a scale masterpiece suitable for a bookshelf or mantle. |
 |
Sealed Drivetrain The M40S platform features a logical, easy-to-maintain equipment layout with sealed diffs and gear covers to eliminate damage from small stones or other debris. |
Features:
- Officially licensed Subaru BRZ body and graphics
- Shaft-driven 4WD System
- Reliable and responsive 2.4GHz radio gear
- 3Kg metal-geared steering servo
- ARC-3 brushless ESC
- Oil-filled, coil-over adjustable composite shocks
- Complete ball bearings
- 2400kV vrushless motor
- F/R gear differentials
Includes:
- Carisma M40S Subaru BRZ GT300 1/10 Scale Brushless 4WD Car - RTR
- Carisma CTX-2000 2.4GHz transmitter
- Instruction manual
- Extra differential gears and ride height adjusters
Requires:
- 7.4V 2S hardcase LiPo with XT60 connector - we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with XT60 Connector
- 2S Lipo charger - select a minimum 2 cell (2S) charger from our Charger Collection
- Four (4) AA size batteries for the radio transmitter – we recommend Admiral NiMH AA Rechargeable Batteries (4 Pack)
Product Specifications:
Model Scale |
1/10 |
Length |
435mm / 17.1in |
Width |
189mm / 7.4in |
Height |
115mm / 4.5in |
Weight (No Battery) |
1550g / 54.6oz |
Wheelbase |
257mm / 10.1in |
Ground Clearance |
7mm / 0.27in |
Body |
Polycarbonate, factory painted and decorated |
Chassis |
Composite |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
60 x 24mm |
Wheel Hex Size |
12mm |
Tire Tread |
Slicks |
Bushing Material |
N/A |
Suspension |
4-wheel independent |
Shock Type |
Oil-filled, coil-over, adjustable |
Transmission |
Direct drive |
Gear Pitch |
MOD 05 |
Internal Gear Ratio |
2.6:1 |
Final Drive Ratio |
9.36:1 |
Pinion |
20T |
Spur Gear |
72T |
Differential |
Grease-filled F/R differentials |
Ball Bearings |
Complete |
Brakes |
Electronic |
Electronic Speed Control |
AARC-3 ESC, 35A with XT60 Connector |
Motor |
2400kV brushless |
Battery |
2-3S with XT60 connector (required) |
Max Battery Dimensions (L x W x H) |
135mm x 50mm x 30mm |
Servos |
Waterproof, metal gear, 3kg |
Radio |
2-channel (included) |
Lights |
No |
Sound |
No |
Water Resistant |
No |
Skill Level |
Beginner |
Assembly Time |
Less than 30 minutes |
Recommended Environment |
Outdoors |
