Electronic Retract with 4.1mm Shaft Type D - ET8104
Click here to view special instructions to prevent jammed retract pins.
Specifications:
- Body material: plastic
- Trunion material: black anodized metal
- Strut diameter: rotating shaft pin is 4.1mm in diameter
This retract is used on the nose gear of the following Freewing aircraft:

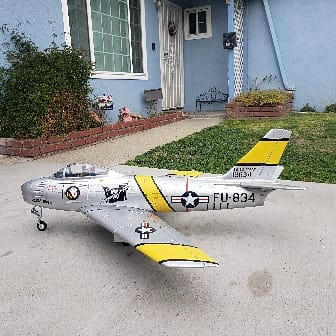

- 80mm EDF F-86
- 80mm EDF A-6
- 80mm EDF Mirage 2000
- 80mm EDF Scorpion
- 80mm EDF F-5
Product Specifications:
Gear Material |
Nylon/ABS |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
1.3 sec @ 90 deg |
Speed (6V) |
1.1 sec @ 90 deg |
Torque (4.8V) |
2.8 kg/cm (39 oz/in) |
Torque (6V) |
3.2 kg/cm (44.5 oz/in) |
Current Draw at Idle (4.8V) |
100mA |
Current Draw at Idle (6.0V) |
130mA |
Maximum Load Current (4.8V) |
900mA |
Maximum Load Current (6.0V) |
1100mA |
Current Draw Operating (No Load) |
10mA |
Dimensions (L x W x H) |
62 x 30 x 44mm |
Weight |
38g (1.34oz) |
Lead Length |
360mm |
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Customer Reviews
- Reviews
Retract
Works perfectly.
F86 80mm Front Retract
perfect replacement for my F86 80mm. the original one seemed to be weak and would work interment
Freewing Electronic Retract 4.1mm shaft
Excellect product, perfect fit , but not strong enough for rough landings i.e. for bad flyers like me.
A4 nose gear
The 4.1 mm shaft is the weak link in these retracts. Over time flying off of grass, this strut support shaft begins to bend backward. It’s easy enough and cheap...read more
F-86 retracts
These gear are the nose gear retract. The only difference between these and the retracts for the main gear is that these come with the stud that the strut mounts...read more
I purchased this to retrofit onto the nose gear of the 70mm BAE Hawk which comes with a weak 3mm strut pin. The mounting ****** on this servo is weak...read more
-
