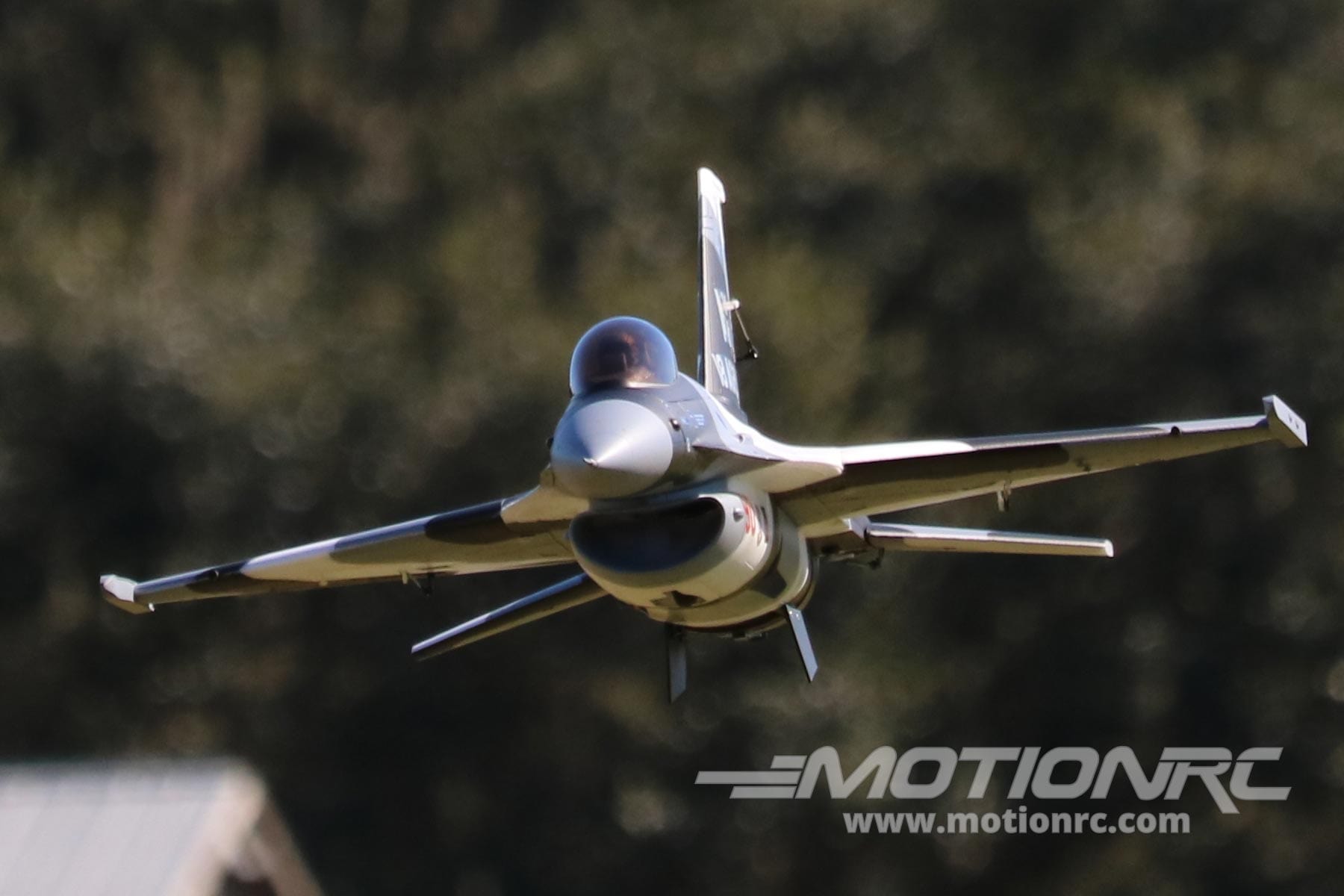

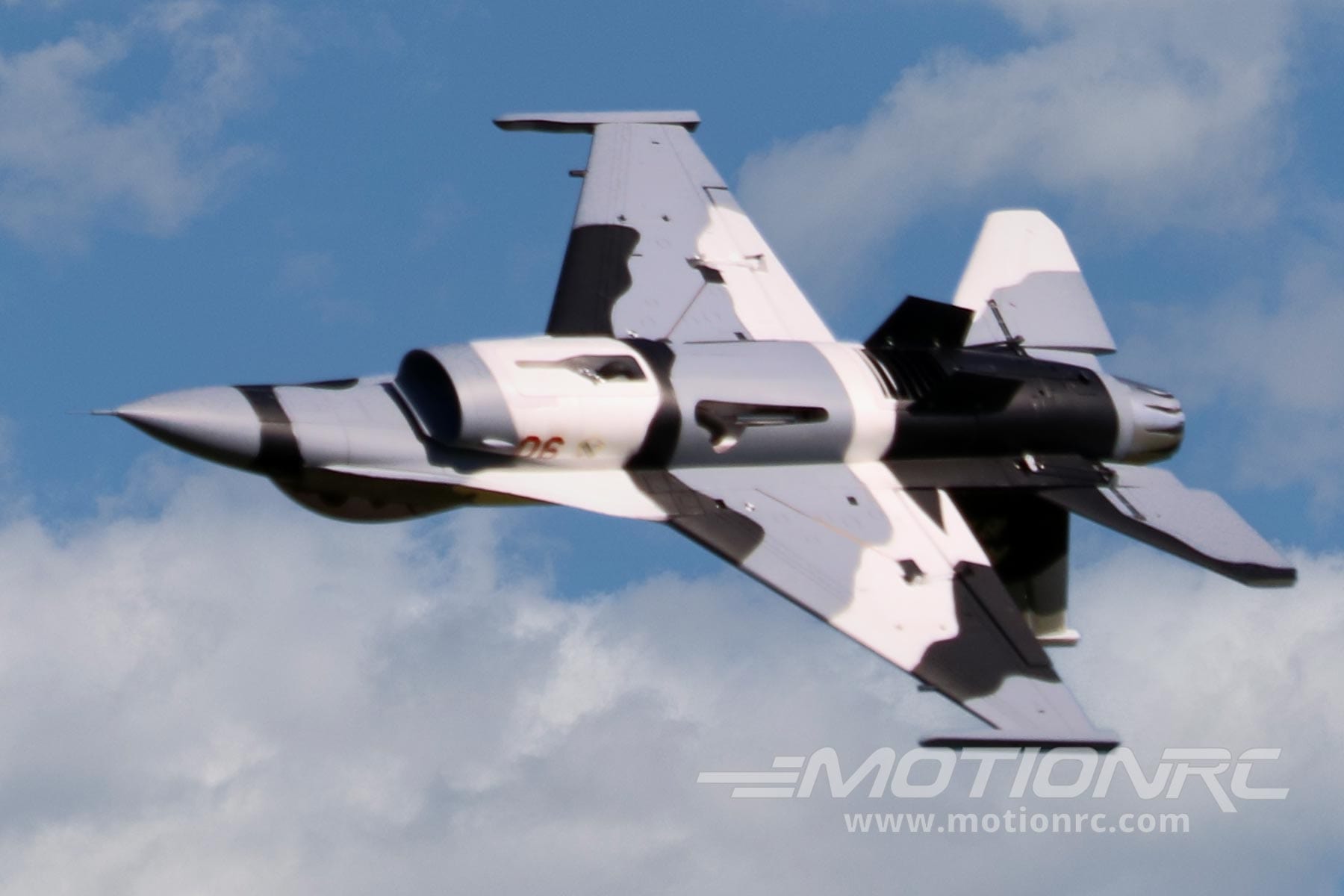

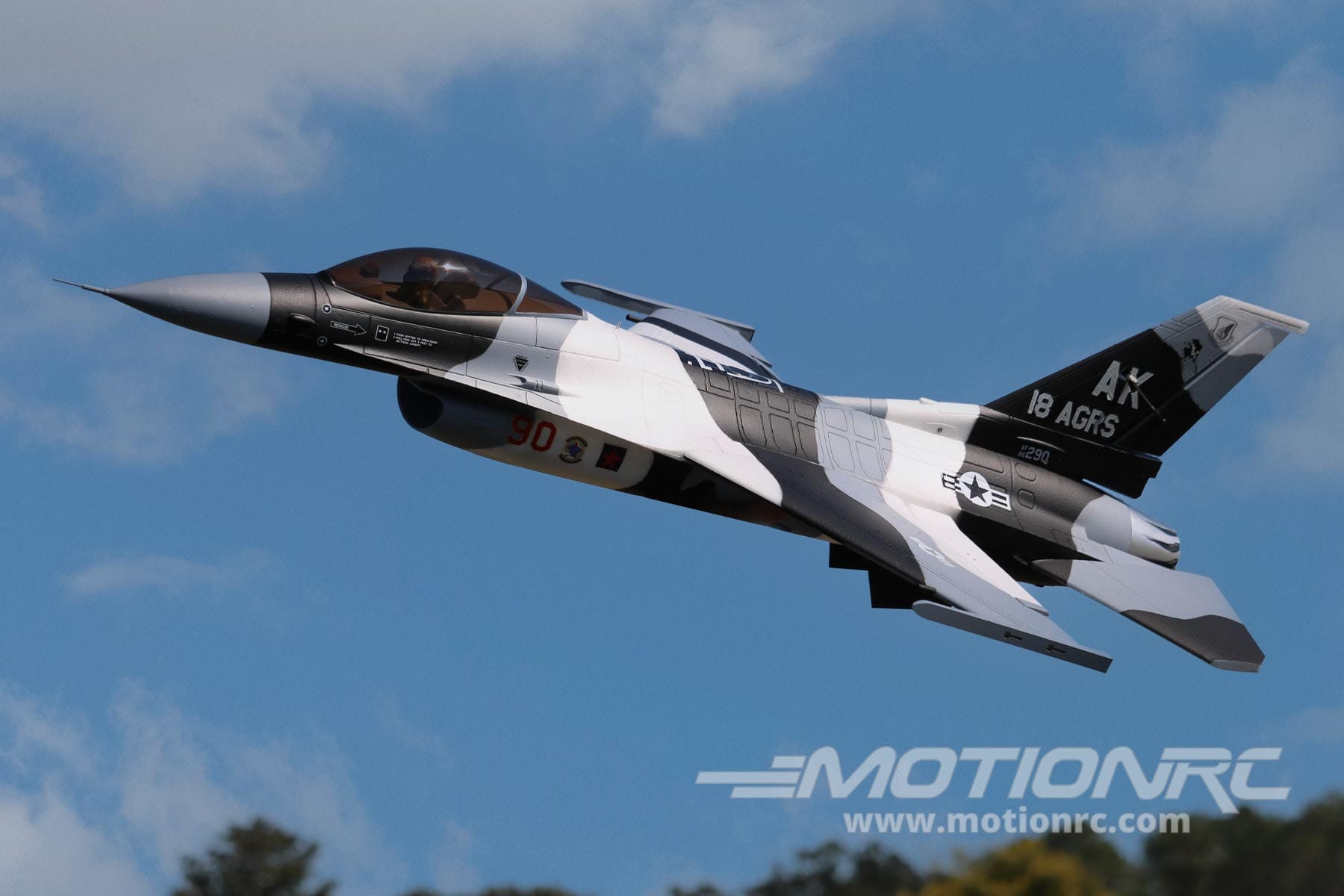

Freewing F-16 V3 Aggressor Arctic Camo High Performance 70mm EDF Jet - (Plug-N-Play) - PNP - FJ21125P
Version Info: This is the High Performance V3 version which comes with a 2957-2210Kv Inrunner motor, 80A ESC thrust reverse function, upgraded Shock-Absorbing struts, 70mm 12 blade EDF and several other upgrades (see features below).
The F-16C “Fighting Falcon” is a single-engine multi-role fighter aircraft originally developed for the United States Air Force (USAF). Designed as an air superiority day fighter, the aircraft evolved into a successful all-weather multirole platform. The F-16C features an internal M61 Vulcan cannon and multiple locations for mounting weapons and other mission equipment. Operating in nearly 30 countries to this day, the F-16 has distinguished its place in aviation history.
Freewing has modeled this brilliant aircraft in EPO foam with a 70mm electric ducted fan (EDF) power system. With a 1306mm length and 878mm wingspan, this 1/12 scale flying replica including many exciting features! An accurate scale outline with sharp surface details and panel lines make this model stand out at your airfield. Removable main wings and a magnetic nose cone make transport very convenient. The cockpit battery bay cover is secured with a sliding latch to prevent separation during flight, and the entire aircraft is reinforced with strategic placement of carbon tubes to withstand vigorous flying maneuvers. A control board helps to consolidate all the wiring for a clean battery bay. For pilots who want an extra “scale” touch, an optional ordnance set is sold separately, containing two AIM-120 AMRAAM and two AGM-88 HARM missiles.
The Freewing 70mm F-16C V3 features electric retractable landing gear for lower drag and better scale appearance during flight. The aircraft is designed for stability, strong vertical climbing performance, and short takeoff distance. The aircraft can also maintain a high alpha of 30 degrees to demonstrate its superior low speed stability. We recommend the 6S Pro version for skilled intermediate or advanced pilots with experience flying at least two EDFs.

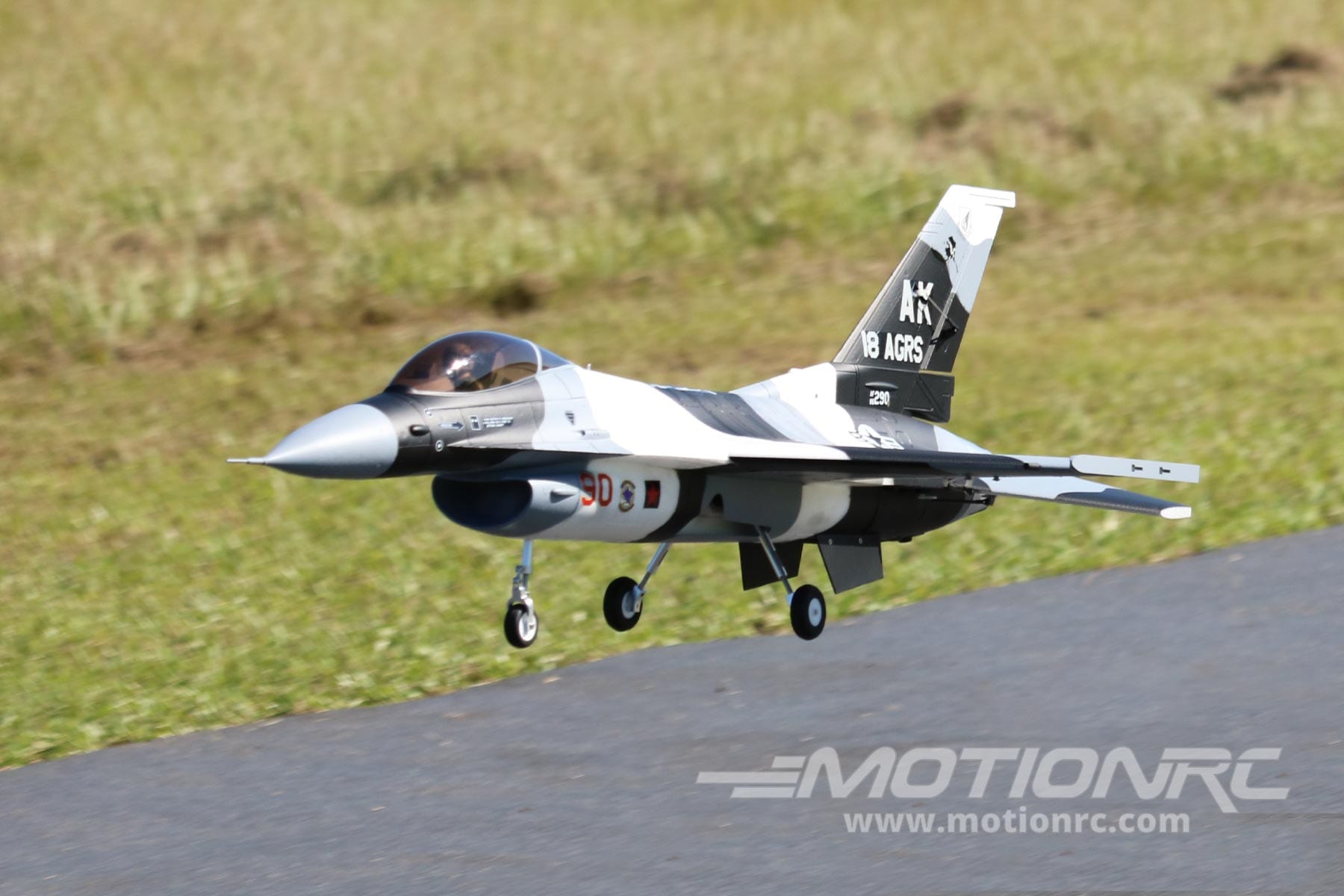

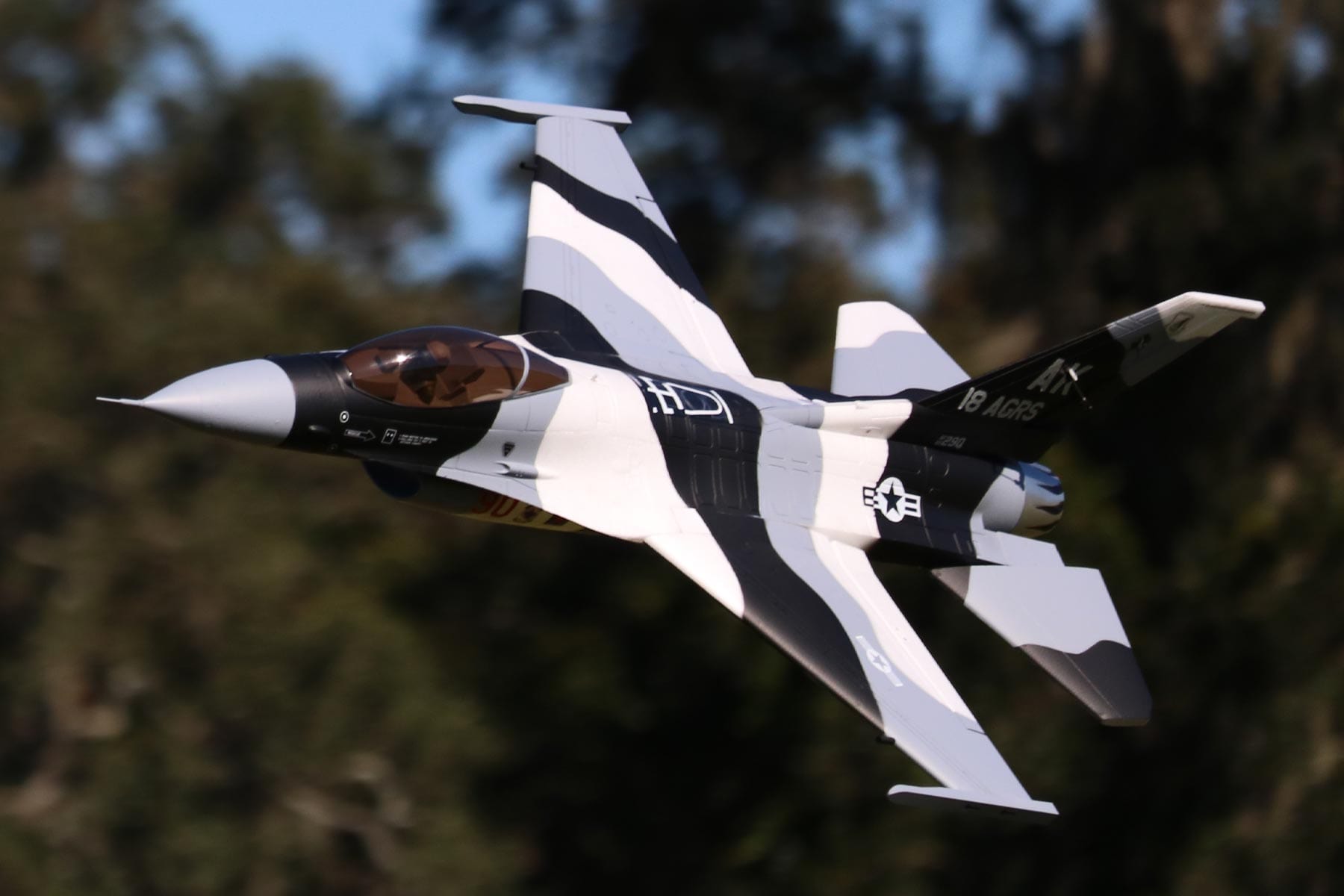

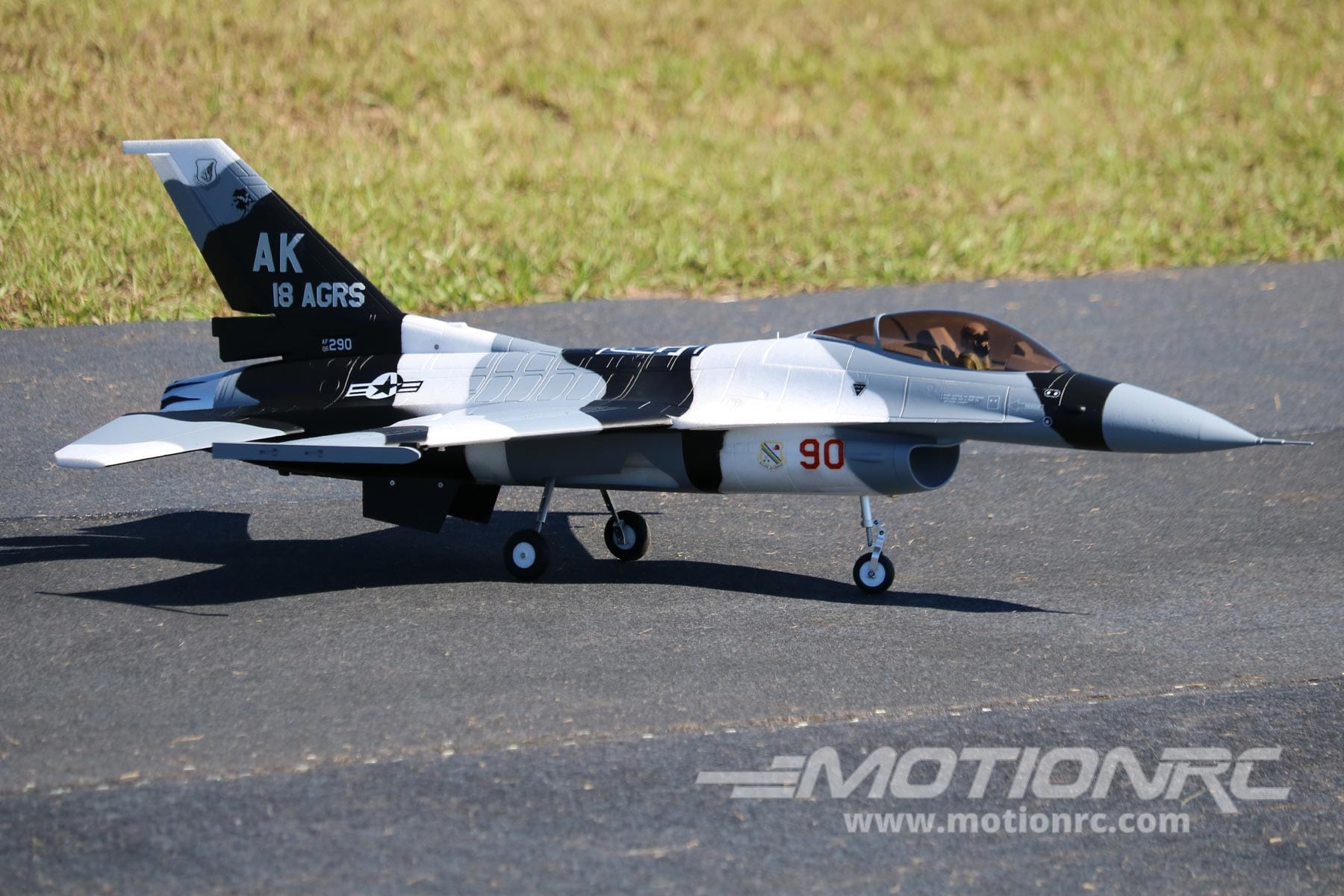

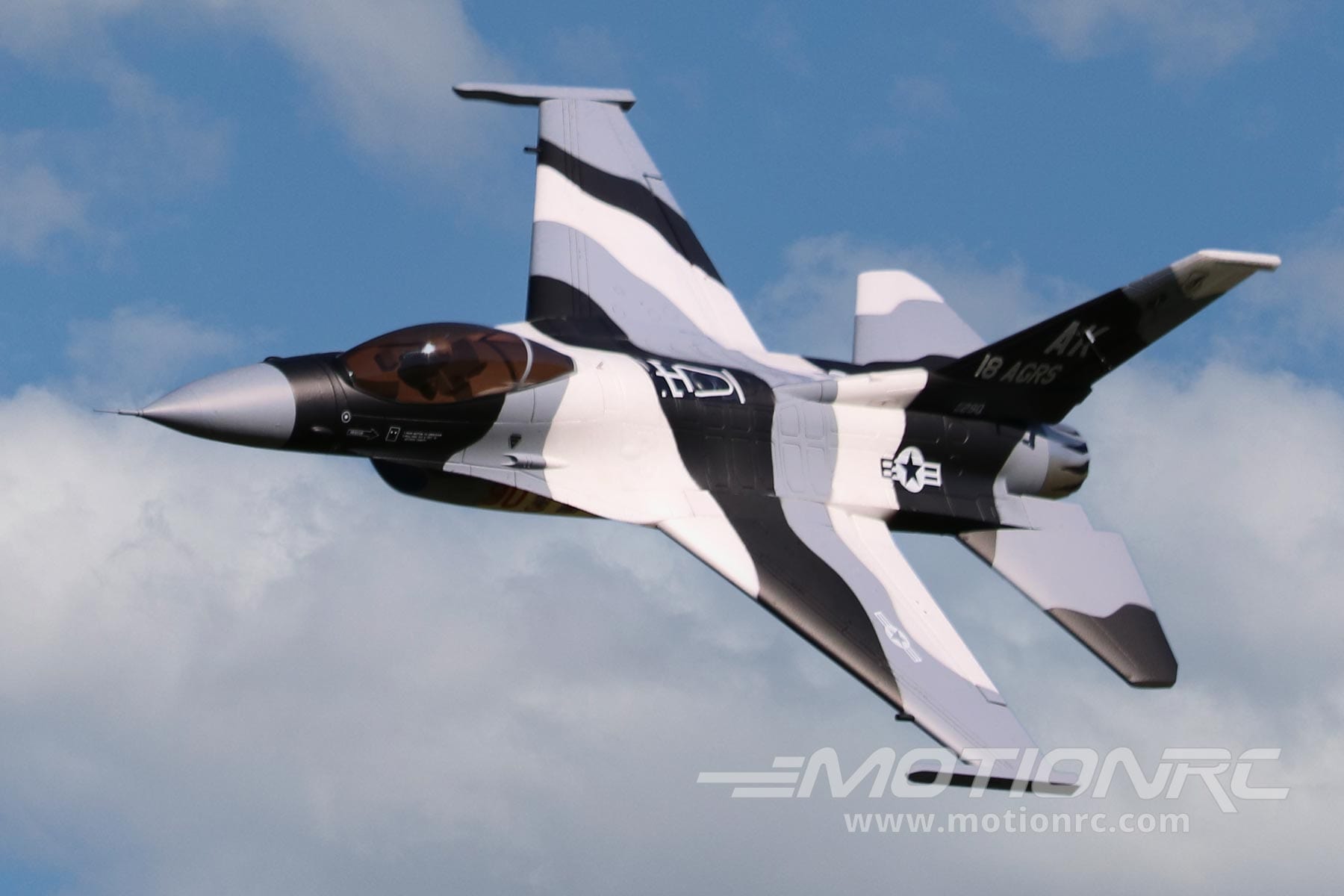

We are proud to feature this version of the F-16 70mm V3 in the popular Aggressor Arctic camo colors from the 354th Aggressor Squadron. Visit www.callie-graphics.com to purchase other optional decal sets for this model.
Visit the Official Freewing 70mm F-16 V2 Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |

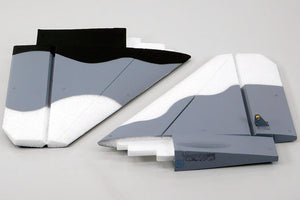

Horizontal Stabilizer Upgraded to Full Flying Stab This Freewing V3 F-16 now comes with a full flying stabilizer instead of standard elevators for more pitch authority. Master the High Alpha maneuver! |
 |
Hardware Updated to Ball Links Now the hardware is updated with ball links for a more confident, secure connection to each control surface. |
 |
Updated Weapon Mounting System The F-16's main wing weapon mounting system was ugraded from glue to guide rails for easy removal and installation. |
 |
Now With Thrust Reverse The Freewing F-16 V3 comes with an updated 80 amp ESC with thrust reversing functionality to slow and decrease your landing roll distance. |
Features:
- NEW! Horizontal stabilizer has been upgraded to a full flying stab
- NEW! Hardware all updated to ball links
- NEW! Main wing weapon mounting system changed from glue to guide rails for easy removal and installation
- NEW! Vertical stabilizer now uses screws for easy assembly
- NEW! Improved nose landing gear mount
- NEW! 80A ESC with Thrust Reversing
- Model officially licensed by Lockheed Martin
- High performance 12-blade EDF with 2957-2210Kv In-Runner Motor
- Upgraded shock-absorbing struts
- Popular Aggressor Arctic camo from the 354th Aggressor Squadron
- Durable EPO Foam and Reinforced Construction
- Realistic Shape and Detailing
- Electric Retractable Landing Gear
- Removable Wings and Magnetic Nose Cone for Easy Transport
- Minimal Assembly
- Optional Weapon Set (Sold Separately)
Includes:
- Freewing F-16 Arctic Camo V3 6S-Pro High Performance 70mm EDF Jet - PNP
Requires:
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 3600-4000 mAh LiPo battery with EC5 connector - we recommend the Admiral Pro 4000mAh 6S 22.2V 60C LiPo Battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Wingspan |
878mm / 34.57in |
Length |
1306mm / 51.4in |
Flying Weight |
2000g (approx) |
CG (Center of Gravity) |
90mm / 3.5" from the leading edge of the wing at the root |
Power System |
2957-2210Kv Brushless In-Runner Motor |
Electronic Speed Control |
80 Amp with EC5 Connector |
Propeller / EDF |
70mm 12-Blade |

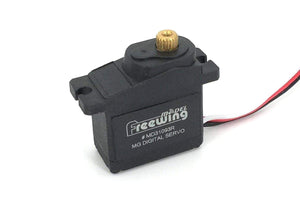

Servos |
|
Landing Gear |
Retractable |
Required Battery |
6 Cell 22.2V 4000mAh Li-Po battery with EC5 Connector |
Required Radio |
6+ CH 2.4GHz Full Range Transmitter |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
No |
Lights |
No |
Hinge Type |
Foam |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
2+ Hours |
Recommended Environment |
Outdoor |
Videos
Product Videos
Spare Parts

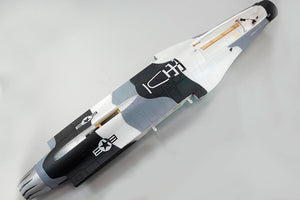

Product Spare Parts
1 - 32 of 47 results
Upgrades
Product Upgrades
RunCam 6 Action Camera 4K/30FPS with Lens Protection, ND Filter, and SD Card
SKU: RC-RUNCAM6-4K-ND128G
€14999
1 - 12 of 12 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- Freewing F-16 70mm V3 Instruction Manual
- Freewing ESC Programming Manual

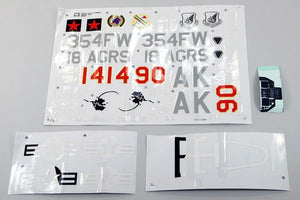

- Freewing F-16 70mm V3 Gray Decal Layout Sheet
If you need any additional assistance, please visit the Motion RC Help Center
Customer Reviews
- Reviews
Great plane id Definitely recommend this as a first jet. Even so, you can still do a lot of maneuvers, and it's very fun.
Not a bad plane
It's a nice looking plain and all but the nose gear hung up on the second flight not much more to say what happened to the plane if that parts...read more
Freewing 70mm F-16 in Artic Camo
The new Freewing 70mm F-16 went together quickly. She flew great on her maiden with a 6s Admiral 4000 pushed rearward to give her as close to a neutral balance...read more
Amazing jet!!!
This key was done right. Looks amazing!!! Retracts stick some. But looks and sounds amazing!!!
Super cool RC Fighter Jet
This plane flies awesome! It is fast and furieus! It looks like the real thing!
Plane flies Gr8 but
Plane flies Gr8 but, couple maybe design flaws. The nose retract will go out. Only a matter of time, it's maybe too small or idk, but I've had 5, 2...read more
-
