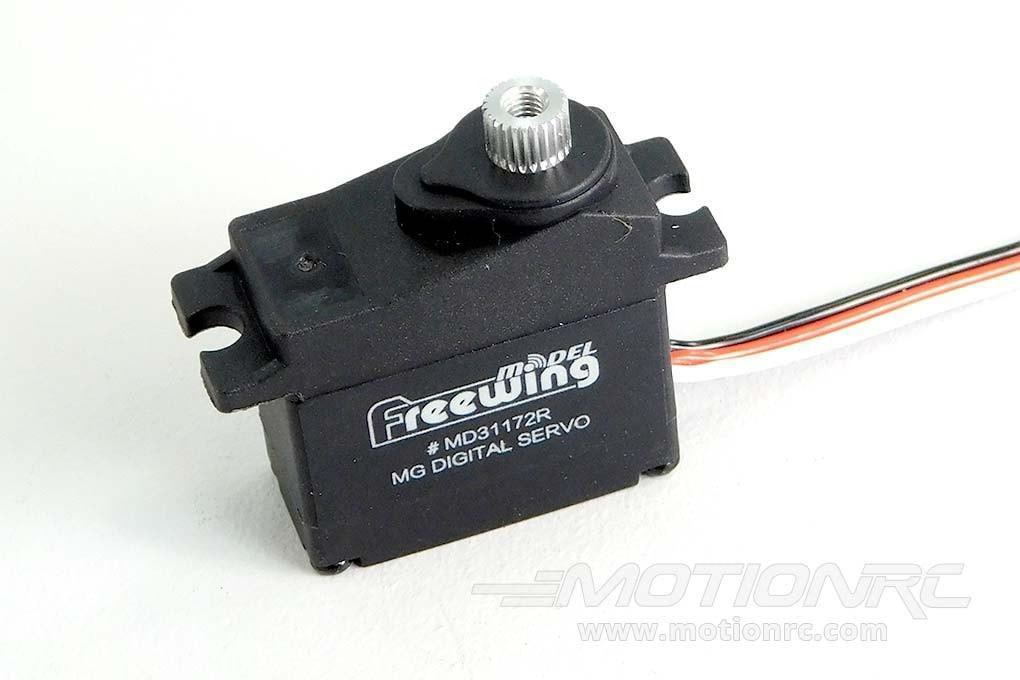

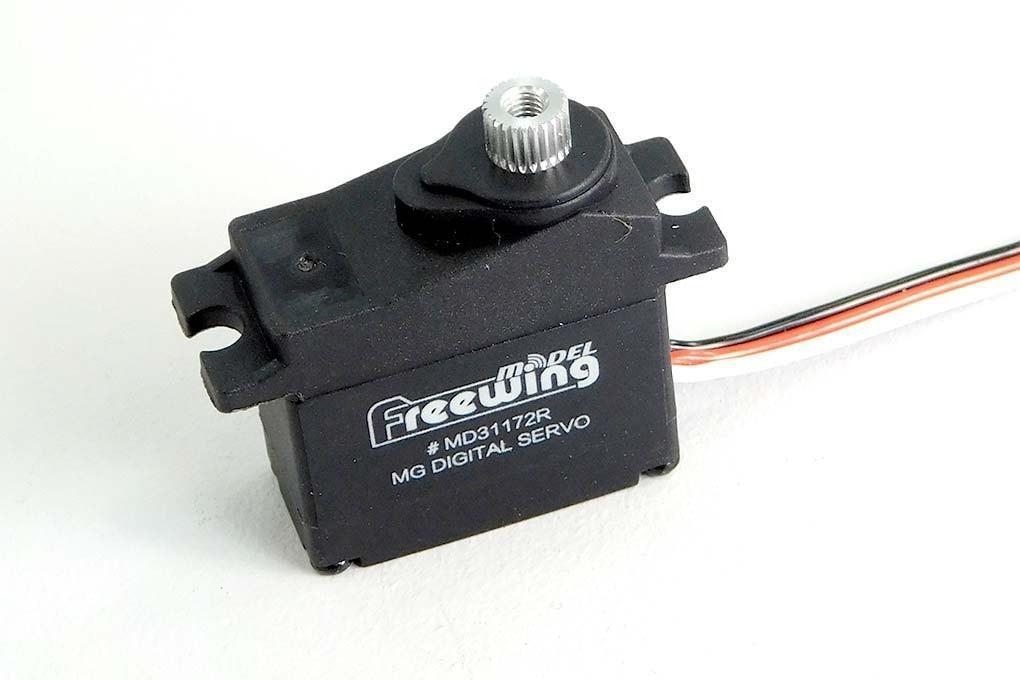

Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead MD31172R-150
Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead MD31172R-150
Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead MD31172R-150
Load image into Gallery viewer, Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead MD31172R-150
Load image into Gallery viewer, Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead MD31172R-150
Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead MD31172R-150
SKU: MD31172R-150

Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead

€1419 (VAT inc.)
€1419
€000
(Save €-14.19)
Sold out

Select Product Format

Read more
Out of stock
Only 0 left, Order soon!
Out of stock
Notify me when back in stock

Overview

Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead - MD31172R-150

This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).

Features:

  • Lightweight, efficient high torque digital metal gear reverse servo perfect for mid-sized to large EDF jets

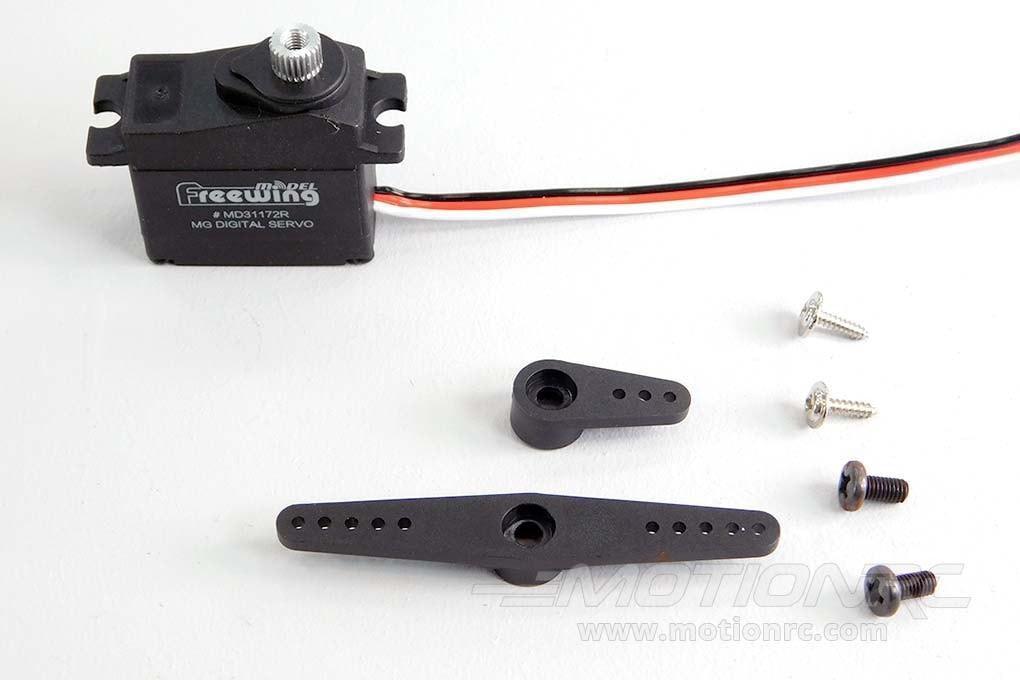

Includes:

  • Freewing 17g Digital Metal Gear Reverse Servo with 150mm (5.9") Lead
  • 4 mounting screws
  • 2 servo horns
Servo Measurement Key

Product Specifications:

Servo Class

17g

Servo Type

Digital

Gear Material

Metal

Direction

Reverse

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.14 sec @ 60 deg

Speed (6V)

0.13 sec @ 60 deg

Torque (4.8V)

2.5 kg/cm (34.71 oz/in)

Torque (6V)

3.0 kg/cm (41.66 oz/in)

Current Draw at Idle

20mA

Current Draw Operating (No Load)

120mA

Dimensions (L x W x H)

28.5 x 13.5 x 30mm

Weight

20g (.70oz)

Lead Length

150mm
