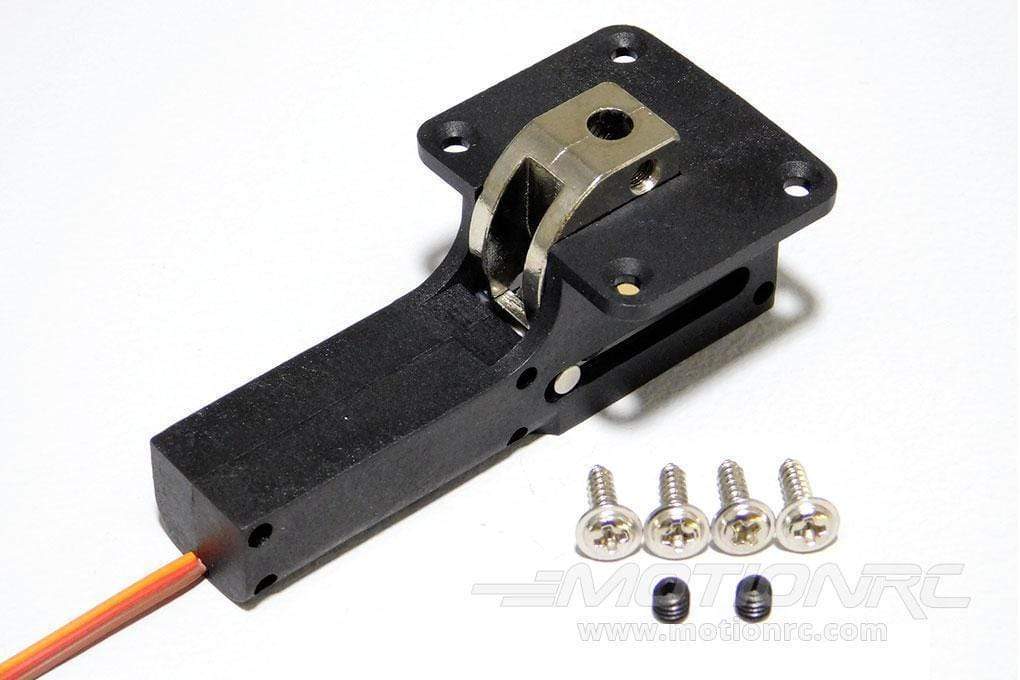

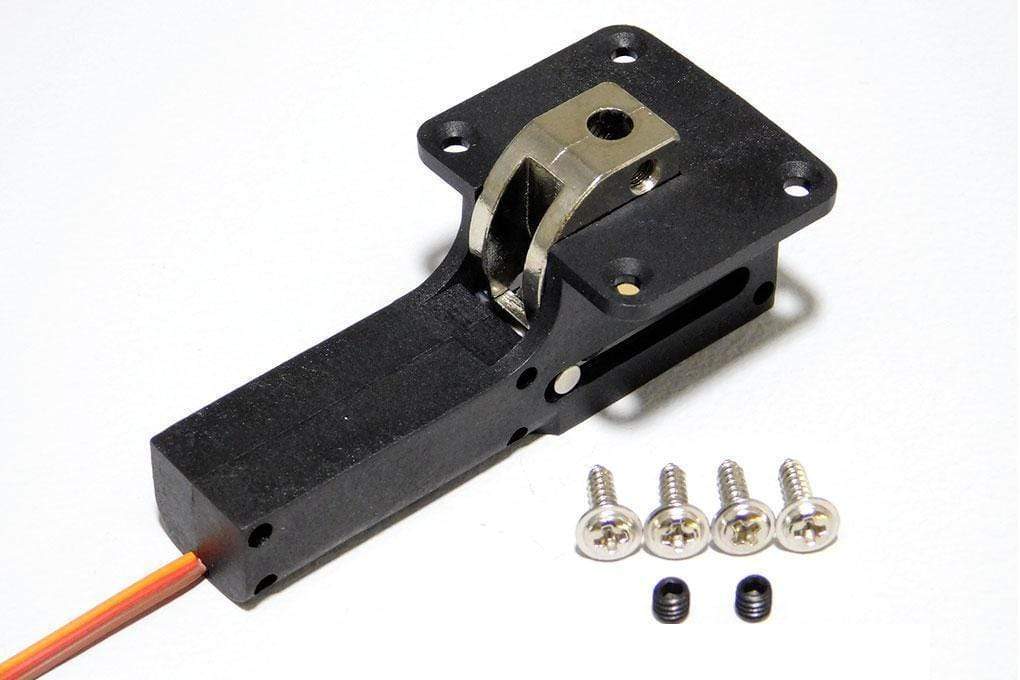

Freewing Electronic Main Retract for 5.1mm Diameter Shafts - Type C E841

SKU: E841

Freewing Electronic Main Retract for 5.1mm Diameter Shafts - Type C

Normaler Preis: ^€22¹⁹ (VAT inc.)
Sonderpreis: ^€22¹⁹
Normaler Preis: ^€0⁰⁰; (Save €-22.19)
Einzelpreis: pro

In stock

Die Menge muss 1 oder mehr sein

Overview
Q&A

Electronic Retract for 5.1mm Diameter Shafts - Type C from Freewing - E841

For the main gear of the following FlightLine RC and Freewing aircraft:

Freewing 70mm AL37 Airliner
1600mm F7F
1600mm Spitfire
Freewing 90mm F-4D Phantom II
Freewing 90mm F/A-18C Hornet
Freewing 80mm T-33

Product Specifications:

Gear Material	Nylon/ABS
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	3.5 sec @ 90 deg
Speed (6V)	3.2 sec @ 90 deg
Torque (4.8V)	13 kg/cm (459 oz/in)
Torque (6V)	15.5 kg/cm (547 oz/in)
Current Draw at Idle (4.8V)	130mA
Current Draw at Idle (6.0V)	150mA
Maximum Load Current (4.8V)	1900mA
Maximum Load Current (6.0V)	2300mA
Current Draw Operating (No Load)	10mA
Dimensions (L x W x H)	75.5 x 38 x 32.3mm
Weight	54g (2.08oz)
Lead Length	360mm
