Freewing Electronic Retract with 4.1mm Shaft - Type D ET8104

SKU: ET8104

Freewing Electronic Retract with 4.1mm Shaft - Type D

Normaler Preis: ^€17³⁹ (VAT inc.)
Sonderpreis: ^€17³⁹
Normaler Preis: ^€0⁰⁰; (Save €-17.39)
Einzelpreis: pro

Out of stock

Die Menge muss 1 oder mehr sein

Notify me when back in stock

Overview
Q&A

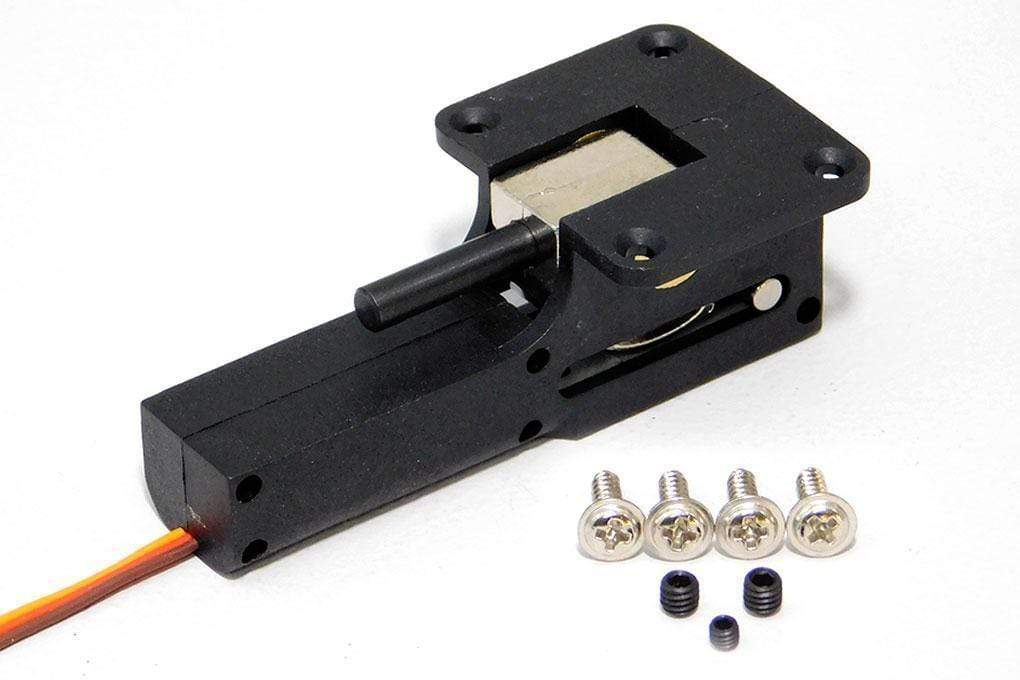

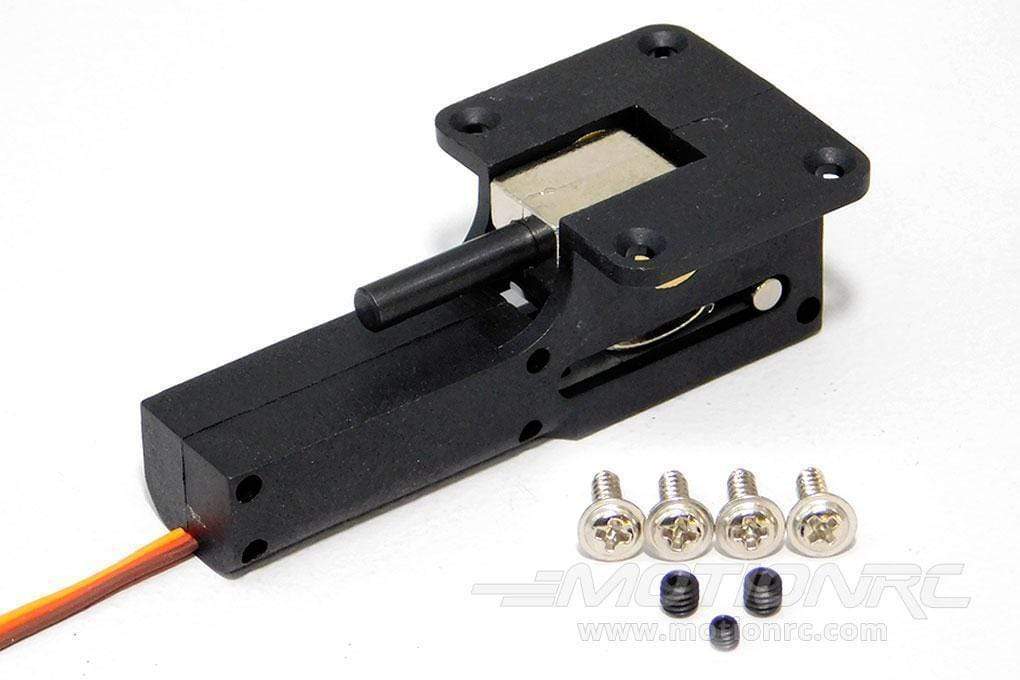

Electronic Retract with 4.1mm Shaft Type D - ET8104

Click here to view special instructions to prevent jammed retract pins.

Specifications:

Body material: plastic
Trunion material: black anodized metal
Strut diameter: rotating shaft pin is 4.1mm in diameter

This retract is used on the nose gear of the following Freewing aircraft:

80mm EDF F-86
80mm EDF A-6
80mm EDF Mirage 2000
80mm EDF Scorpion
80mm EDF F-5

Product Specifications:

Gear Material	Nylon/ABS
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	1.3 sec @ 90 deg
Speed (6V)	1.1 sec @ 90 deg
Torque (4.8V)	2.8 kg/cm (39 oz/in)
Torque (6V)	3.2 kg/cm (44.5 oz/in)
Current Draw at Idle (4.8V)	100mA
Current Draw at Idle (6.0V)	130mA
Maximum Load Current (4.8V)	900mA
Maximum Load Current (6.0V)	1100mA
Current Draw Operating (No Load)	10mA
Dimensions (L x W x H)	62 x 30 x 44mm
Weight	38g (1.34oz)
Lead Length	360mm
