Freewing Nose Gear Retract with Strut - Type E ET8105

SKU: ET8105

Freewing Nose Gear Retract with Strut - Type E

Normaler Preis: ^€20⁸⁹ (VAT inc.)
Sonderpreis: ^€20⁸⁹
Normaler Preis: ^€0⁰⁰; (Save €-20.89)
Einzelpreis: pro

In stock

Only 6 left, Order soon!

Die Menge muss 1 oder mehr sein

Overview
Q&A

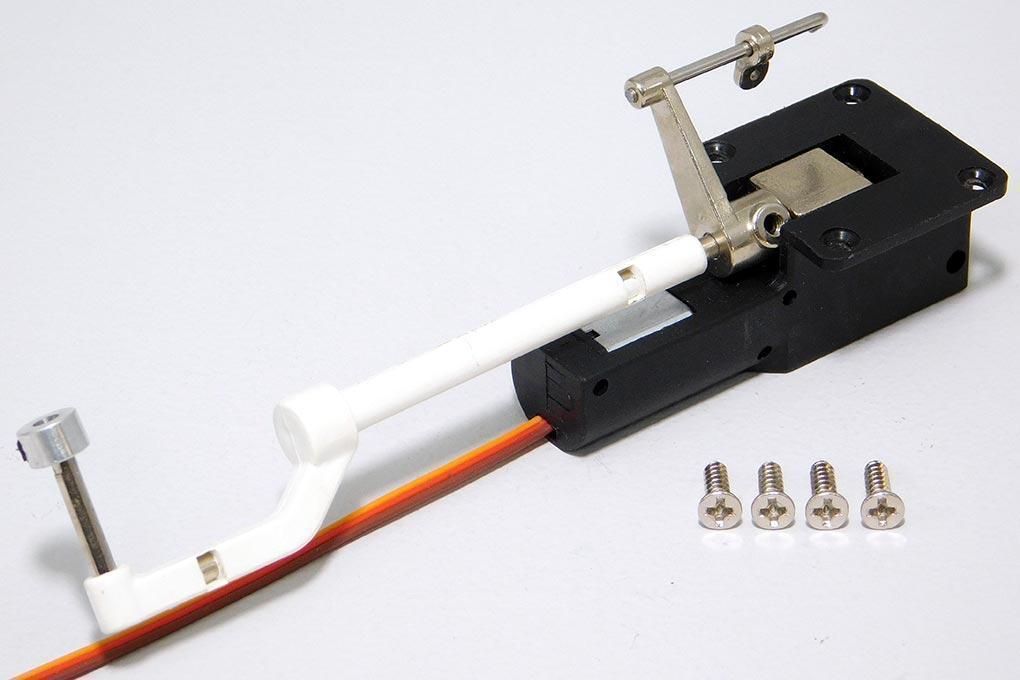

Freewing Nose Gear Electronic Retract with Strut - Type E - ET8105

This is the nose gear electronic retract for the following Freewing planes

70mm F-104
70mm F-16

Product Specifications:

Gear Material	Nylon/ABS
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	1.3 sec @ 90 deg
Speed (6V)	1.1 sec @ 90 deg
Torque (4.8V)	2.8 kg/cm (39 oz/in)
Torque (6V)	3.2 kg/cm (44.5 oz/in)
Current Draw at Idle (4.8V)	100mA
Current Draw at Idle (6.0V)	130mA
Maximum Load Current (4.8V)	900mA
Maximum Load Current (6.0V)	1100mA
Current Draw Operating (No Load)	10mA
Dimensions (L x W x H)	62 x 30 x 44mm
Weight	38g (1.34oz)
Lead Length	360mm
