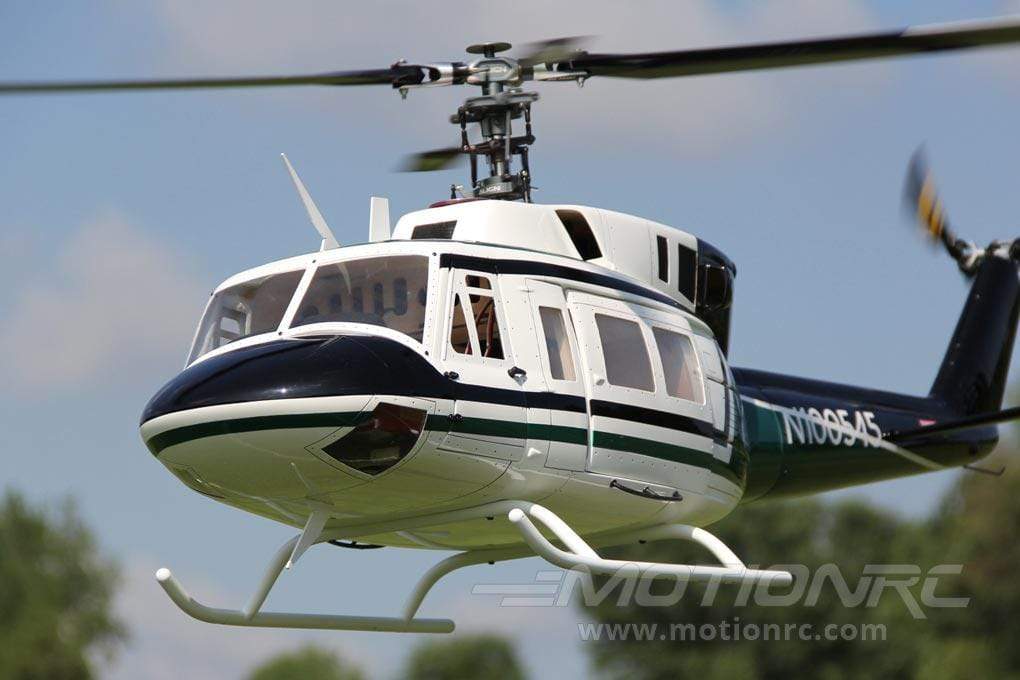

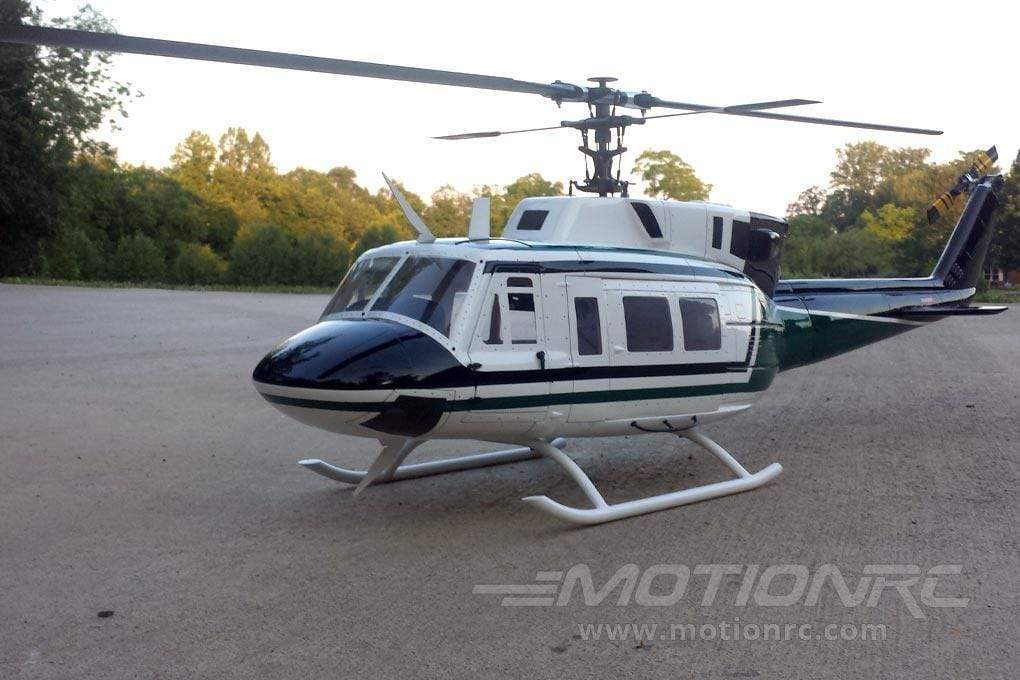

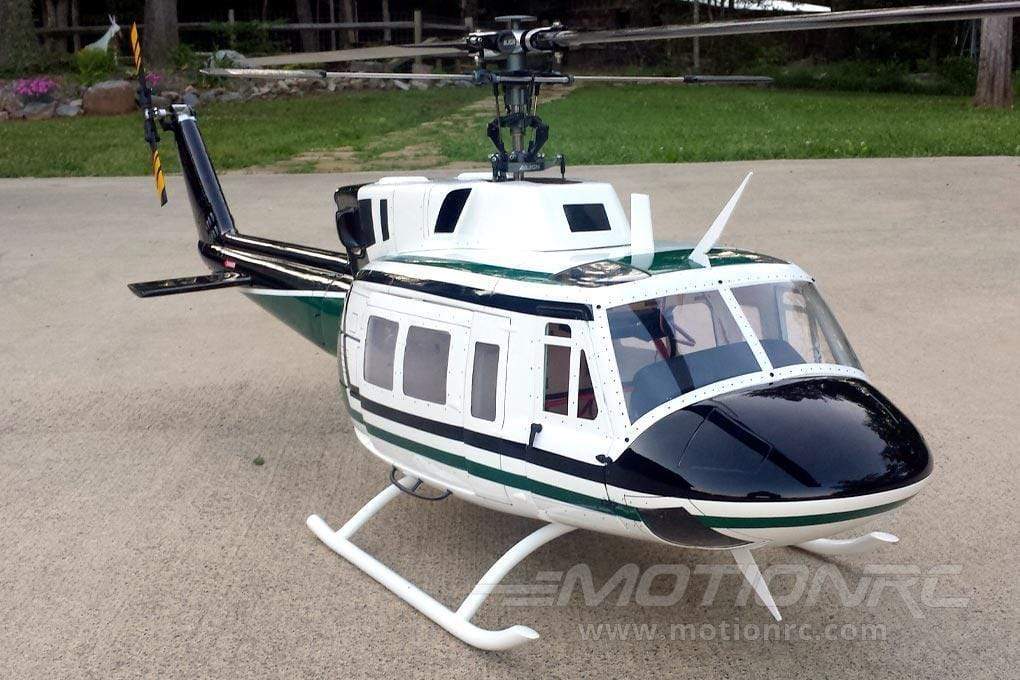

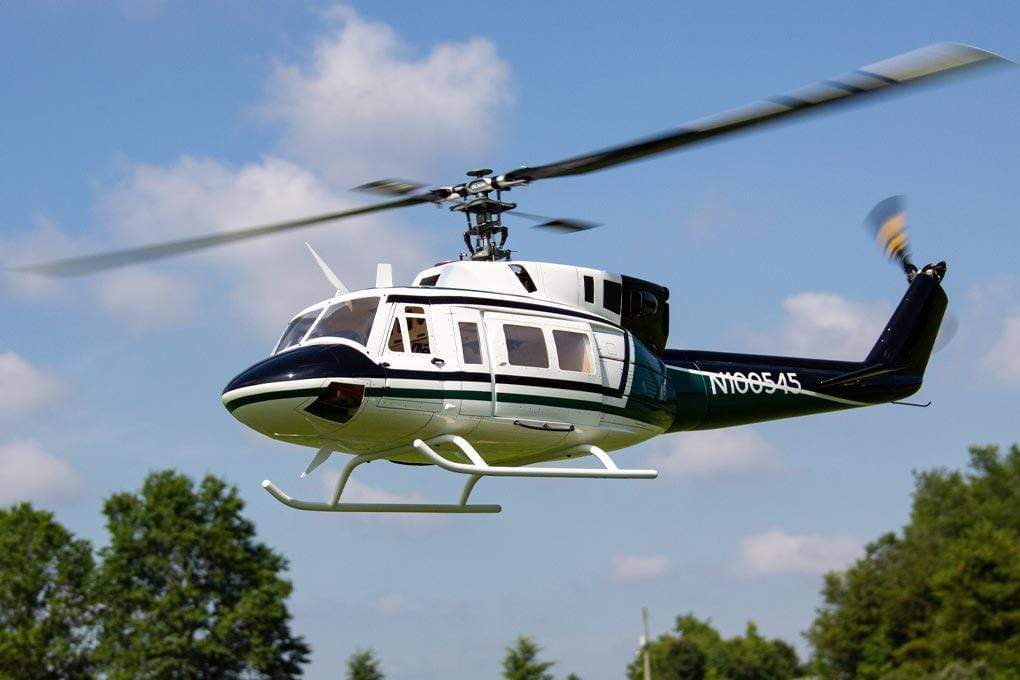

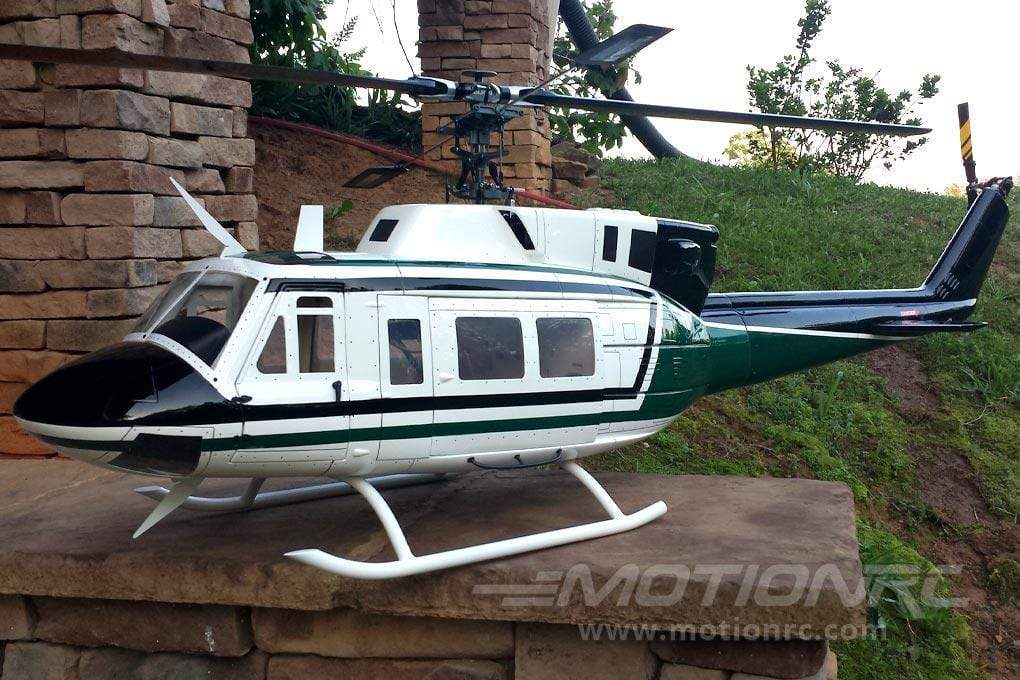

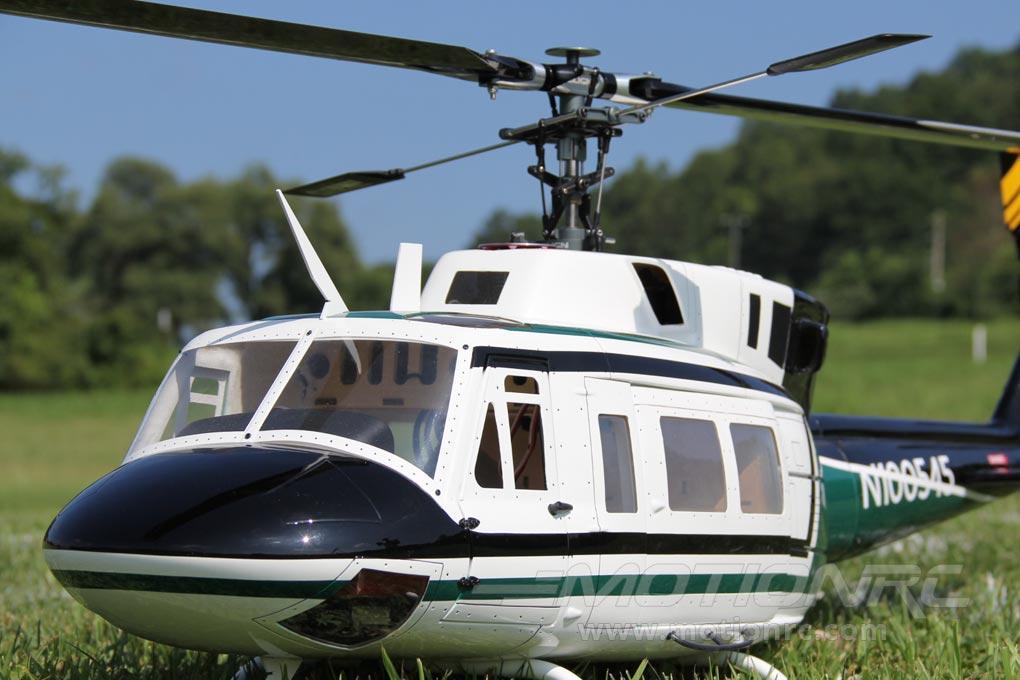

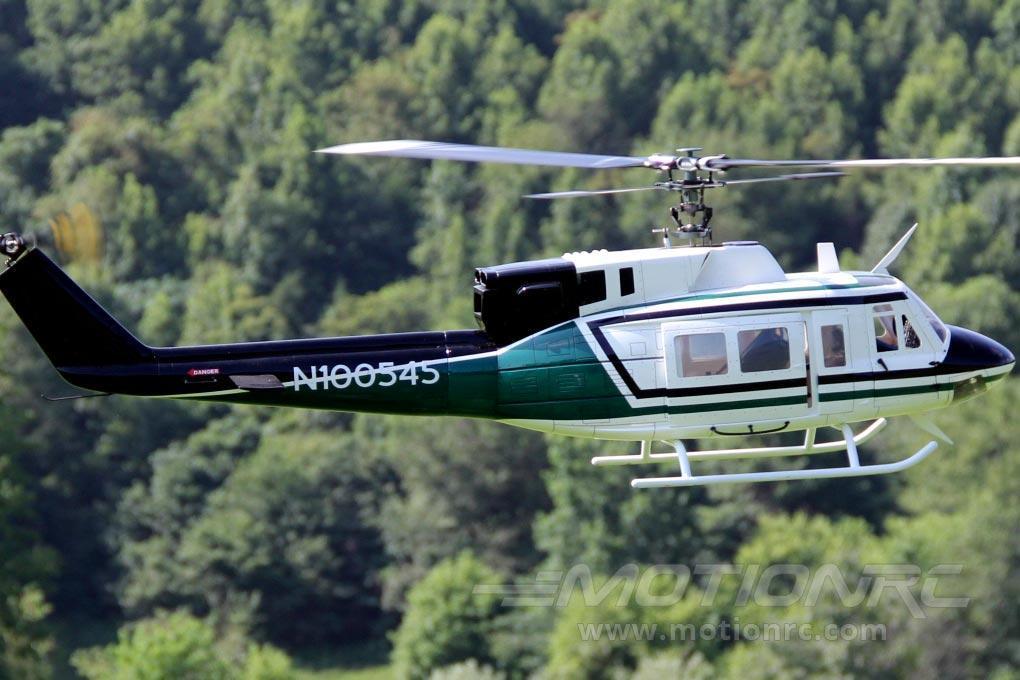

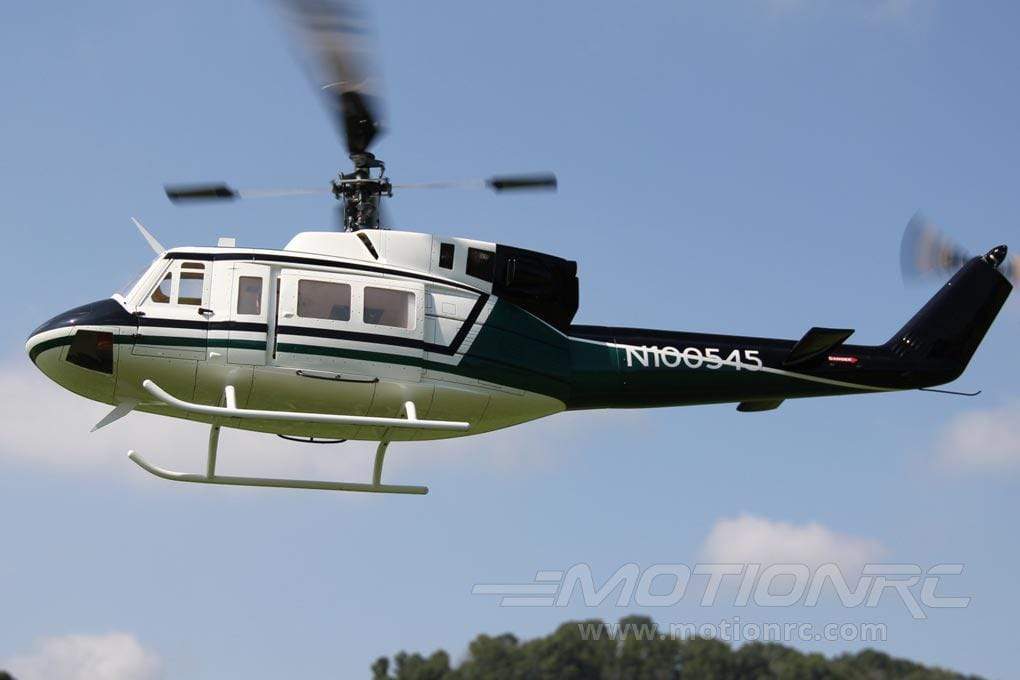

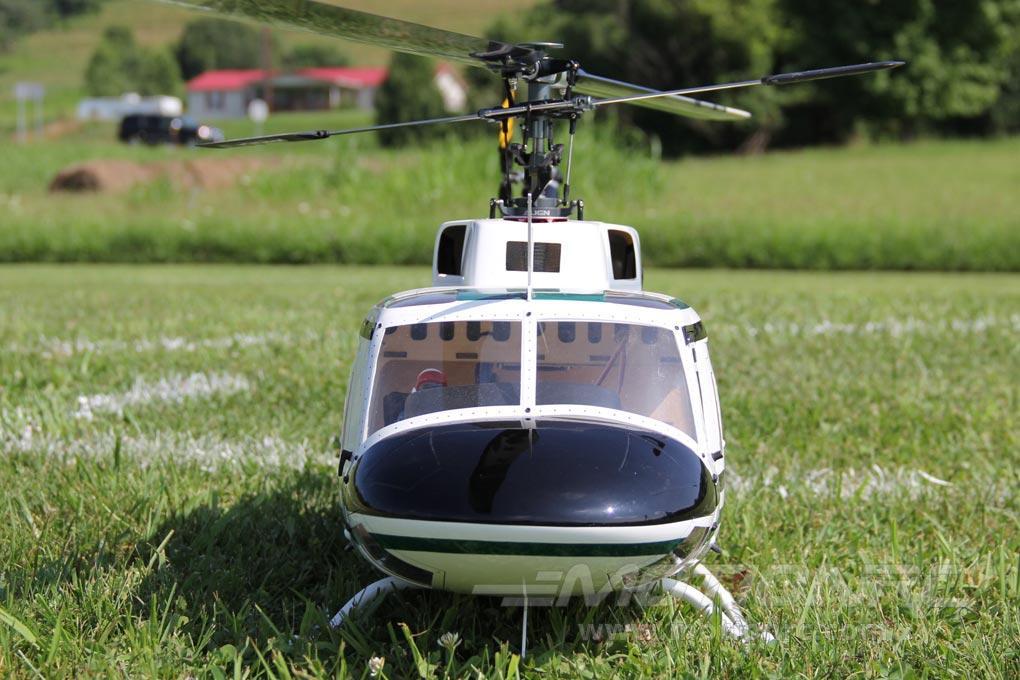

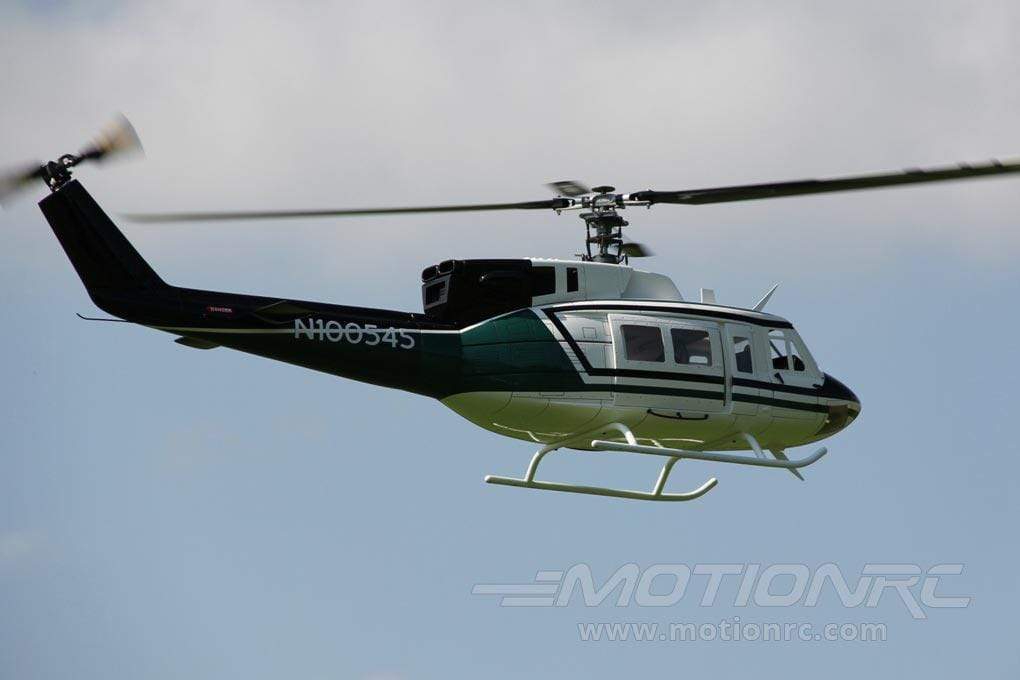

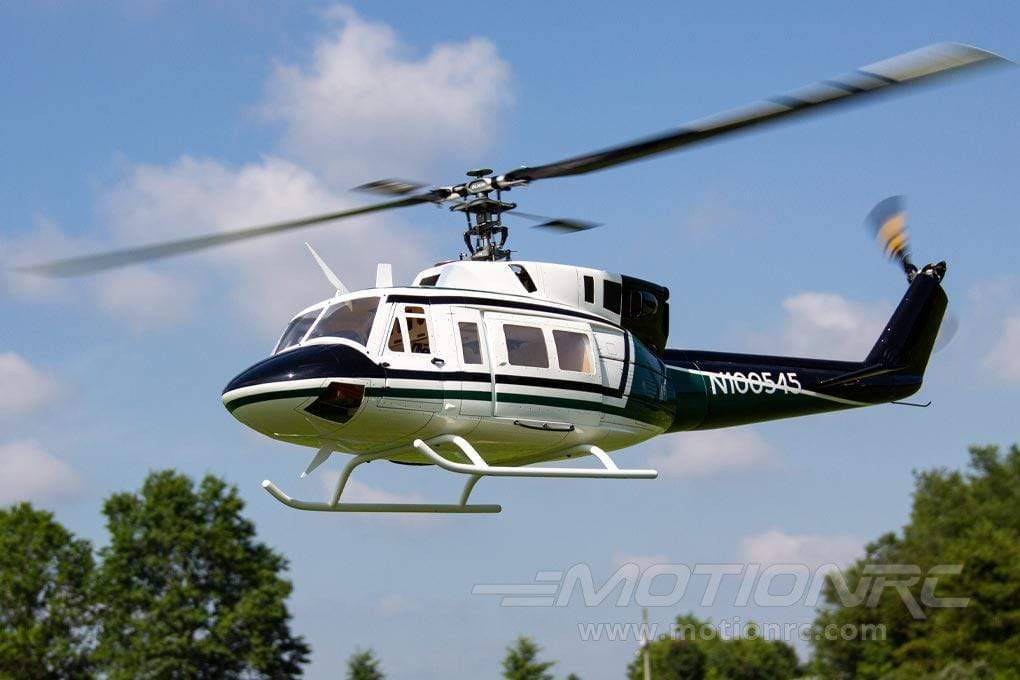

B212 Civilian Version Green/White 600 Size Helicopter Scale Conversion Kit from Roban - RBN-KF212GW6
The B212 (also known as the Twin Two-Twelve) is a two-blade, twin-engine, medium helicopter that first flew in 1968. The B212 is marketed to civilian operators and has a fifteen-seat configuration, with one pilot and fourteen passengers. This is the 600 size B212 Civilian Green/White version. Designed to take your TREX-600 or a Chaos 600TT or similar TT driven torque tube versions* and transform it into a very scale RC version of the full scale helicopter. This kit includes everything you need to install your mechanics, including the 45 degree angle raised tail gearbox specially designed for easy plug-n-play install in the Chaos or Align mechanics.
These 600 scale conversion kits from Roban offer special designed side frames which are designed to offer 2 primary special features. One is to lower the transmission which allows the torque tube to travel thru the lower tail boom of the helicopter which has always been a problem with most military helicopters. Probably the most revolutionary design in scale helicopters, these frames allow the entire mechanical system to be tucked up inside the dog house just like the full scale helicopters.
No more mechanics taking up the entire fuselage area leaving no room for cockpits, rear seats, etc.

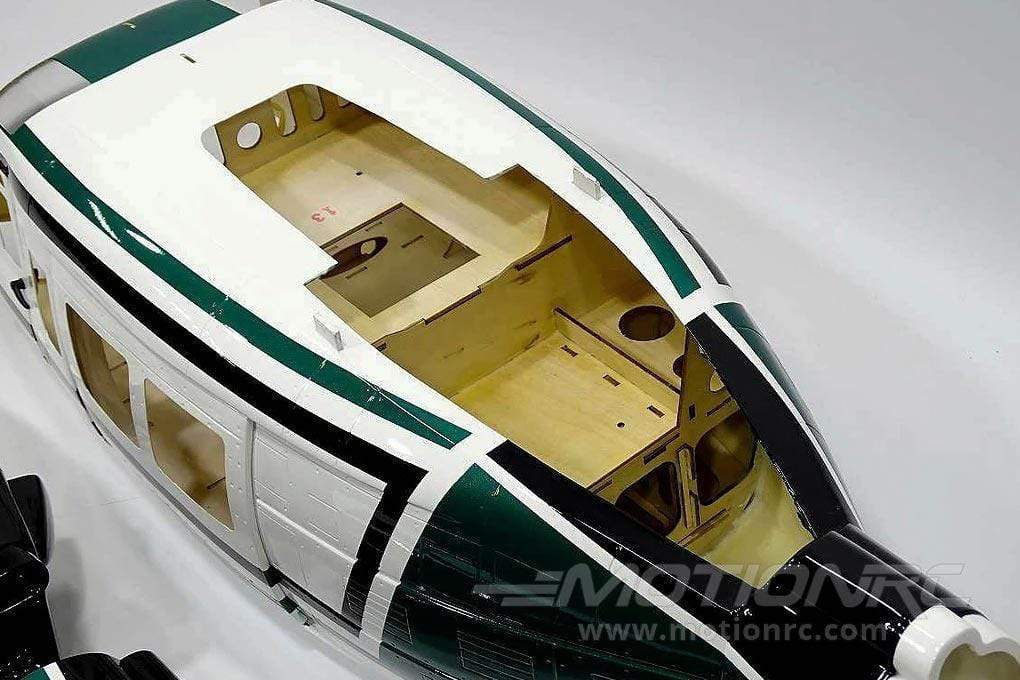

Most of the work is done for you. All wood work is installed. Pre-drilled holes for easy install of the landing gear. The optional scale cockpit is completely hand assembled and painted for you in impressive detail. All you need to do is just slide it in place. Decals no more! The cockpit is hand painted with raised details and instruments.
Because the B212 is a 2 blade helicopter, there is no need to change any configuration within the mechanics. If you have an existing good flying 600 helicopter, you will not need to upgrade or change anything. Standard 600 set up is an 1100 Kv brushless outrunner motor, 80-100 amp ESC and a 6S 22.2V 5000 mAh or higher LiPo battery.
This fuselage can be completed in as little as 4-6 hrs and is intended for the intermediate to advanced builder.
* Note: This kit will not fit the Trex 600 EFL models.
Visit the Official Roban 600 Size B212 Civilian Version Green/White Scale Helicopter Conversion Kit Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:

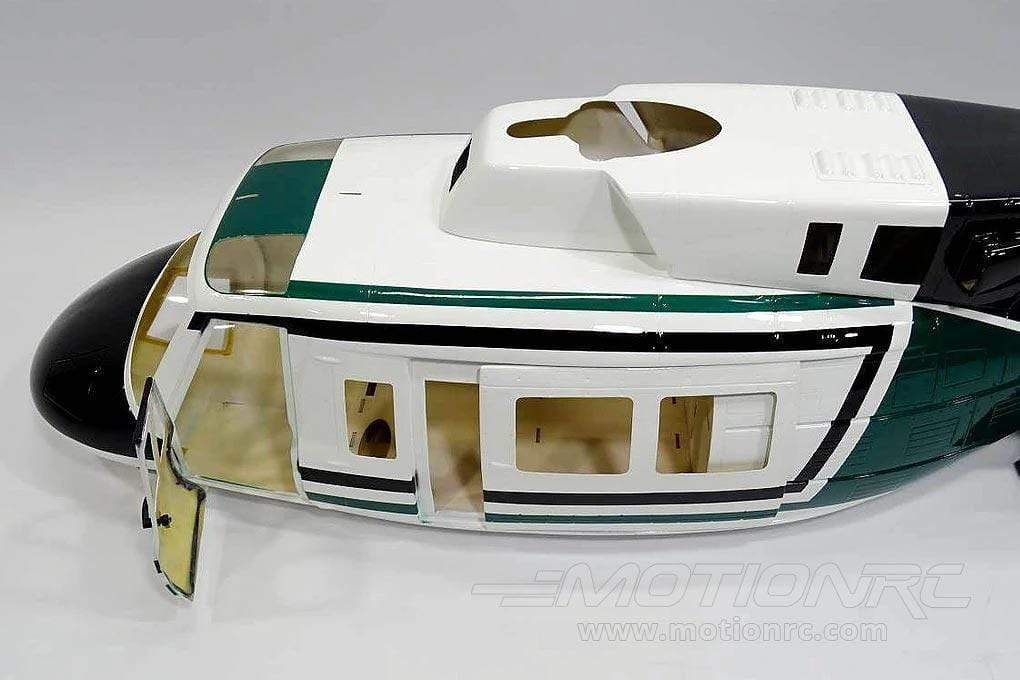

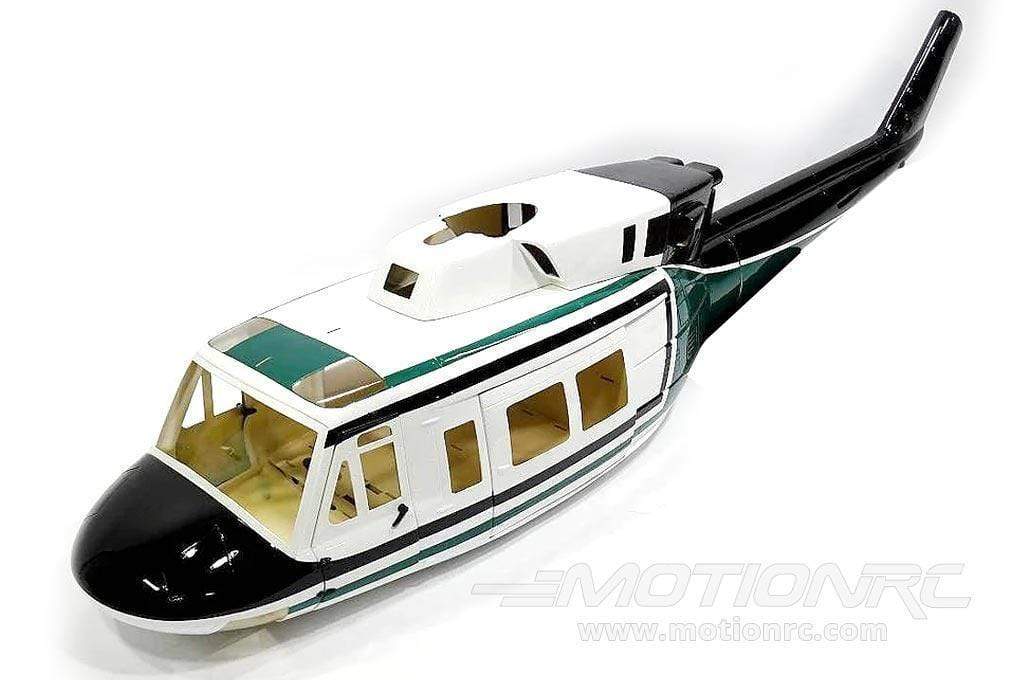

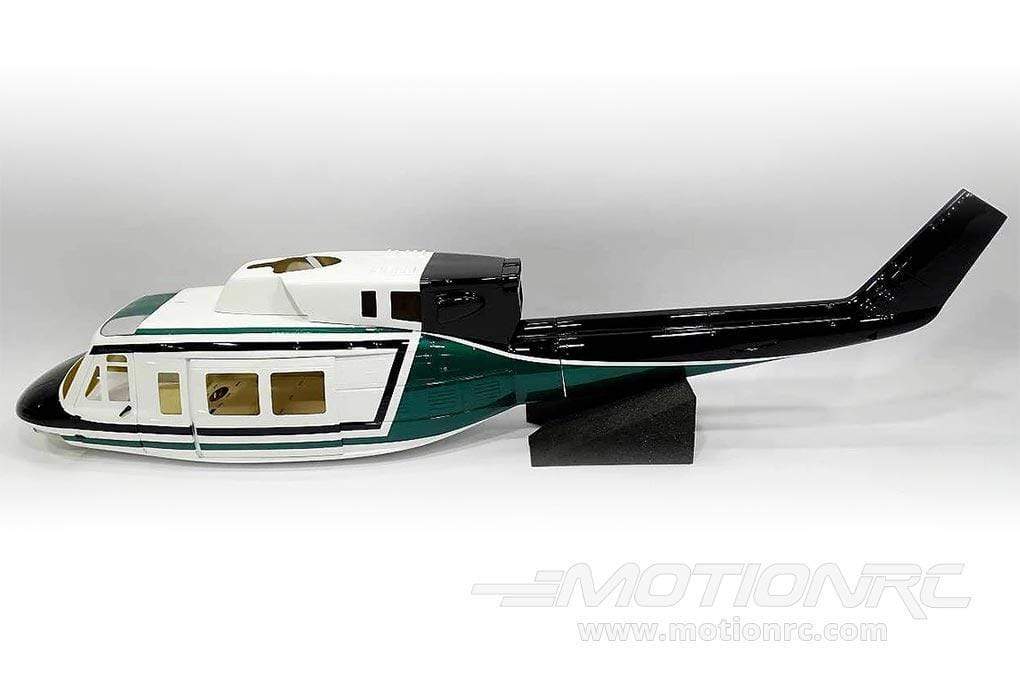

- Fully painted fiberglass scale fuselage
- Magnetic cabin lock system for quick and easy access
- Extremely detailed surface and molded panel lines
- Use of 600 standard equipment (6S Battery, 1100Kv motor), fly with your existing parts
Includes:
- Roban B212 Civilian Version Green/White 600 body kit
Requires:
- 600 Size helicopter kit - we recommend the Phoenixtech 600ESP helicopter kit
- Helicopter flight controller - we recommend the BeastX MicroBeast Plus Flybarless System
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge 100A ESC with 5A SBEC
- Battery eliminator circuit (BEC) - we recommend the Castle Creations 20A BEC Pro
- Brushless motor - we recommend the Scorpion HKIV 4025-1100Kv Brushless Motor
- Three cyclic servos - we recommend the MKS DS1220 High Torque Servo Multi-Pack (3 Servos)
- Tail servo - we recommend the MKS HBL669 Standard Tail Servo
- 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 connector - We recommend the Admiral 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 Connector
- 8 Channel radio - select a minimum 8 channel radio with pitch and throttle curves from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
Optional:
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
Product Specifications:
Class / Size |
600 |
Power Type |
Electric |
Rotor Type |
Collective Pitch |
Body Material |
Fiberglass |
Overall Size (L x W x H) |
1480 x 365 x 280mm |
Flying Weight |
1500g |
Main Rotor Diameter |
N/A |
Main Rotor Blade Length |
N/A |
Tail Rotor Diameter |
N/A |
Tail Rotor Blade Length |
N/A |
Tail Drive Type |
Torque Tube |
Cyclic Servos |
3x MKS DS1220 - MKS6005-002 |
Tail Servo |
1x MKS HBL669 - MKS-HBL669 |
Power System |
1100Kv Brushless Motor |
Electronic Speed Control |
120A High Voltage with EC5 Connector |
Recommended Battery |
6S 22.2V 5000 mAh LiPo with EC5 Connector |
Battery Compartment Size (L x W x H) |
N/A |
Required Radio |
7 Channel |
Skill Level |
Advanced |
Build Time |
4+ Hours |
Recommended Environment |
Outdoors |
