GP60 8925-180Kv Brushless Motor from Admiral - ADM6000-008
Placed firmly at the top of most people's 'go to' brand for power with our renowned Admiral LiPo's, Admiral is proud to present the latest addition to our Power range, the Admiral 'GP' Series Brushless Electric Outrunners. The Admiral 'GP' series was created specifically to convert models from gas engines to brushless electric power! Our Admiral GP brushless motors are designed to a high standard, manufactured to a high quality and optimized for maximum power, efficiency and performance, giving you everything you would expect from an Admiral Power product and all at a very affordable price.
The Admiral GP60 8925-180Kv is rated up to 6000 watts and an equivalent to a 50cc-60cc gas engine and ideal for large sport and scale models weighing between 6.8-11kg (15lbs-24lbs) be it your latest large scale balsa ARF project or converting a large glow/gas model to electric, the GP60 is the perfect choice for those larger scale models when used with 12S 44.4V LiPo batteries. As with all Admiral GP series motors, the GP60 comes supplied complete with a comprehensive set of mounting hardware, tools, X-plate mount and bolt on prop shaft along with rear shaft extension for reverse mounting.
Features:
- Rear shaft extension
- Equivalent to 50cc-60cc gas engine
- Ideal for sports/scale models weighing between 6.8-11kg (15lbs-24lbs)
- Suitable for models requiring up to 6000 watts of power
- Rated up to 140 amps burst
- 6.5mm gold pin connectors
- High torque output and optimized outrunner design
- Mounting hardware and accessories included
- Admiral blue anodized finished
- Quiet and lightweight alternative to nitro/gas
- Hardened steel 10mm shaft supported by high quality ball bearings
- 10mm rear shaft for reverse installation
- Designed for use with props from 24x10 - 25x12 and 12S 44.4V LiPo
- Compatible with large models including 50cc-60cc equivalent models such as the Black Horse A6M Zero, F4U-1D Corsair, Gilmore, and P-40C Warhawk

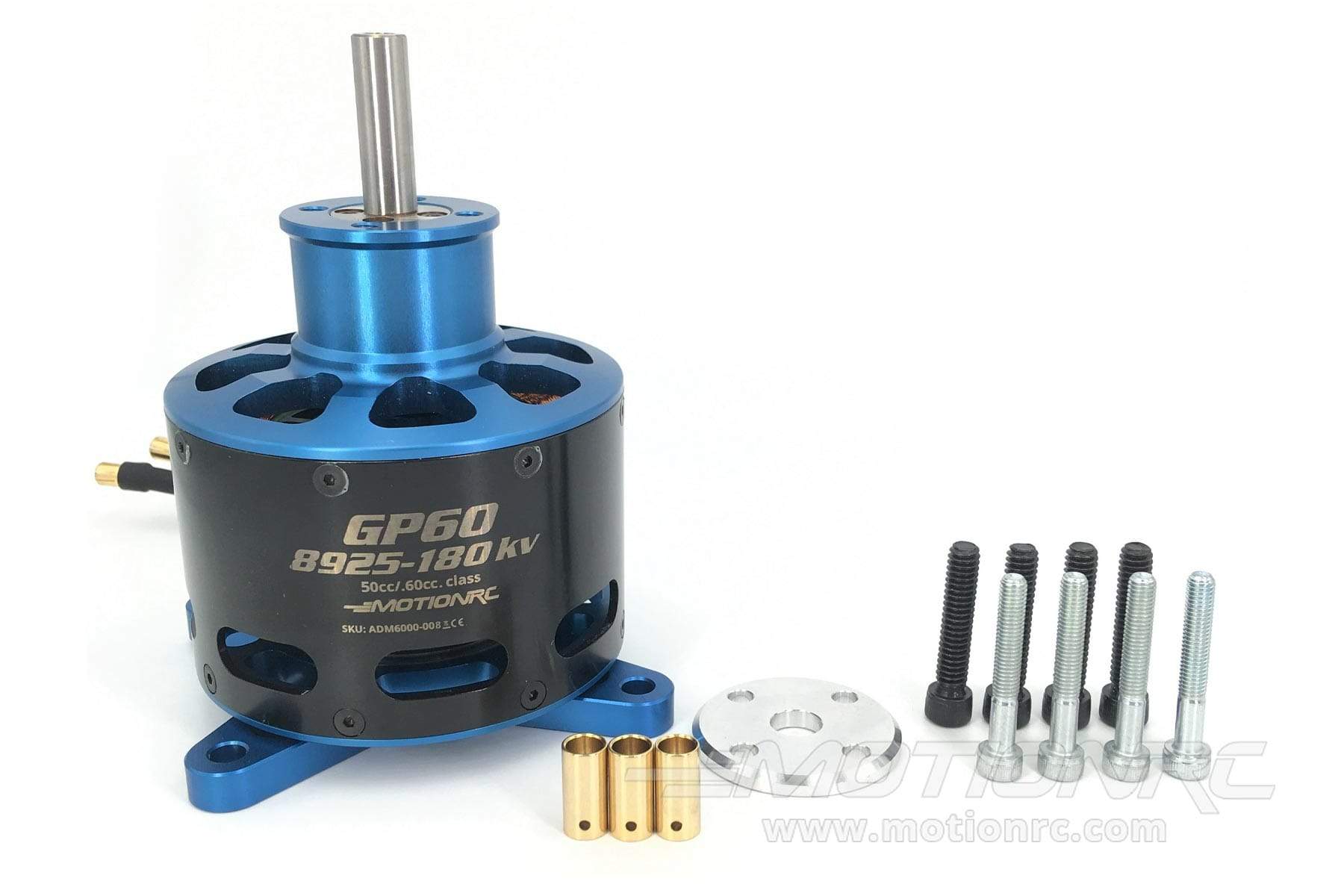

Includes:
- Admiral GP60 8925-180Kv Brushless Motor
- Bolt on 12mm prop shaft
- Mounting hardware
- X-mount plate and accessories
- 6.5mm gold pin connectors
Requires:
- Please review the specification table at the bottom of this page for battery, ESC and other recommendations that will work best for this motor
Product Specifications:
Motor Type |
Outrunner |
Kv Rating (RPM/Volt) |
180Kv |
Maximum Watts |
6000W |
Maximum Burst Current |
150A |
Recommended Battery (Input Voltage) |
12S |
Recommended ESC |
160A+ |
Recommended Propeller / EDF |
24x10 to 25x12 |
Slots, Poles |
20 |
Shaft Diameter (A) |
10mm |
Shaft Length (B) |
32mm |
Motor Length (C) |
60mm |
Motor Diameter (D) |
88mm |
Overall Length (E) |
92mm |
Weight |
1240g / 43.7oz |
Connector Type |
6.5mm Bullet |
