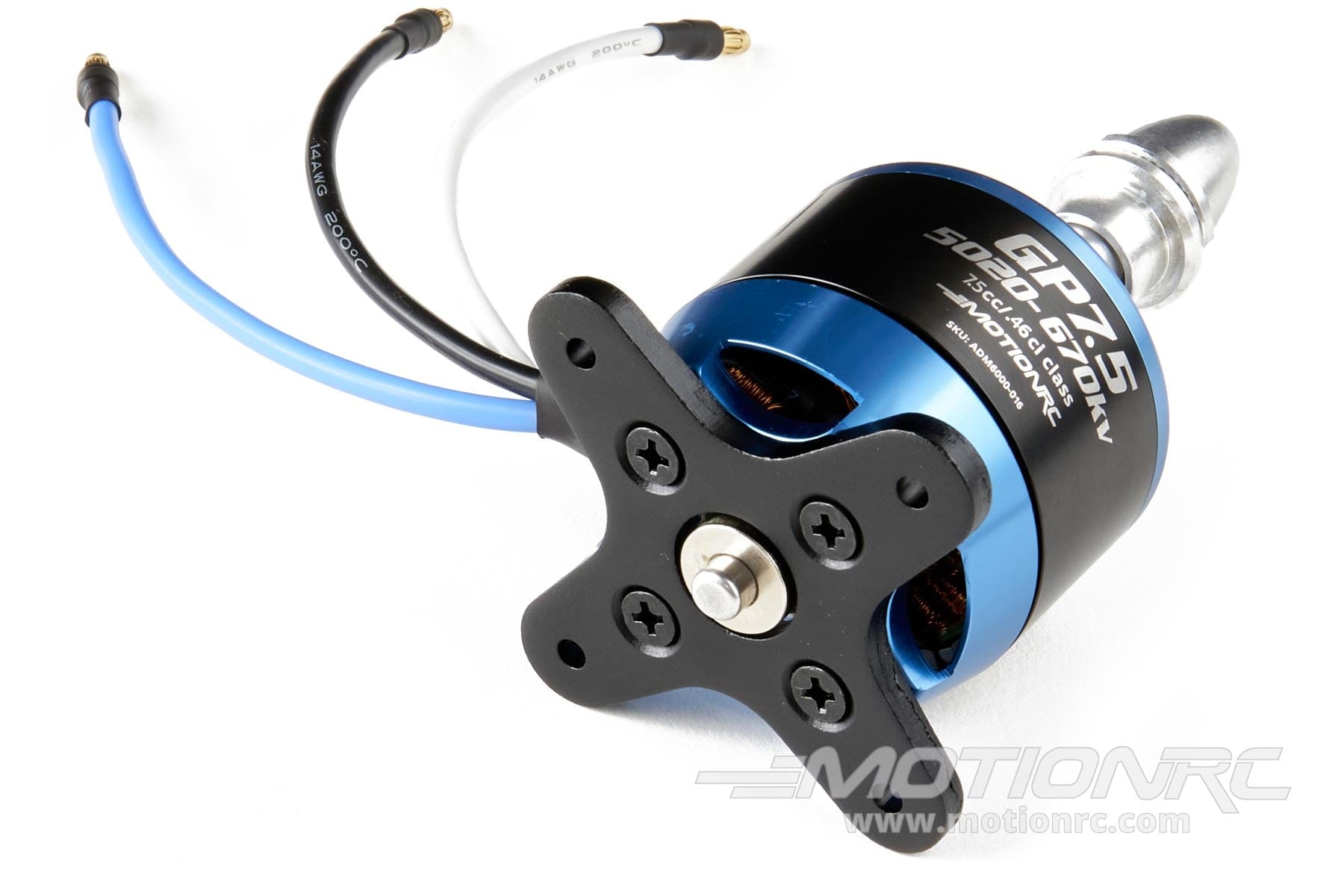

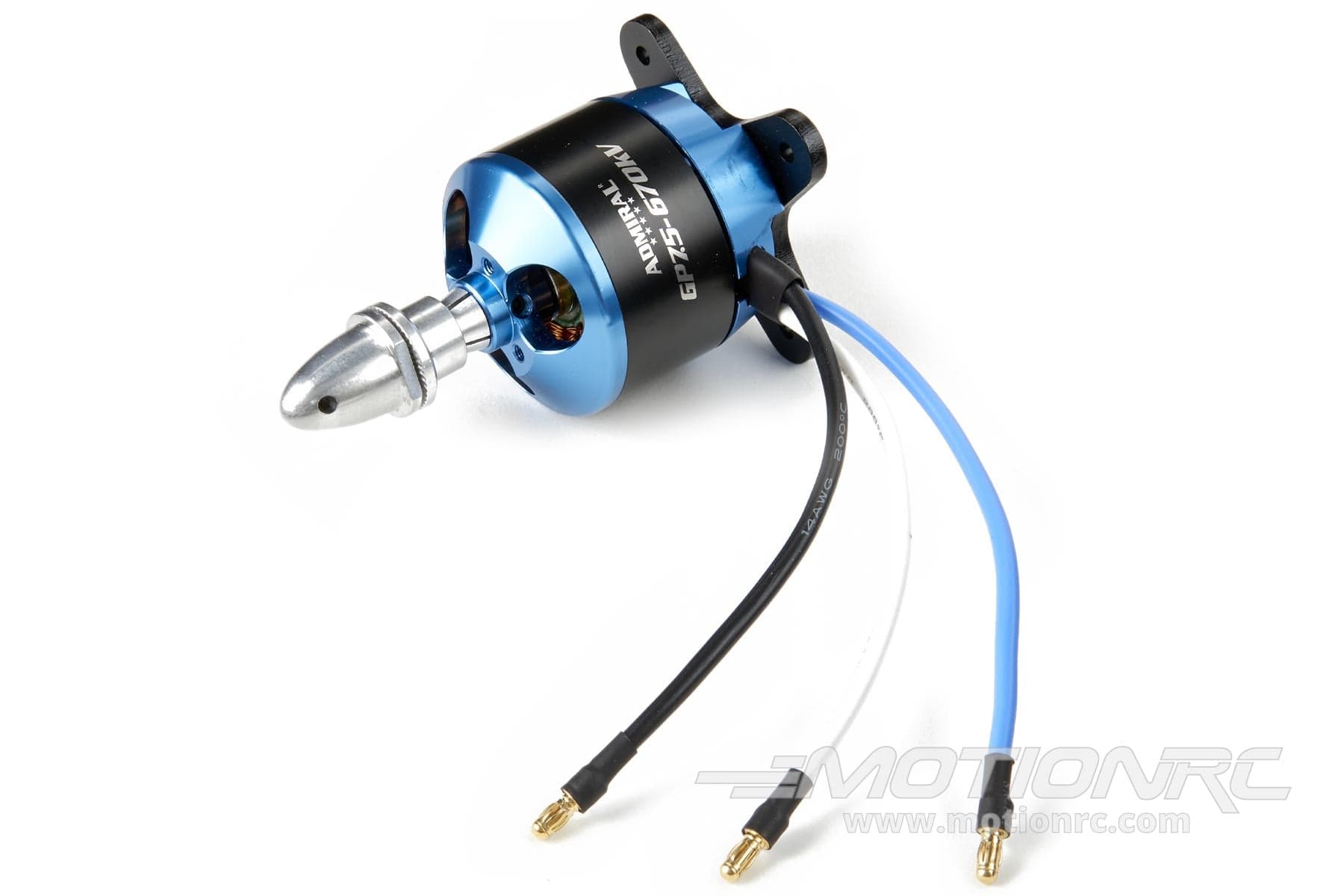

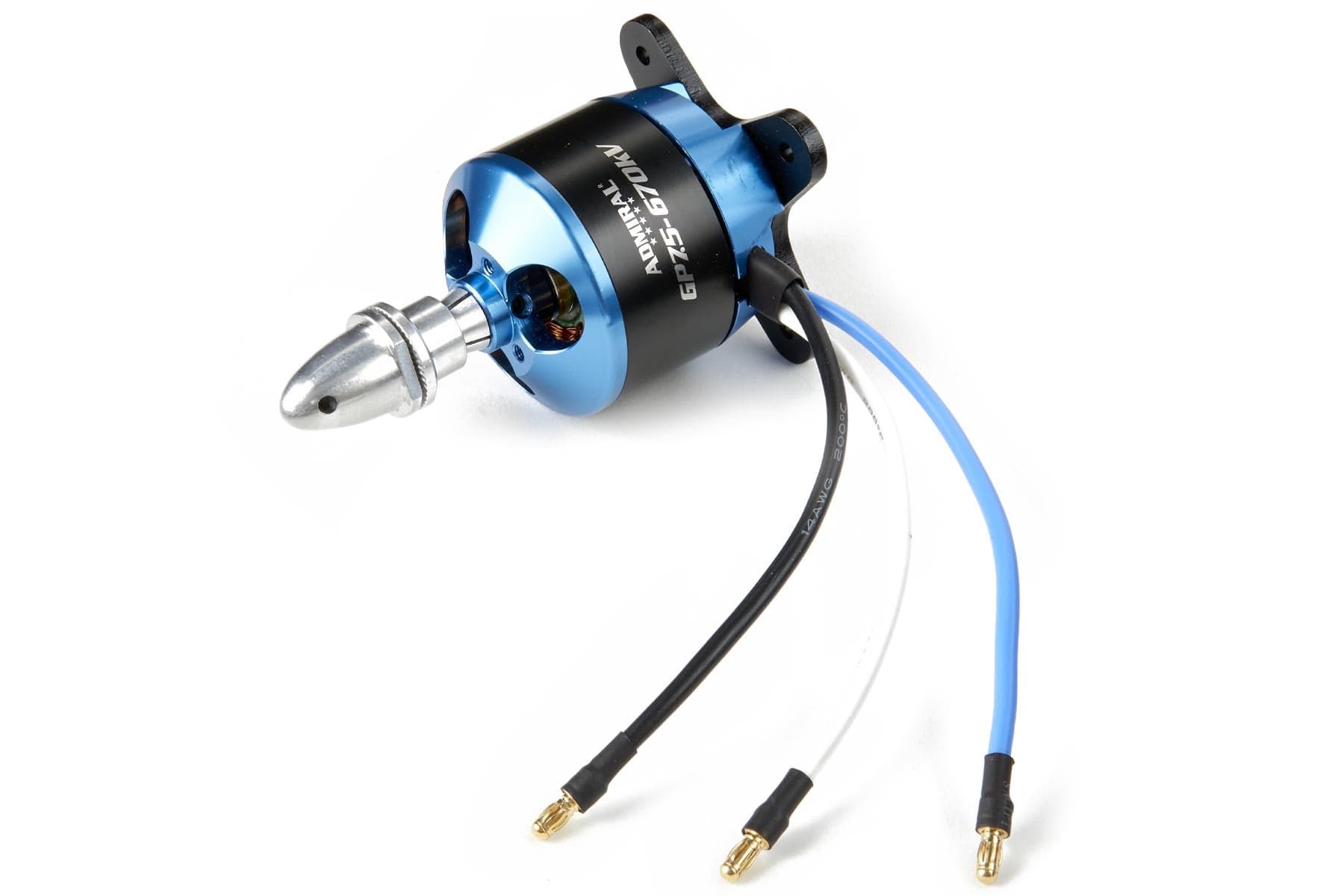

GP7.5 5020-670Kv Brushless Motor from Admiral - ADM6000-016
Placed firmly at the top of most peoples 'go to' brand for power with our renowned Admiral LiPo's, Admiral is proud to present the latest addition to our Power range, the Admiral 'GP' Series Brushless Electric Outrunners. The Admiral 'GP' series was created specifically for the powering of balsa models traditionally designed for Glow/nitro and Petrol/gas planes, offering a equivalent 'drop in' replacement for a wide range of models from .15ci/2.4cc right through to 1.60ci/25cc class models and beyond, resulting in greater all round performance over 'wet' power systems, without any of the mess!
Our GP motors are designed to a high standard, manufactured to a high quality and optimized for maximum power, efficiency and performance, giving you everything you'd expect from an Admiral Power product and all at a very affordable price.
Admiral GP7.5 5020-670Kv is rated up to 800 watts and an equivalent to a .46ci nitro/7-8cc gas engine and ideal for scale and sport models weighing between 1.8 – 3.2kg (4-7lbs), be it your latest '46' sized balsa ARF project or converting a bigger glow/gas model to electric, the GP7.5 is the perfect choice for this popular size of model when used with a 4-5S LiPo. As with all Admiral GP series motors, the GP7.5 comes supplied complete with a comprehensive set of mounting hardware, tools, X-plate mount and prop shaft.
Features:
- Equivalent to .46ci nitro/glow or 7-8cc gas engines
- Ideal for sports/scale models weighing between 1.8 – 3.2kg (4-7lbs), or 3D/aerobatic models up to 2.2kg ( 5lbs)
- Suitable for models requiring up to 800 watts of power
- 3.5mm gold pin connectors
- High torque output
- Mounting hardware and accessories included
- Admiral blue anodized finish
- Quiet and lightweight alternative to 'wet' power systems (nitro/gas)
- Hardened steel shaft supported by high quality ball bearings
- Designed for use with props from 12x8 to 14x10 and 4-5S LiPo

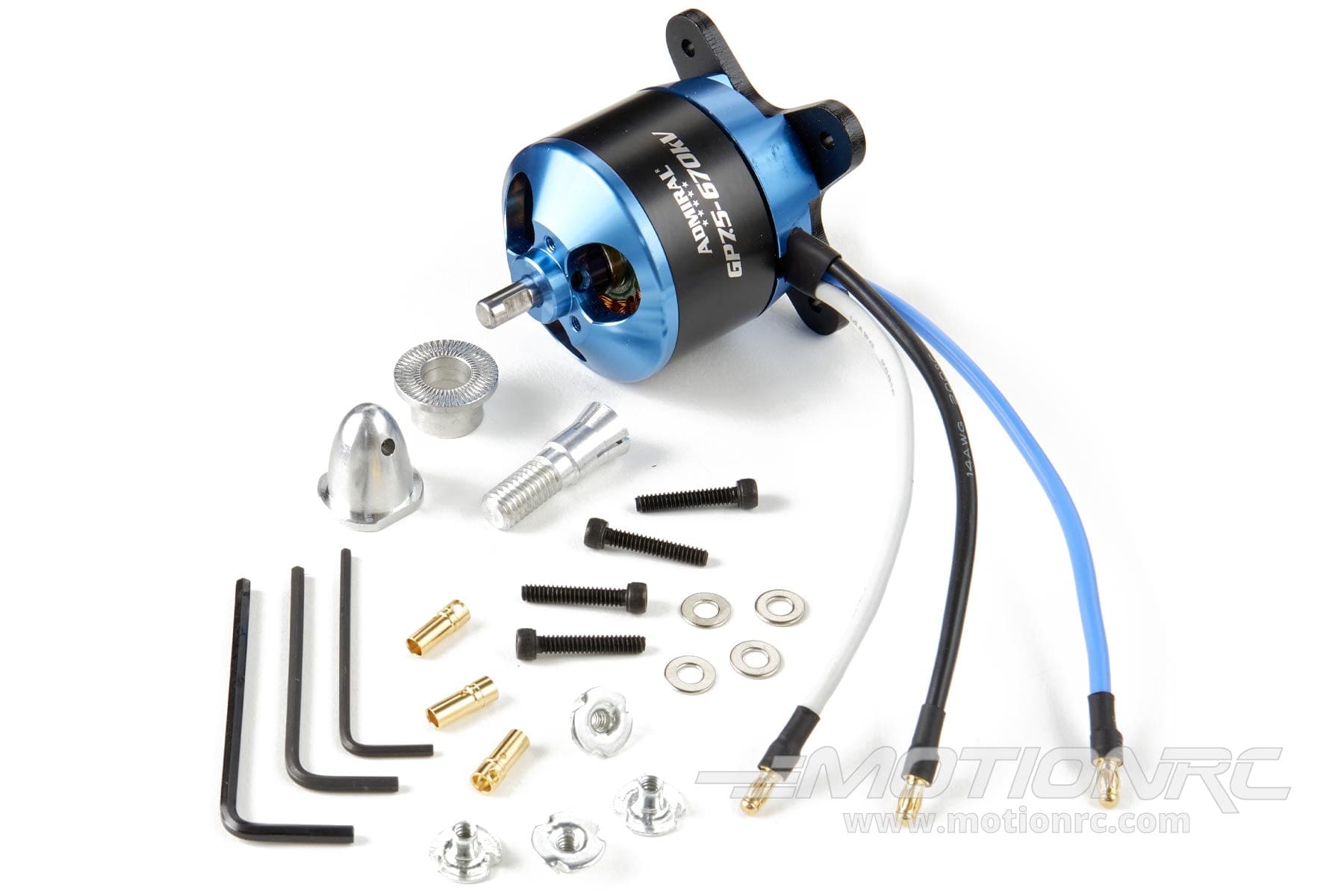

Includes:
- Admiral GP7.5 5020-670Kv Brushless Motor
- (1) Clamp-style propeller adapter
- (3) Female bullet connectors
- (3) Heat pieces of heat shrink
- (4) M3 screws
Requires:
- Please review the specification table at the bottom of this page for battery, ESC and other recommendations that will work best for this motor
Product Specifications:
Motor Type |
Outrunner |
Kv Rating (RPM/Volt) |
670Kv |
Maximum Watts |
800W |
Maximum Burst Current |
55A |
Recommended Battery (Input Voltage) |
4-5S 3000-6000mAh LiPo |
Recommended ESC |
60+A |
Recommended Propeller / EDF |
12x8 to 14x10 |
Slots, Poles |
12 |
Shaft Diameter (A) |
6mm |
Motor Length (C) |
55mm |
Motor Diameter (D) |
50mm |
Overall Length (E) |
N/A |
Weight |
290g / 10.2oz |
Connector Type |
3.5mm Bullet |
