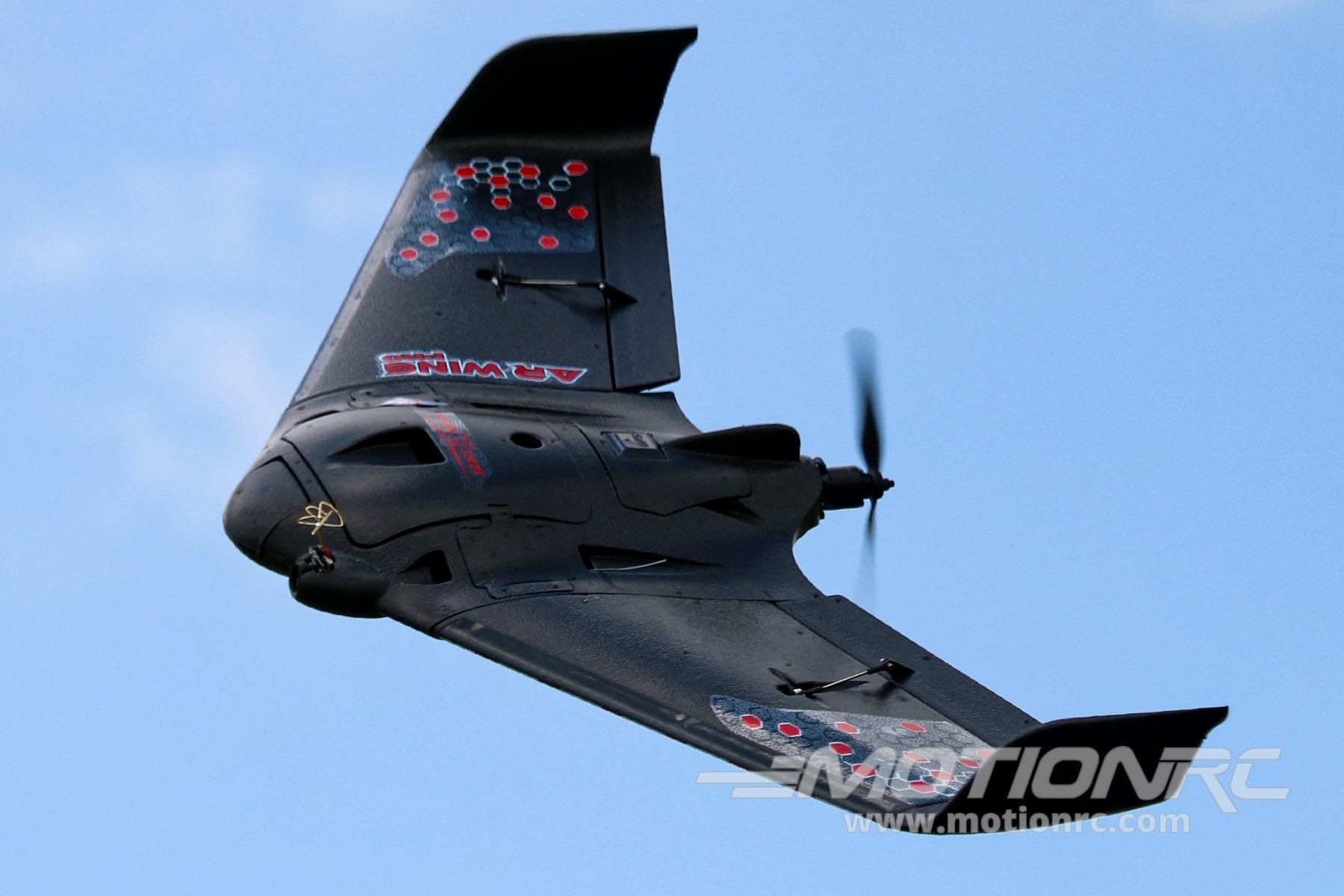

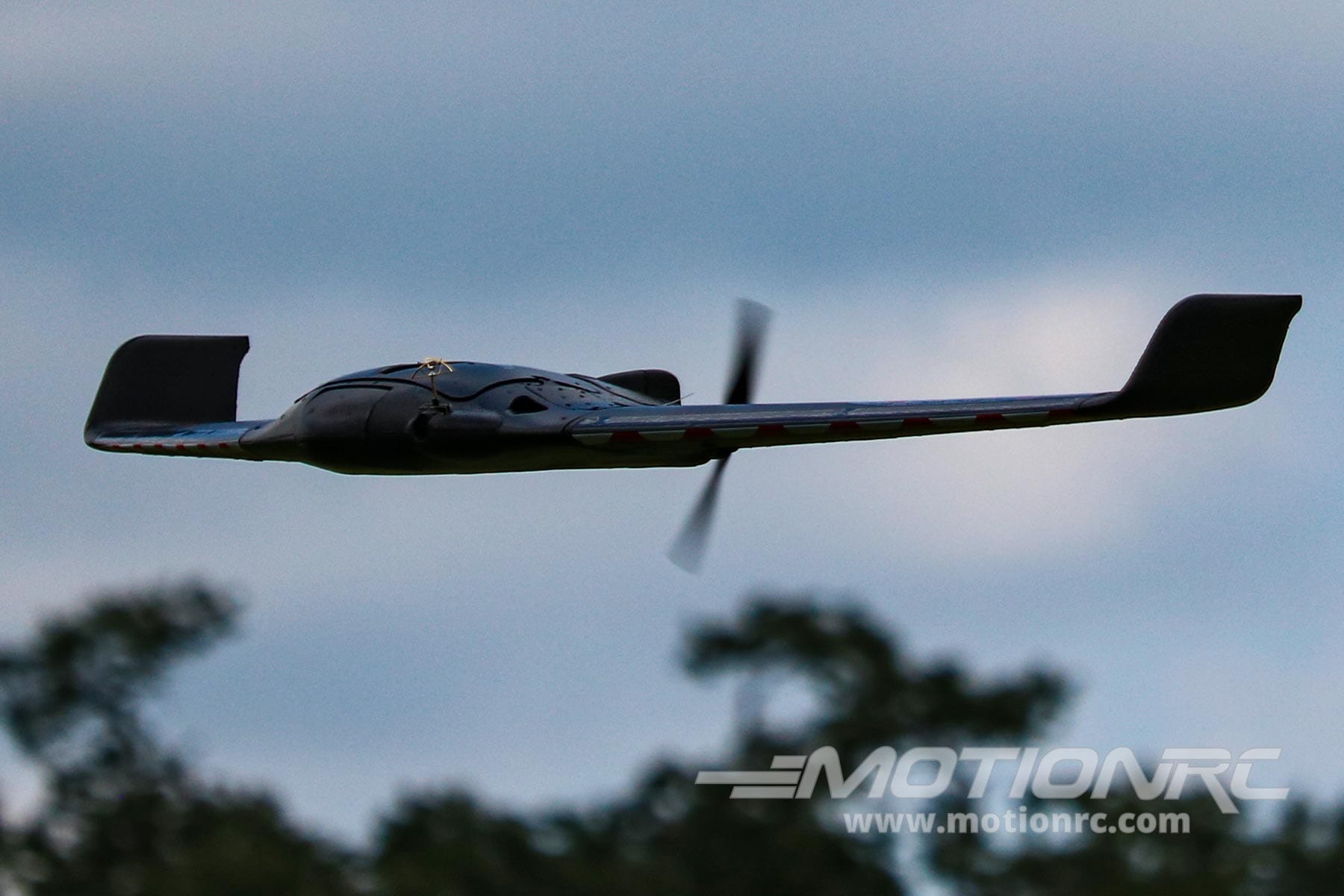

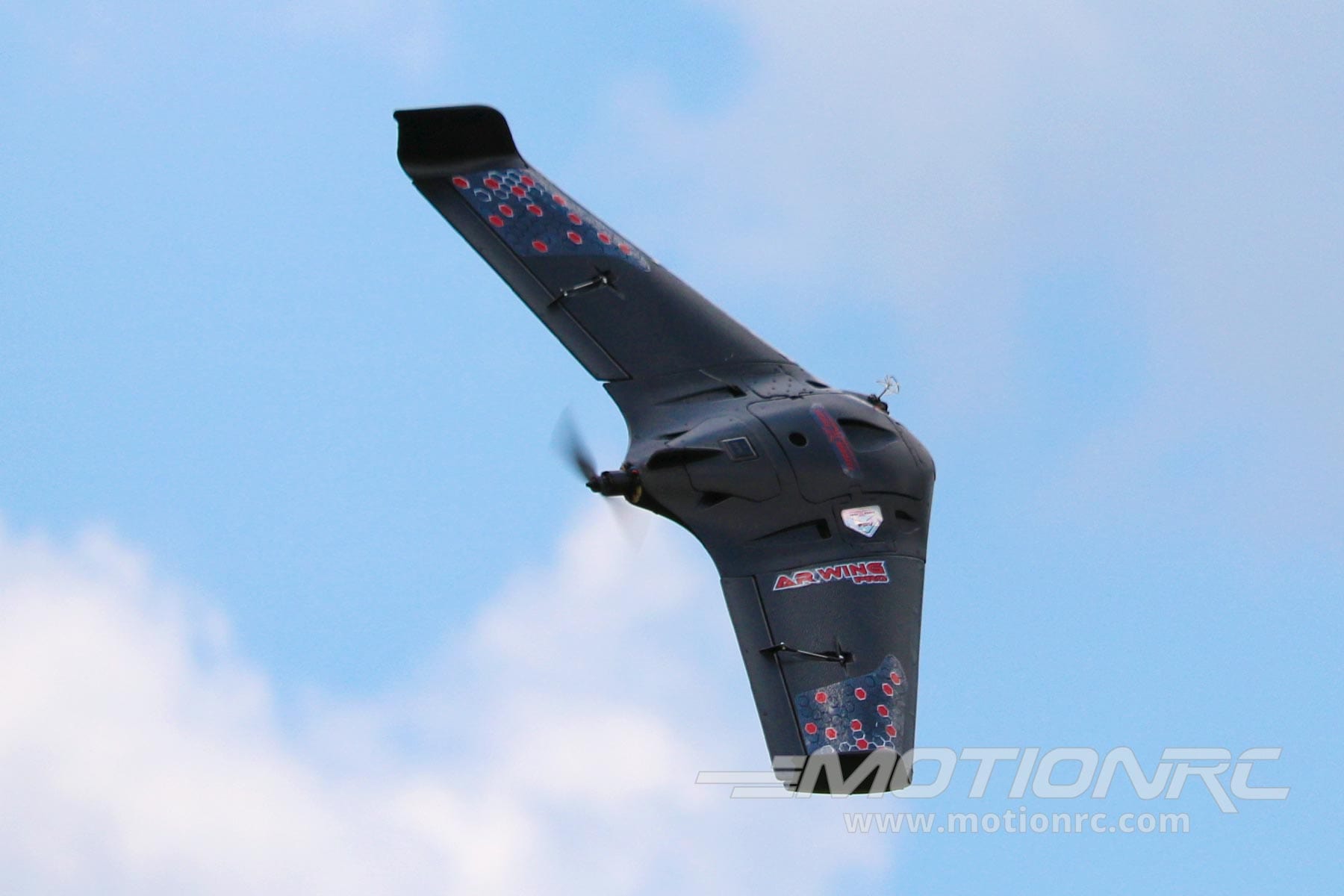

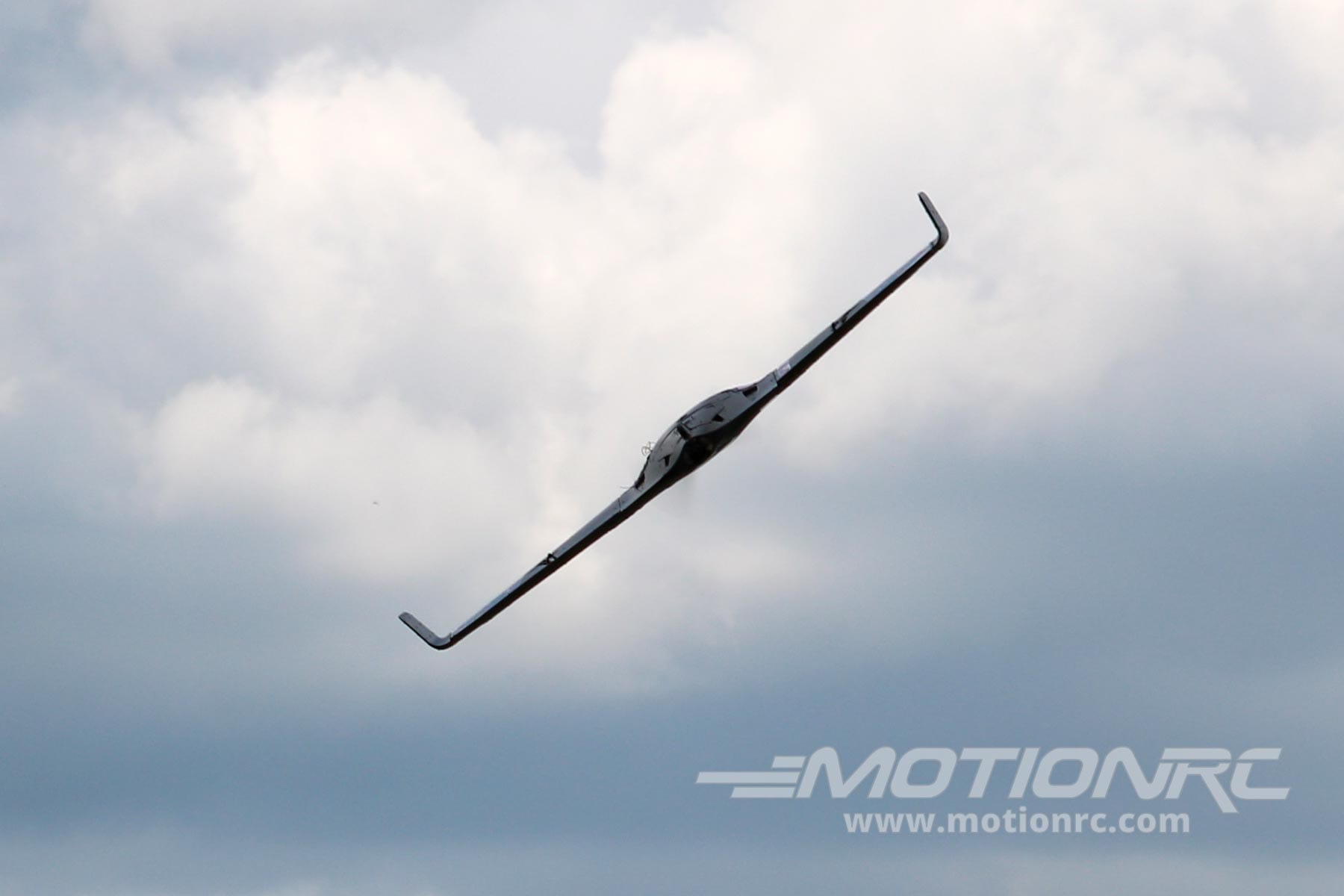

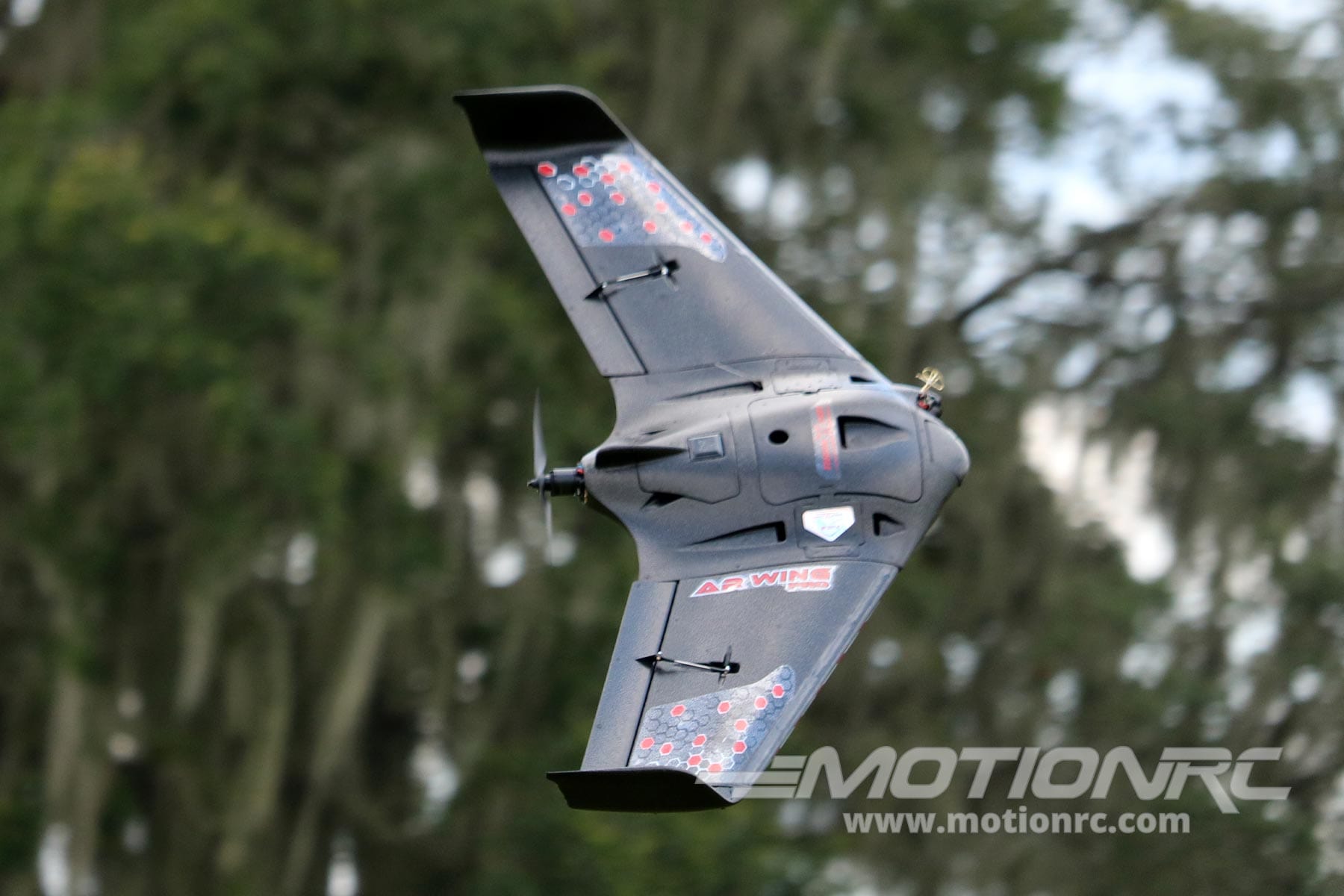

ZOHD AR Wing Pro 1000mm (39.37") - PNP from ZOHD - ZOH10065
With more than 35000+ units sold since it first came out and countless of other models trying to imitate its design, the ZOHD AR Wing by ZOHD has earned the title of "Classic" in the FPV world.
The hobby is growing and trends are changing; as a result is the ZOHD AR Wing Pro 1000mm Wingspan EPP RC Airplane. This is the first RC FPV-ready airplane that is compatible with the DJI Digital HD FPV System! There have been many improvements in the AR. Wing, like the extra nose, side camera bay, and main hatch to fit all FPV and AIO cameras in the market! Get yours now before they run out!
Visit the Official ZOHD AR Wing Pro Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Dedicated Nose Camera Bay The World's 1st FPV Wing with dedicated nose camera bay and main hatch bay for the DJI HD Air Unit System, no need to cut or DIY to fit the DJI System. |
|
Durable EPP Construction Molded by tough EPP material, built-in CF spar for enhancement, stable flying capability and impact resistance. |
 |
 |
Easy Assembly Detachable main wing and wingtip, glue-free assembly, portable for outdoor flying. |
|
Air-Cooling Throughout The optimized air-cooling design will keep your gear safe from overheating. |
 |
Features:
- The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System, no need any cut or DIY to fit the DJI System
- Aerodynamic designed FPV pocket in both sides of the fuselage, with high efficient NACA air cooling system to ensure the FPV gear work in perfect condition
- Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability, and crush resistance
- Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market
- Nose camera slot compatible with all HD Auction cameras (GoPro, DJI, Runcam, etc) in the market
- Multiple tunnels inside all equipment bays, easy to layout wire between each bay
- Detachable main wing and wingtip, glue-free assembly, portable for outdoor flying
- THE Built-in CF rod in the ailerons will give precision and sharp action to your inputs
- A high accurate ball link control system brings agile and quick response in control
- Special-designed “servo arm built-in” structure will protect your servo arm from impact
- Large battery bay for extended flight time and more rooms for various Flight Controller
- Decent rear bay for ESC, isolate interference from other FPV equipment
- The built-in plate inside the fuselage for extra enhancement
- Extra CA Hinges for DIY will bring you more stiff and agile control
- The optimized air-cooling design will keep your gear safe from overheating
Includes:
- ZOHD AR Wing Pro 1000mm (39.37") - PNP
Requires:
- 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
- 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
- 4 Cell 14.8V 3200 - 3500 mAh Li-Po Battery - we recommend the Admiral 3000mAh 4S 14.8V 35C LiPo Battery with XT60 Connector
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Product Specifications:
Model Scale |
N/A |
Wingspan |
1000mm / 39.3in |
Length |
450mm / 17.7in |
Empty Weight |
500g / 17.6oz |
CG (Center of Gravity) |
Refer to the owner's manual |
Power System |
2216-1400Kv Brushless Outrunner Motor (included) |
Electronic Speed Control |
40A (included) |
Propeller / EDF |
8x5 Pusher (included) |
Servos |
|
Landing Gear |
None |
Required Battery |
4 Cell 14.8V 3200 - 3500 mAh Li-Po Battery (required) |
Required Radio |
4 Channel (required) |
Ailerons |
Elevons |
Elevator |
Elevons |
Rudder |
No |
Flaps |
No |
Lights |
No |
Hinge Type |
Foam |
Material |
EPP Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoors |
