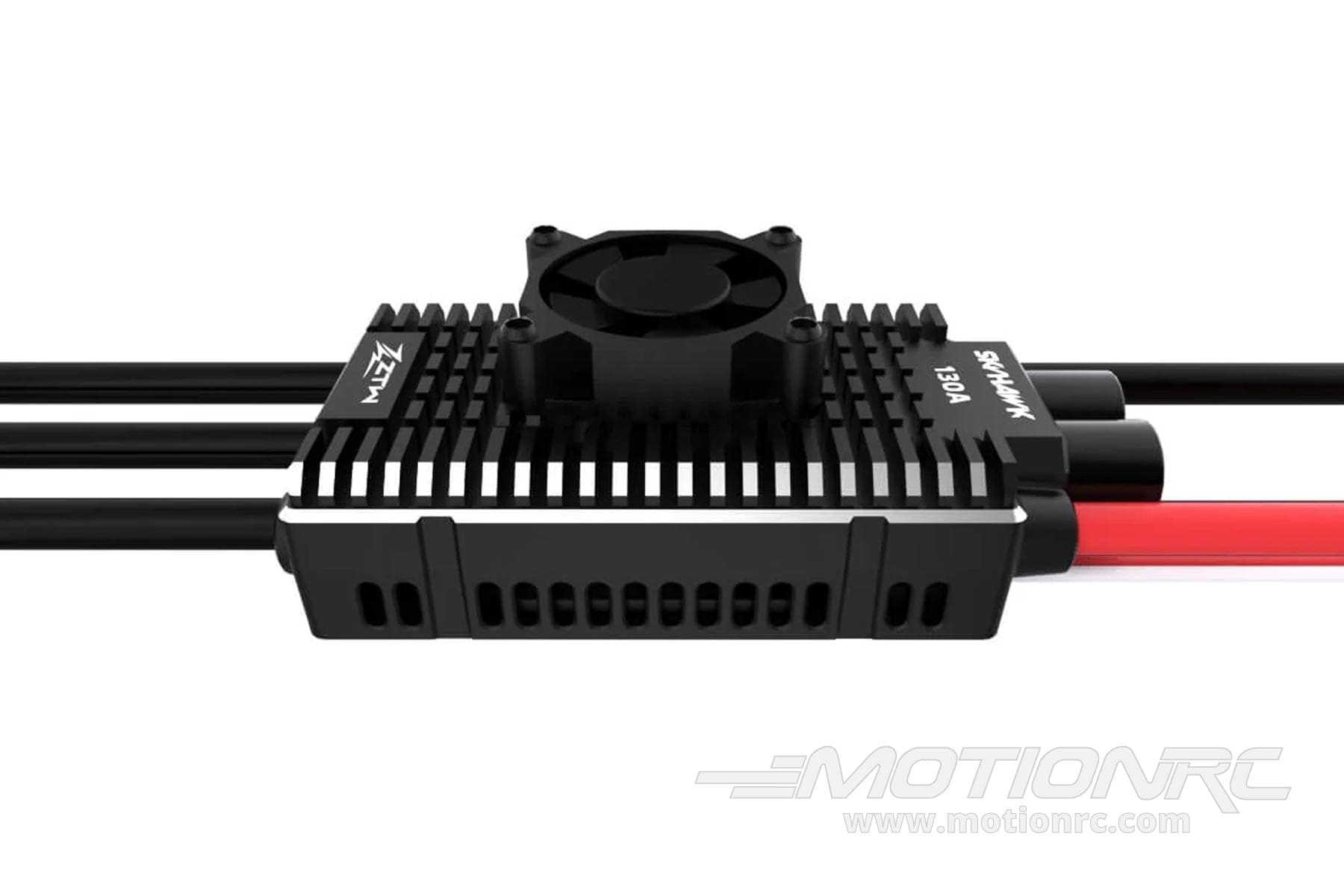

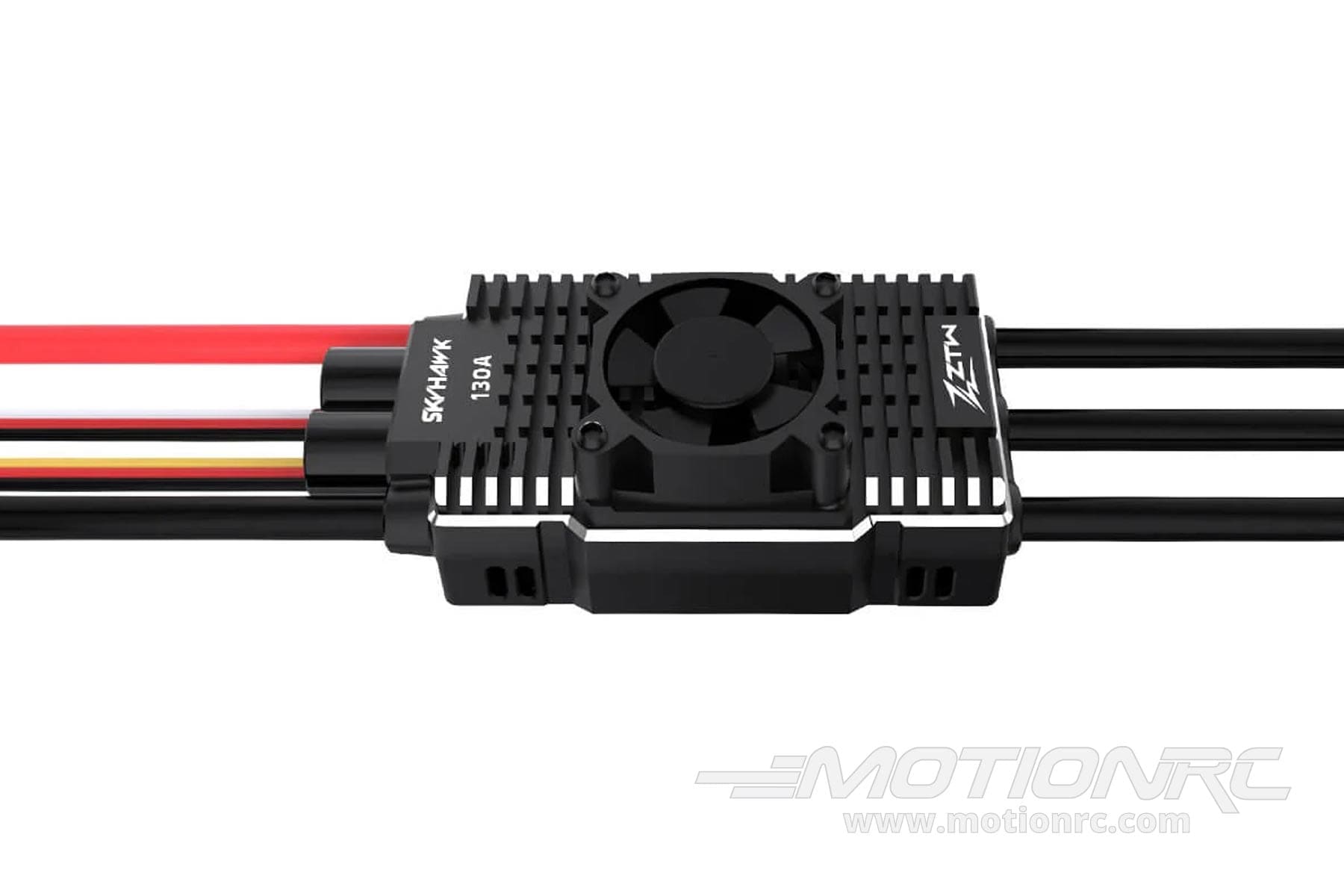

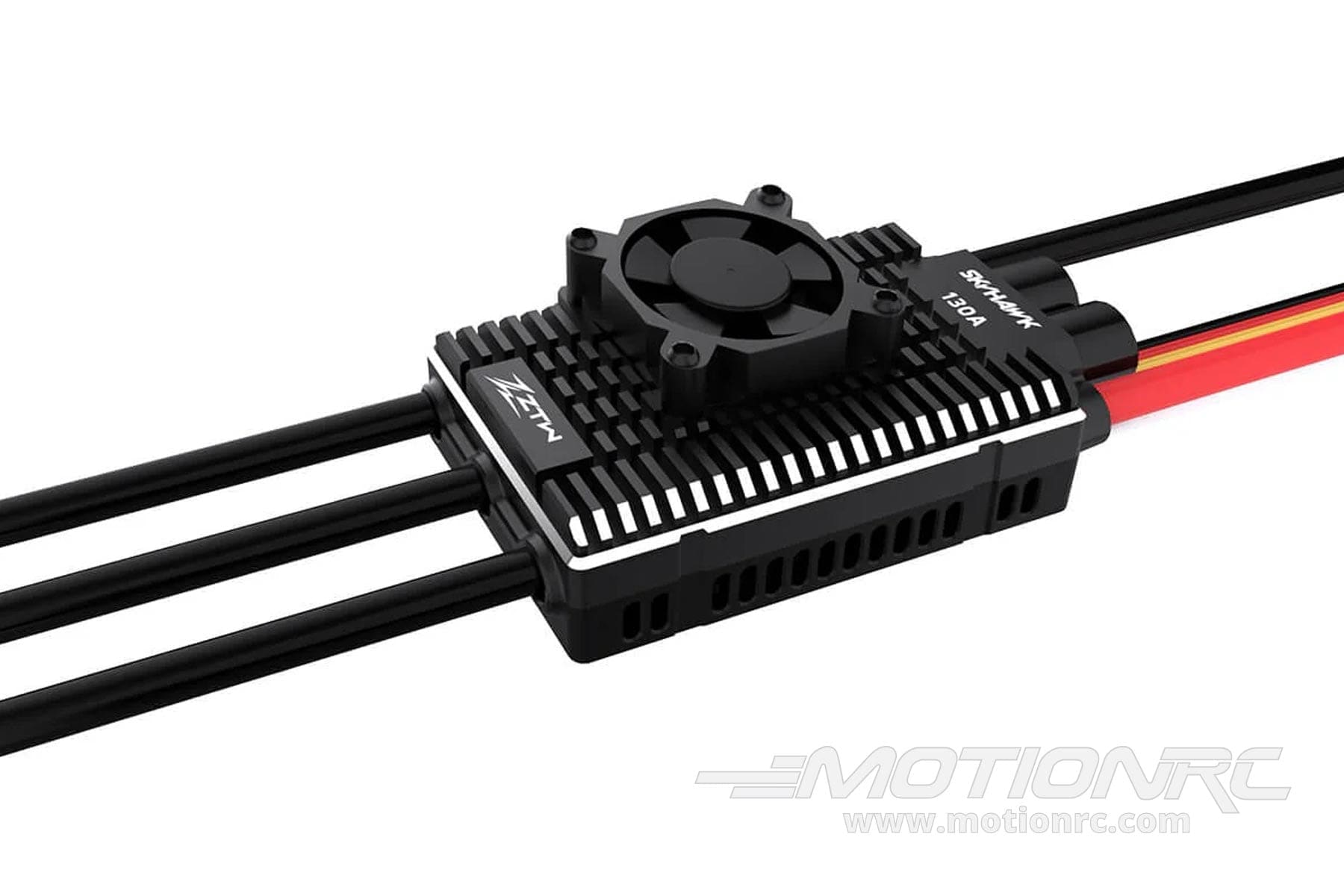

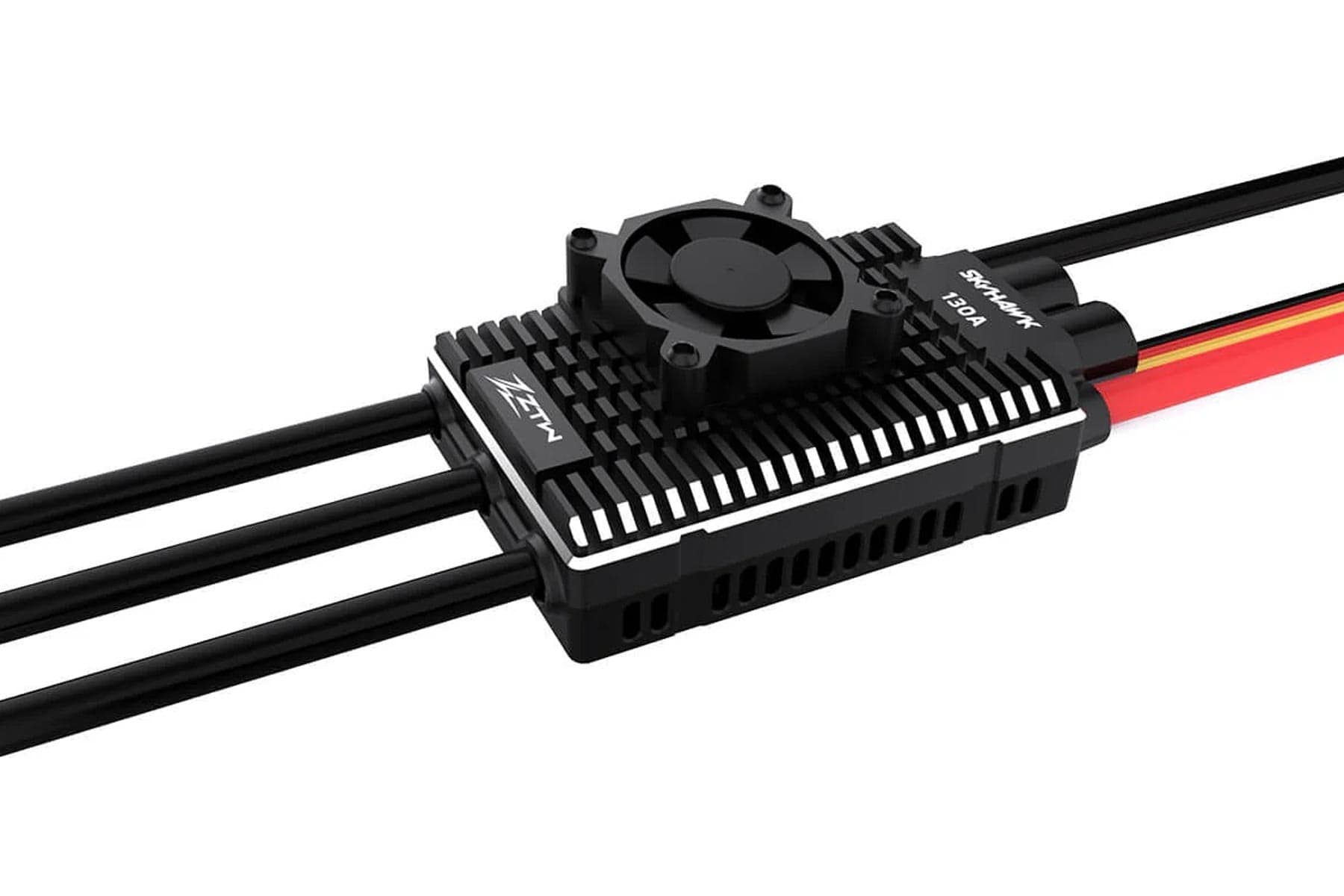

Skyhawk 130A ESC High Voltage with 10A SBEC from ZTW - ZTW4130311
This ZTW Skyhawk ESC is a premier quality brushless electronic speed control with an integrated switch-mode BEC; eliminating the need for a separate receiver battery, it conserves weight and simplifies wiring. Crafted with an aluminum heat sink body, it is lightweight and disperses heat efficiently. With a BEC specifically designed to support high-powered applications, you won't encounter any unexpected power shutdowns, while it can also handle multiple servo operations seen on big airplanes and 3D helicopters. If you're in search of a top-of-the-line, full-featured ESC at a great price, the Skyhawk is your best bet.
Features:
- Built-in cooling fan for efficient heat dissipation and reliable operation
- High-performance 32-bit M4 microprocessor running at 170MHz
- Data logging system such as temperature, voltage, current, and RPM
- SBEC Voltage Output 6.0, 7.4, and 8.4V
- High SBEC Current Output designed to meet your high current applications
- Power on protection, over-heat protection, low-voltage protection and lost-signal protection
- Super smooth and accurate throttle linearity
- Support for most motors, including high RPM motors
- Programmable motor timing
- Utilizes new MOSFET technology for low heat and high reliability
- Aluminum finned heat sink
- Programmable throttle input range
- ESC firmware and program settings can be updated via the Android or Apple mobile APP (bluetooth module sold separately)
Includes:
- ZTW Skyhawk 130A ESC High Voltage with 10A SBEC

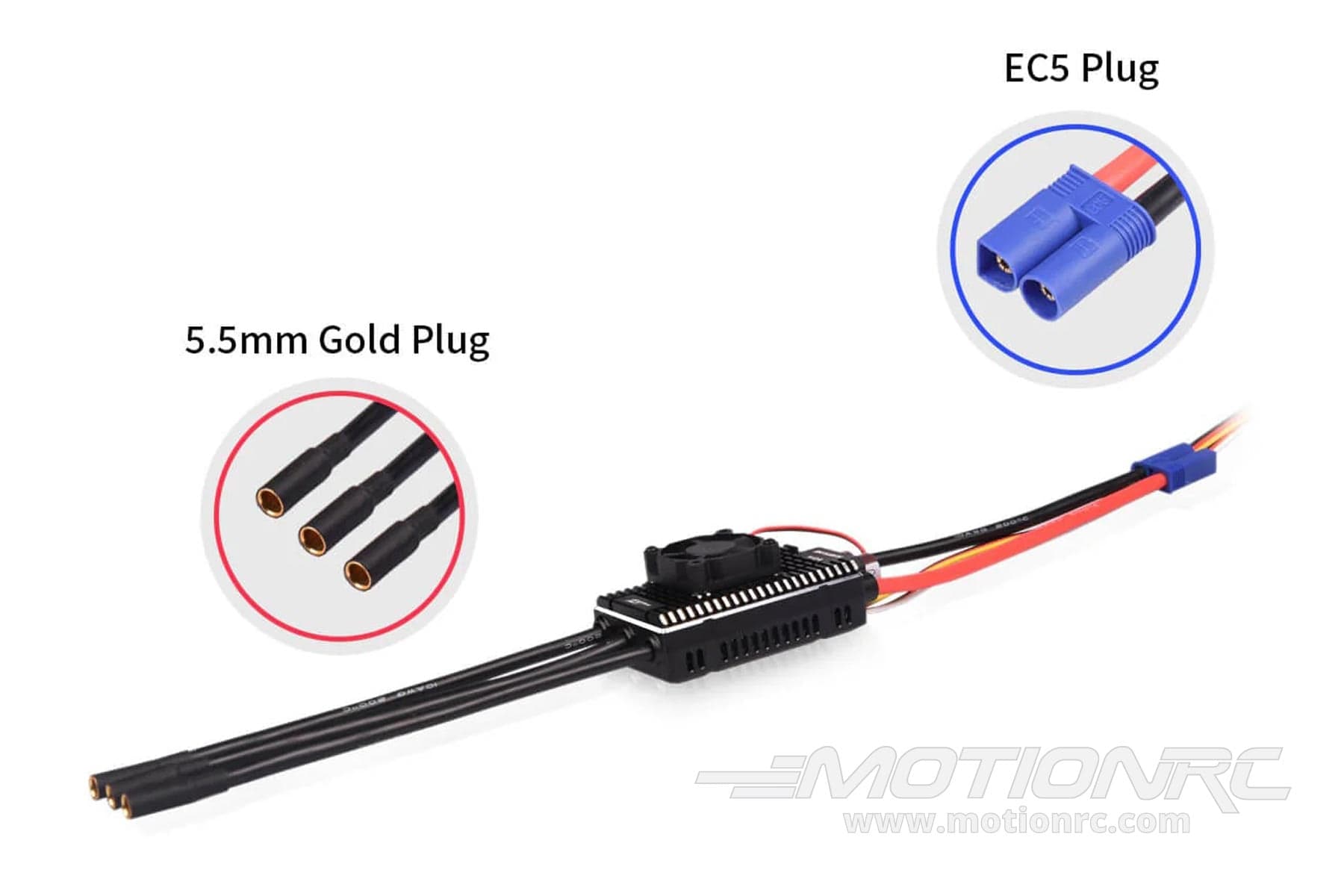

- Pre-installed EC5 Connector (power connector) and 5.5mm bullet (motor connector) for your convenience
- Instruction Manual
Optional:
- Bluetooth Programming Module - More Info
Product Specifications:
Length |
94mm / 3.70in |
Width |
48mm / 1.89in |
Height |
36mm / 1.41in |
Weight |
225g |
MAX Output |
Continuous Current 130A |
Burst Output |
150A |
Battery |
6-14S LiPo |
BEC Output |
6.0, 7.4, 8.4V Adjustable/10A |
Power Connector |
EC5 |
Motor Connector |
5.5mm bullets |
