Freewing Electronic Retract for 5.1mm Diameter Shafts - Type A E821

SKU: E821

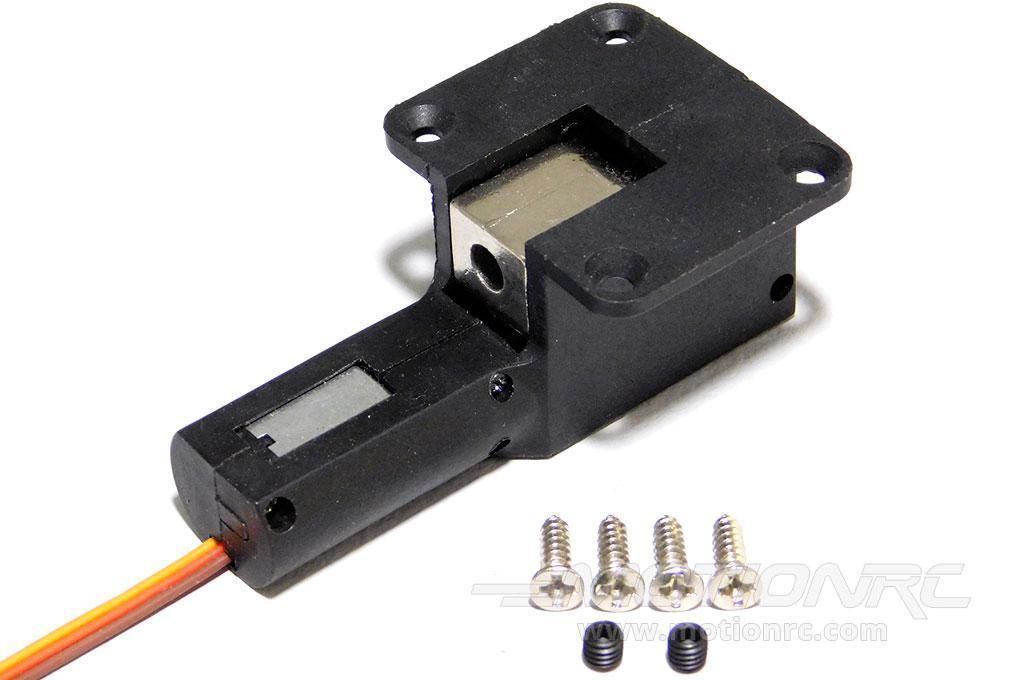

Freewing Electronic Main Gear Retract for 5.1mm Diameter Shafts - Type A

Regular price: ^€19¹⁹ (VAT inc.)
Sale price: ^€19¹⁹
Regular price: ^€0⁰⁰; (Save €-19.19)
Unit price: per

In stock

Only 3 left, Order soon!

Quantity must be 1 or more

Overview
Q&A

Electronic Main Gear Retract for 5.1mm Diameter Shafts - Type A

Specifications:

Body material: plastic
Trunion material: metal
Strut diameter: accepts shafts of 5.1mm in diameter

This retract is used on the main landing gear of the following Freewing aircraft:

90mm Yak-130

Product Specifications:

Gear Material	Nylon/ABS
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	1.8 sec @ 90 deg
Speed (6V)	1.6 sec @ 90 deg
Torque (4.8V)	5.0 kg/cm (70 oz/in)
Torque (6V)	5.5 kg/cm (76 oz/in)
Current Draw at Idle (4.8V)	100mA
Current Draw at Idle (6.0V)	130mA
Maximum Load Current (4.8V)	900mA
Maximum Load Current (6.0V)	1100mA
Current Draw Operating (No Load)	10mA
Dimensions (L x W x H)	66 x 38 x 32.2mm
Weight	43g (1.51oz)
Lead Length	360mm
