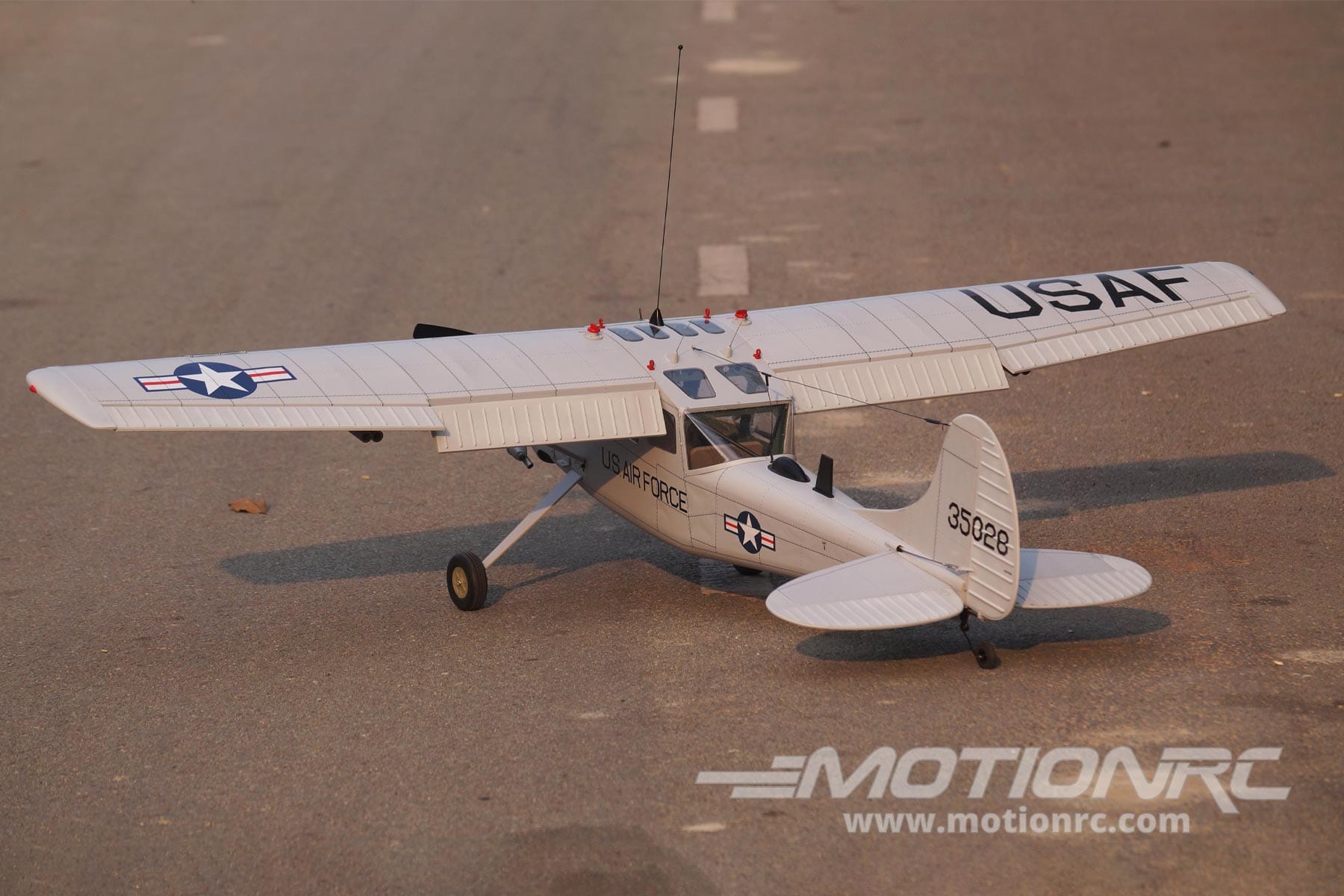

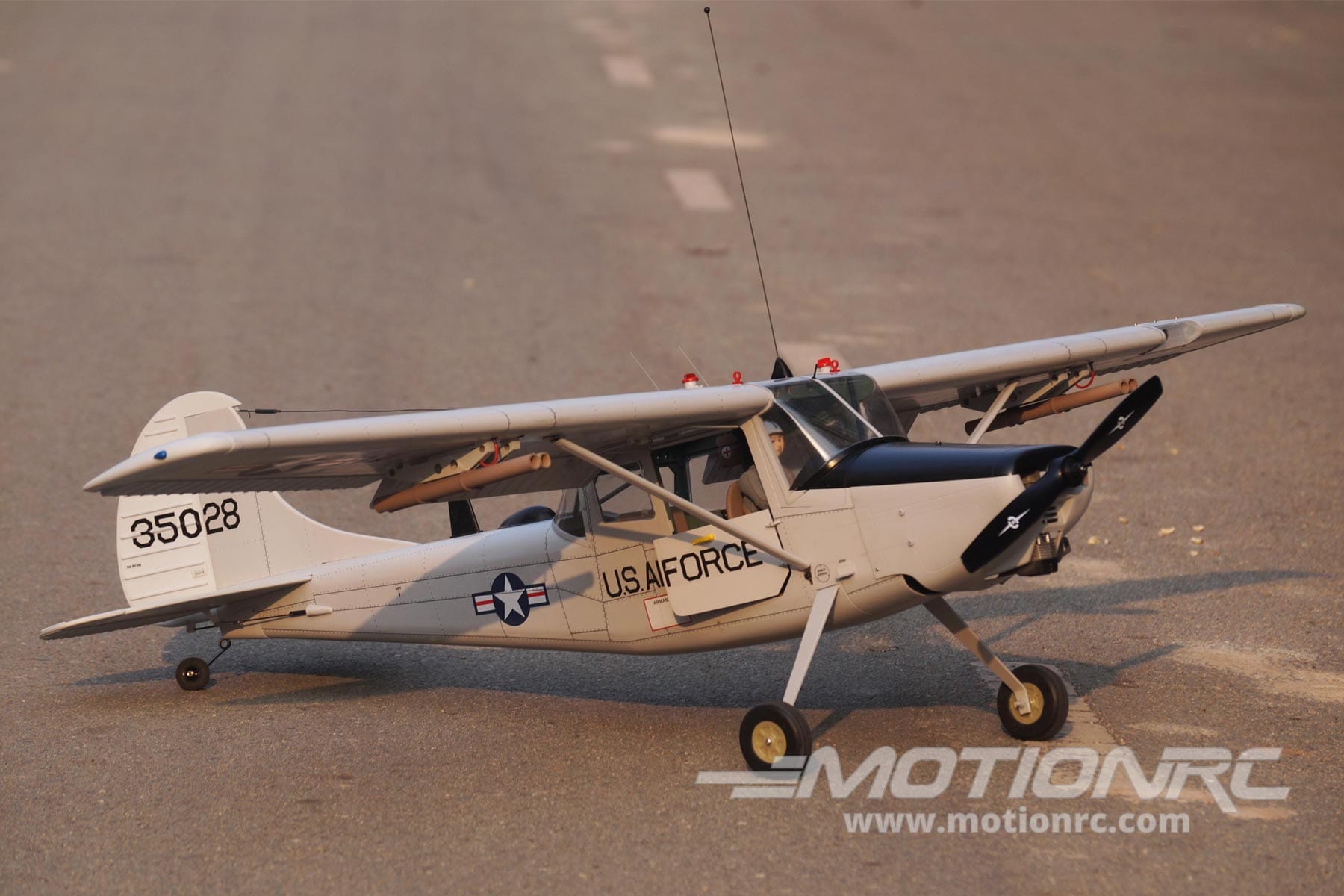

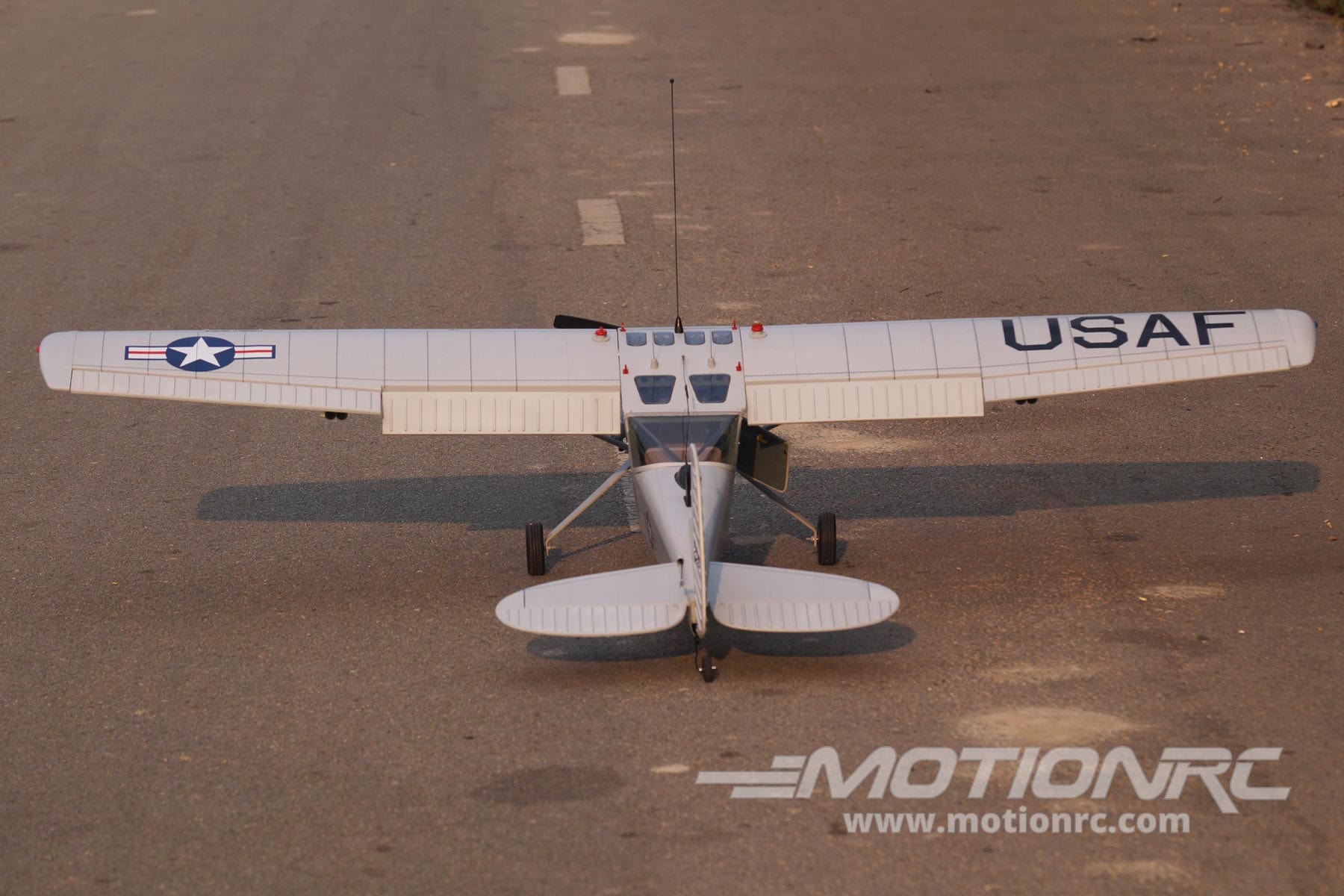

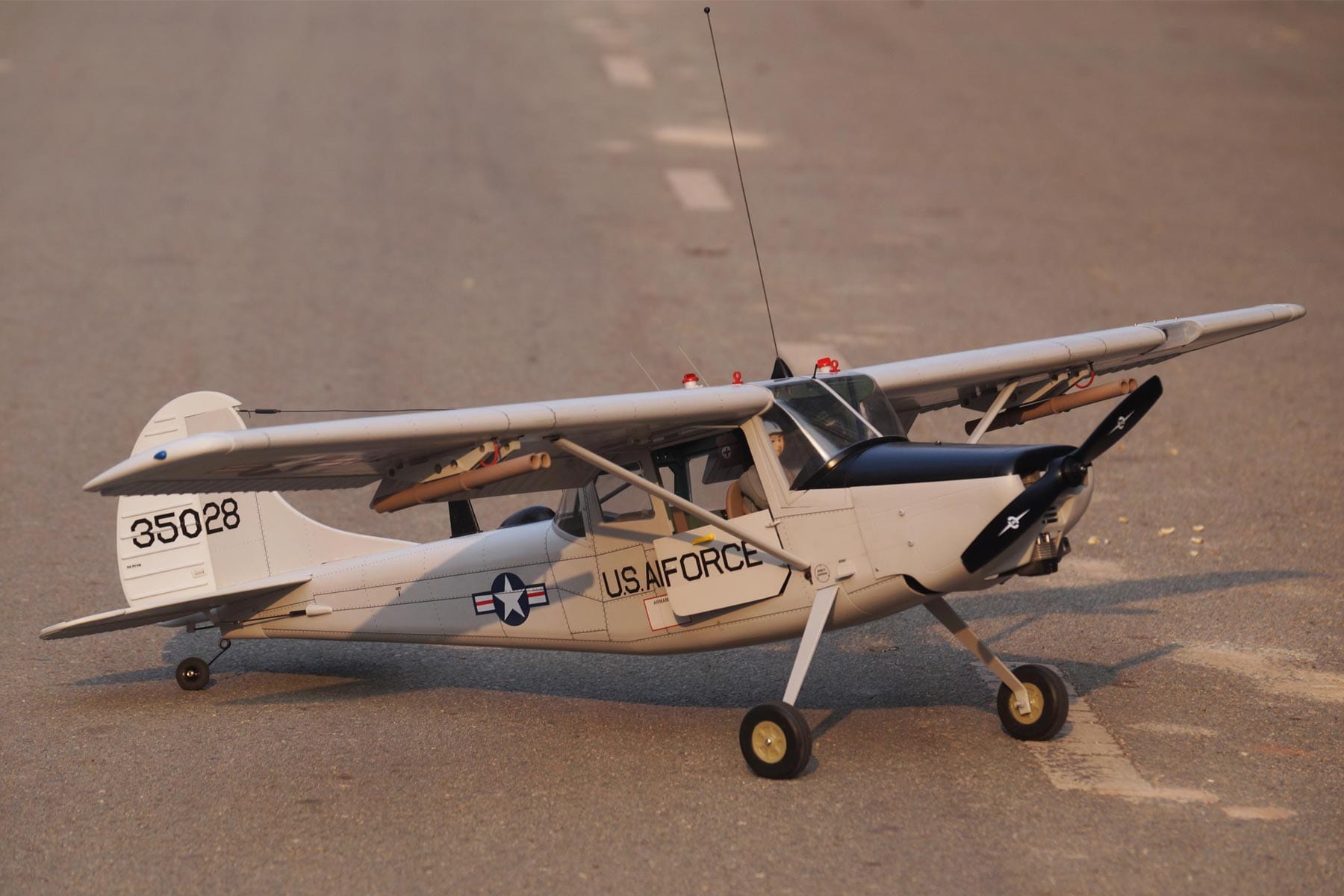

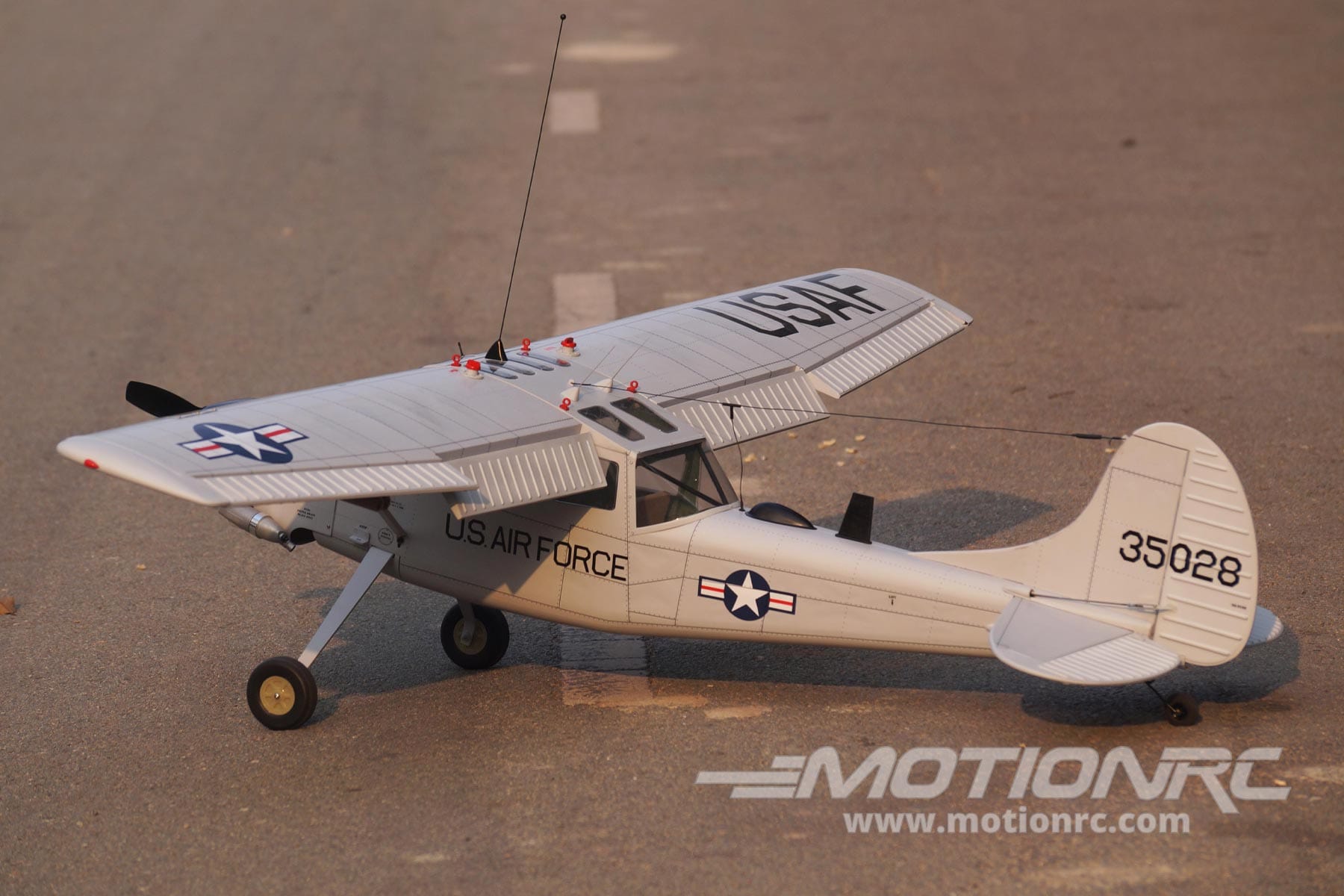

L-19 Bird Dog Grey 1720mm (67.8") Wingspan - ARF from Nexa - NXA1043-001
The L-19 Bird Dog is a liaison and observation aircraft and was the first all-metal fixed-wing aircraft in the United States Army. The name was chosen because it's role was to find the enemy and orbit overhead until artillery or attack planes could be brought to bear. While flying low to the battlefield, the pilot would observe the attack and radio for adjustments, in the manner of a bird dog used by game hunters. The Bird Dog had a lengthy military career in the U.S. and other countries.

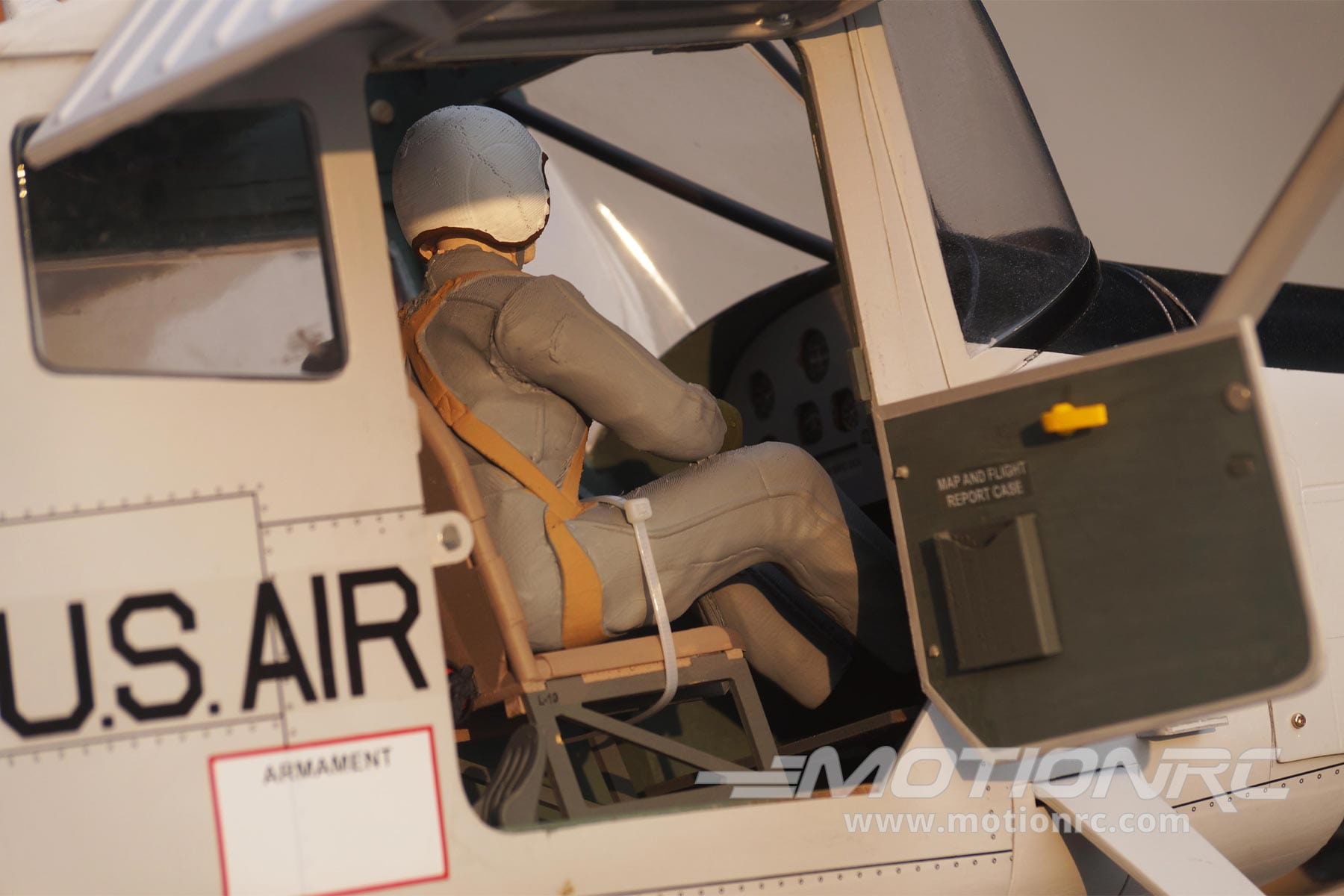

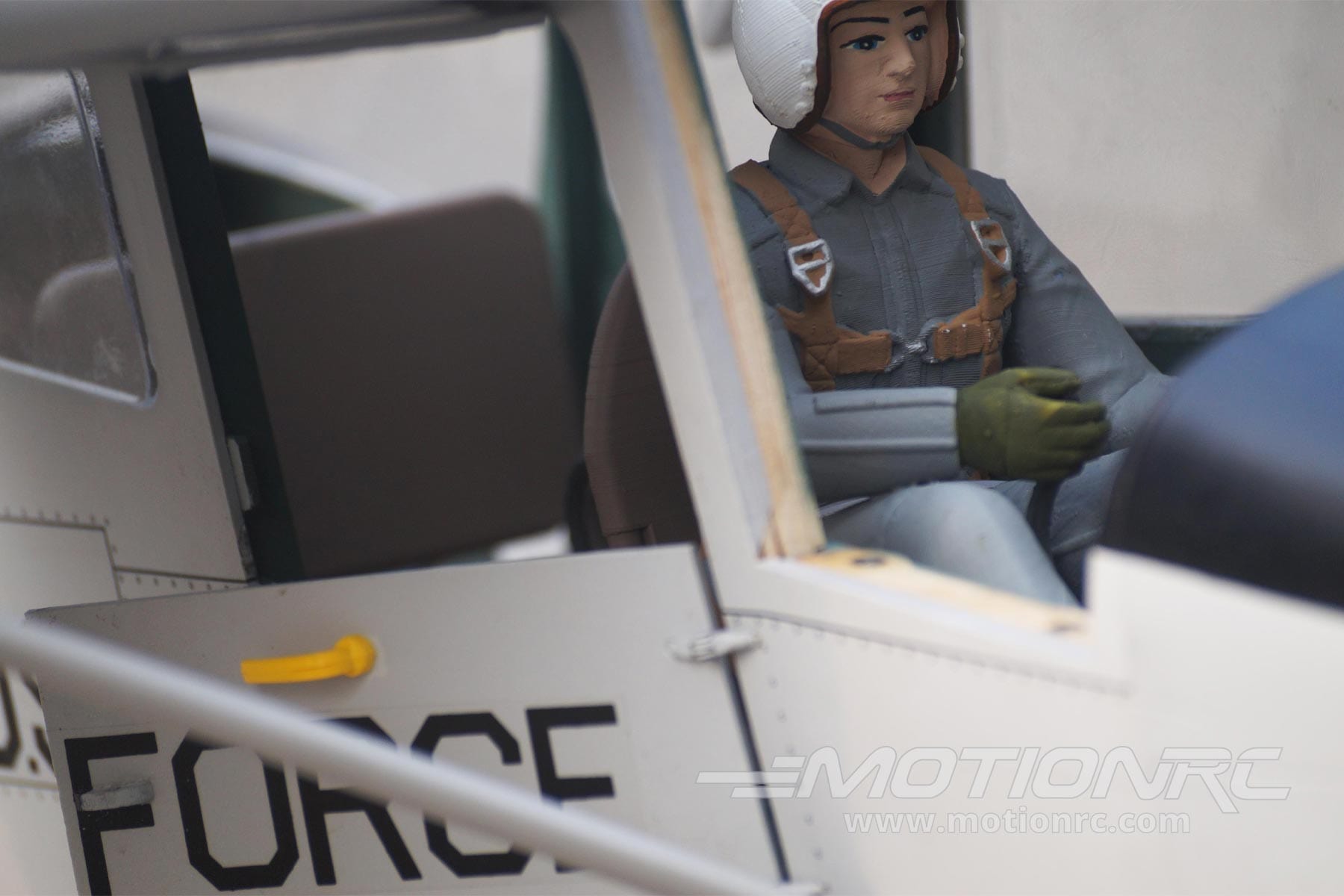

The brand new Nexa L-19 Bird Dog was recently developed and now available for the first time. This Nexa L-19 can be built with either electric or gas power and has a large hatch for easy access to either. This L-19 is absolutely full of exceptional scale details such as a working pilot door. Our words cannot do this plane justice. This L-19 would make a great addition to any hangar.
Visit the Official Nexa L-19 Bird Dog Grey 1720mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa L-19 Bird Dog Grey 1720mm (67.8") Wingspan - ARF
- Landing gear and wheels
Requires:
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
- 70 Amp brushless ESC - we recommend the ZTW Mantis 85A ESC with 5A SBEC
- 4x 45g standard servos for ailerons, elevator, and rudder - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (4 Servos)
- 2x 17g standard servos for flaps - we recommend Hitec HS-82MG Metal Gear Micro Servo Airplane Multi-Pack (2 Servos)
- 4 Cell 14.8V 4500 - 5000 mAh LiPo Batteries - we recommend the Admiral 5000mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- Electric propeller - we recommend the APC 13x8 Thin Electric Propeller - Black
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Gas Requires:

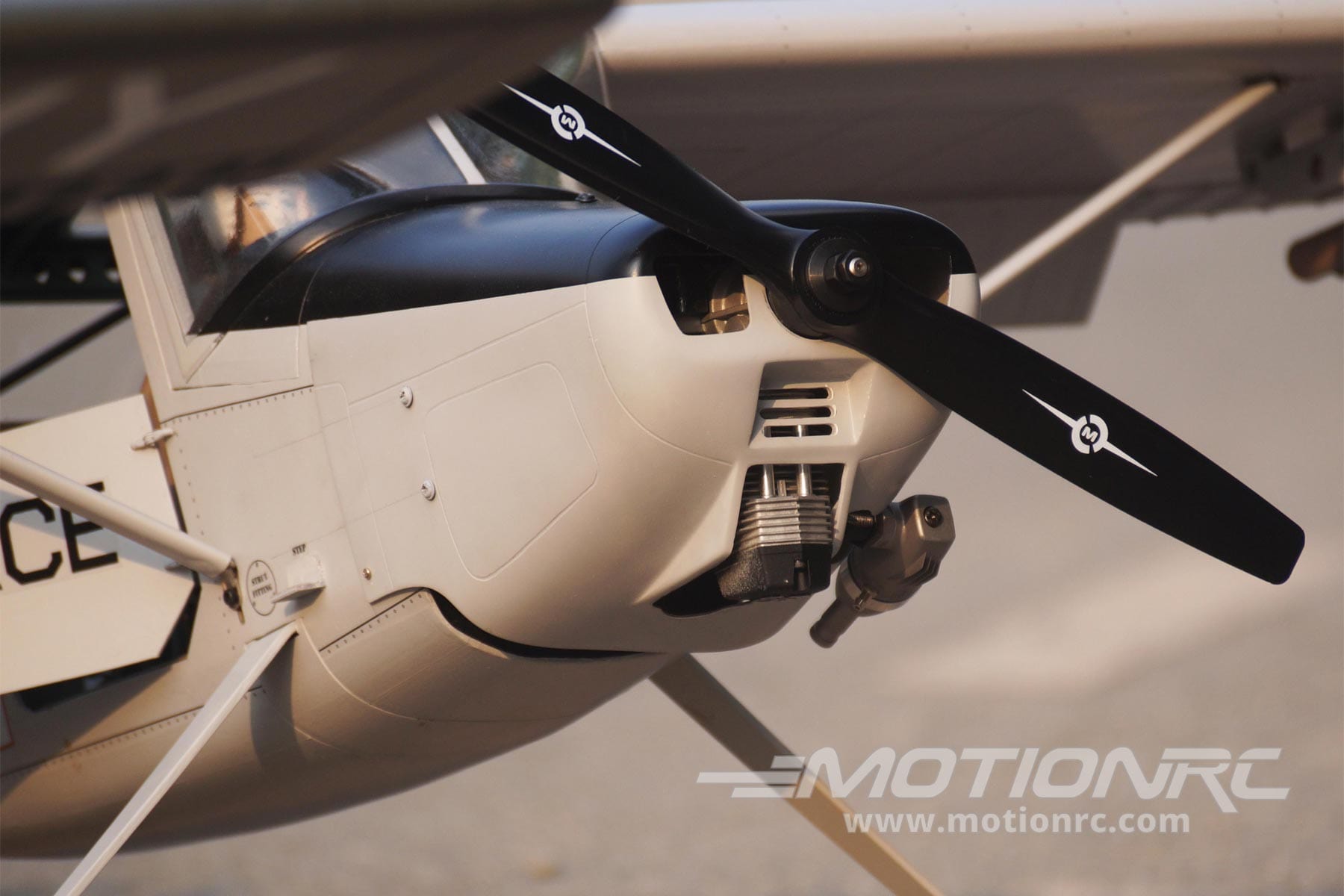

- 2-stroke engine - we recommend the NGH GT9 Pro 9cc Two-Stroke Engine
- 2-blade gas propeller - we recommend the APC 12x6 Gas Propeller
- Silicone fuel tube
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/6.5 |
Wingspan |
1720mm / 67.8in |
Length |
1190mm /46.9in |
Weight |
3600g / 126.98oz |
CG (Center of Gravity) |
68mm from the leading edge of the wing's root |
Power System |
400Kv or equivalent brushless outrunner motor for electric or 2-stroke for gas (required) |
Electronic Speed Control |
70A (required) |
Propeller / EDF |
13x8 2-blade for electric or 12x6 2-blade for gas (required) |
Servos |
|
Landing Gear |
Fixed (included) |
Required Battery |
4 Cell 14.8V 4500 - 5000mAh LiPo batteries (required) |
Required Radio |
6+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
